Guide to networking

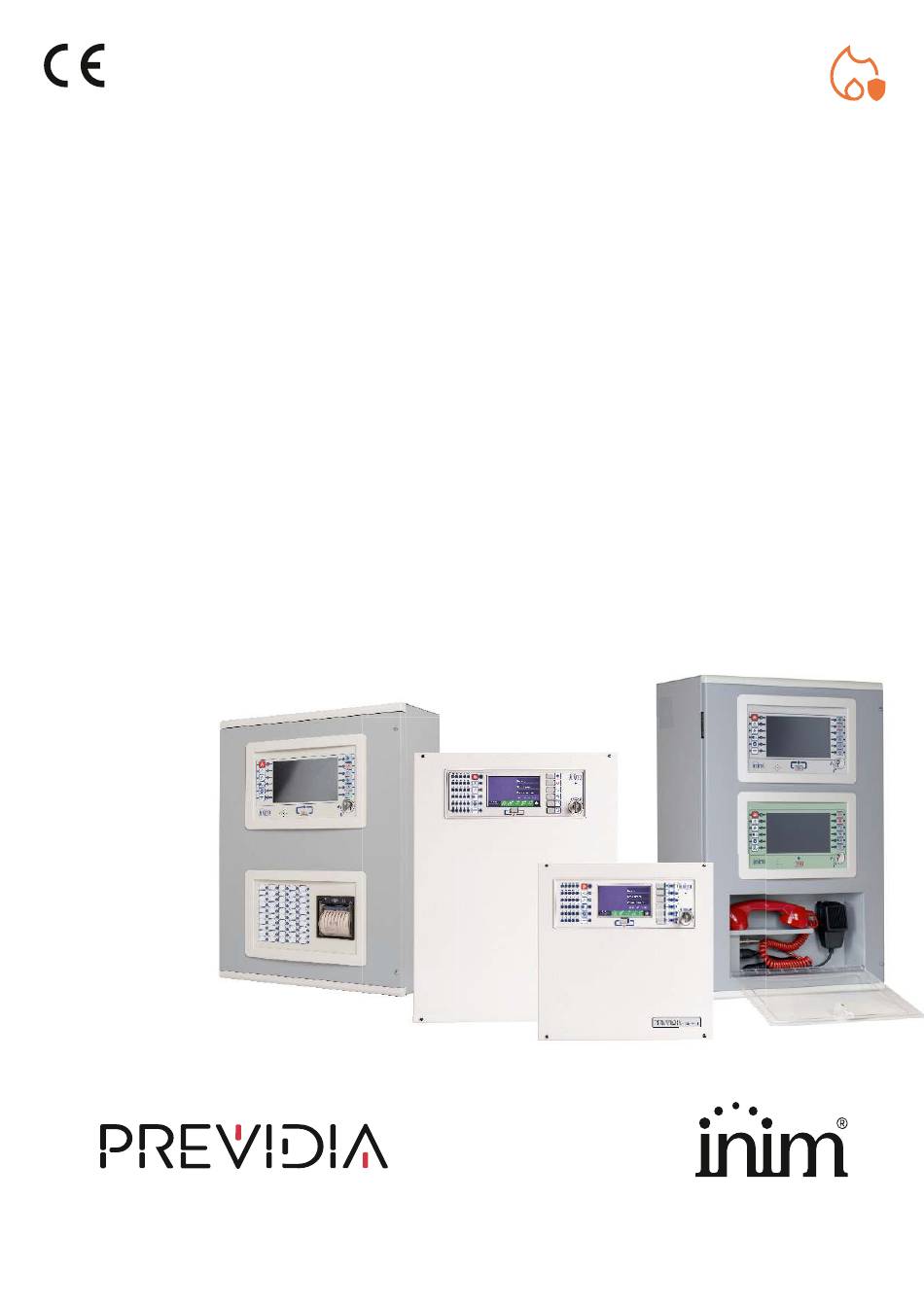

PREVIDIA
CONTROL PANELS FOR FIRE DETECTION AND ALARM,
FIRE EXTINCTION AND VOICE-EVACUATION SYSTEMS
GUIDE TO NETWORKING
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PREVIDIA Ultra and is the answer not in the manual?

Questions and answers

Summary of Contents for INIM PREVIDIA Ultra

  • Page 1 Guide to networking PREVIDIA CONTROL PANELS FOR FIRE DETECTION AND ALARM, FIRE EXTINCTION AND VOICE-EVACUATION SYSTEMS GUIDE TO NETWORKING...
  • Page 2: Warranty

    In no case can INIM Electronics s.r.l. be held responsible or liable by the buyer or any other person for any loss or damage, direct or indirect, consequential or incidental.
  • Page 3: Table Of Contents

    Guide to networking Table of contents Warranty.......................... 2 Limited Warranty ......................2 Copyright........................2 Table of contents ......................3 Chapter 1 General information ....................5 Manufacturer's details ........................5 About this manual ..........................5 Graphic conventions 5 Chapter 2 Introduction to networking ..................6 Network connection mode......................6 Chapter 3 The Hornet+ and IDANet networks ................8...
  • Page 4 Fire detection and extinguishing system Table of contents...
  • Page 5: Chapter 1 General Information

    E-mail: info@inim.it Web: www.inim.it The personnel authorized by the manufacturer to repair or replace the parts of this system, hold authorization to work only on devices marketed under the INIM Electronics brand. About this manual Manual code: DCMNINE0PREVIDIA Revision: 1.50 This manual describes the procedures for the configuration, commissioning and maintenance of the Previdia fire- detection system.
  • Page 6: Chapter 2 Introduction To Networking

    “cluster”. Connection via a IDANet network Through the IDANet network, Previdia Ultra control panels can be connected in a ring via a CAT5 ethernet cable (up to 100m) or optical fiber (by means of an appropriate SFP module depending on the type of fiber used).
  • Page 7 Guide to networking Connection based on TCP/IP Use of an Ethernet connection, based on TCP/IP protocol, as the cluster-interconnect allows you to build up to 20 clusters. Internet A cluster can be made up of a single Previdia control panel or an FPMCPU module configured as a repeater panel.
  • Page 8: Chapter 3 The Hornet+ And Idanet Networks

    Fire detection and extinguishing system Chapter 3 The Hornet+ and IDANet networks The Hornet+ network The connection of several control panels in Hornet+ network is based on an RS485 network, which must be structured in ring topology in order to guarantee the appropriate fault tolerance along the cable lines. Each Previdia Max or Ultra control panel connected in Hornet+ network must be equipped with an IFMNET module.
  • Page 9 Guide to networking IFMNET Previdia Compact/Micro Previdia Compact/Micro Port-A Port-B Repeater Previdia Compact/Micro PREVIDIA-C-REP Note: It is necessary to use an external power supply for the PREVIDIA-C-REP repeater if there are 3 or more repeaters in series, as the power supply is not distributed from port A to B and vice versa. Repeater Repeater Repeater...
  • Page 10: 3.1.1 Use Of Optic Fiber Connections

    Previdia Compact/Micro In cases where a fiber optic cable is used over long BUS lengths, it is necessary to use a RS485/fiber converter (non-INIM brand product). The module IFMNET has a 12V output (paragraph 3.1 - [C]) for the power supply to the converter in use.
  • Page 11: Supervision Of The Network

    Guide to networking The module has two ports (“PORT-A” and “PORT-B”) for making the ring connection. For each of the two ports, an RJ45 socket is available for connection via UTP CAT5 cable (Ethernet protocol) or alternatively a socket for an SFP fiber optic converter for making the fiber optic connection.
  • Page 12: Commissioning Of An Idanet Network

    Fire detection and extinguishing system for Previdia Compact/Micro: Access to control panel program- ming and press the Configuration button. In the configuration section, touch the net- working programming access icon. for PREVIDIA-C-REP: Access to repeater programming and press the Configuration button. In the configuration section, touch the repeater programming access icon.
  • Page 13: Connecting To A Pc

    When a Hornet+ address is assigned to a Previdia Ultra control panel, the IFAMIDANET module activates the blue LED to indicate that the control panel is in the cluster and has started to communicate with the other control panels. The LEDs on the IFAMIDANET module indicate activity on the two communication channels.
  • Page 14: Sharing The Events On The Network

    Fire detection and extinguishing system 3. Navigate to the visualization of the system at network layer using the appropriate button ([B]). 4. Click-on the Read button ([E]) to read the system configuration. Once the Read procedure ends, the entire control-panel network will be shown. The control panel the PC connected to for the read operation, and to which the "gateway"...
  • Page 15: Activation Of Groups Of Outputs In The Network

    Guide to networking • control panel in the Hornet+ network • zone of origin • typology In order to setup a filter, after selecting it, you must first indicate its composing events, by enabling the factors that characterize it, that is the type and origin. The events coming from the network are acknowledged and shown on the display only when they satisfy all the enabled factors of at least one of the 5 filters.
  • Page 16: Idanet And Hornet+ In The Same Cluster

    Fire detection and extinguishing system ]List of devices that activate the List of groups of outputs selected group Programming parameters of List of devices activated by the the selected group selected group Once one of the Repeat shared group setting options is activated, available in the parameters section of the selected group ([B]), the group programmed in this way will be the same for all the control panels in the single cluster or all the clusters connected in the network.
  • Page 17 Guide to networking Attention: There must be only one IDANet ring and one Hornet+ ring: Multiple rings of the same technology are not allowed. The cluster operates effectively as a single network, therefore, each of its nodes must have a unique address. via FPMCPU: As far as data sharing is concerned, it should be noted that from an FPMCPU module it is possible to navigate on remote nodes and manage the various objects relating to the FPMCPU module.
  • Page 18: Chapter 4 Tcp/Ip

    Limits and precautions The connection of several clusters via the Ethernet network is based on hardware that is not supplied by INIM Electronics. Therefore, if the connection in the network is based on TCP/IP, it is the sole responsibility of the project manager who designs the installation to evaluate the use made of it (supervision, display of cross events, cross activations, etc.).
  • Page 19: Sharing The Events On The Tcp/Ip Network

    Guide to networking 5. Select “IP” as the communication channel and enter the address Settings of the first gateway on the list ([C]). Communication Various Update 6. By means of the Check connection button ([D]) it is possible to Cluster test the communication in order to verify that the TCP/IP Communication channel cluster: Cluster 1 Control panel 1...
  • Page 20 Fire detection and extinguishing system associated with the group will activate regardless of control panel they are connected to. In the same way, the devices of any network control panel can activate the shared group. TCP/IP...
  • Page 21: Chapter 5 Repeater Based On Tcp/Ip

    Guide to networking Chapter 5 Repeater based on TCP/IP If you wish to configure a repeater of a Previdia control panel with fire functions on a TCP-IP network, it is necessary to have an FPMCPU module for Previdia Max and Ultra control panels and a PREVIDIA-C-REP module for Previdia Compact, Micro, Max and Ultra control panels.
  • Page 22 Fire detection and extinguishing system Via Previdia/Studio To configure an IP repeater, it is necessary to start from a solution that already exists. 1.0.0.0 01/01/2023 18:23 Admin System Add module Cluster Cancel Go up to the “System” section [A] and click-on Settings the Add button [B].
  • Page 23 Guide to networking At this point you must associate the repeater with a control panel. 1.0.0.0 01/01/2023 18:23 Admin System > Panel display LOGIC DISPLAY CAMERAS Repeater label Repeater xyz Reference cluster Cluster xyz Reference Control panel Control panel xyz Instant alarm on second prealarm 6.
  • Page 24 Fire detection and extinguishing system Inim Electronics S.r.l. ISO 9001 Quality Management Certificate issued by BSI with number FM530352 Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP), Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.it _ www.inim.it...
