Danger:
In order to allow the ring to operate properly, the Port-B and Alarm-B terminals must be
connected to the successive Port-A and Alarm-A terminals.
The SmartLoop/2L package includes:
• 4 anchor screws
• 4 spacers
5.1.3 The SmartLAN board
The SmartLAN board connects to any Ethernet network and allows remote access (via Internet) to the fire
control system (allows connection to all the fire control panels in the token-ring network).
• SmartLAN – This board can send detailed e-mails for each event and real-time event reports over TCP/
IP. It provides a web server for web-based access to the system via browser (Internet Explorer, Firefox,
Opera, etc.).
This board allows you to carry out remote programming operations (upload/download), manage the
system via INIM's SmartLook software application and also manage Dynamic DNS.
• SmartLAN/SF – This board allows you to carry out remote programming operations (upload/download),
manage the system via INIM's SmartLook software application.
To access the configuration phase of the SmartLAN board, the default IP address is: 192.168.1.92
B
J
G
C

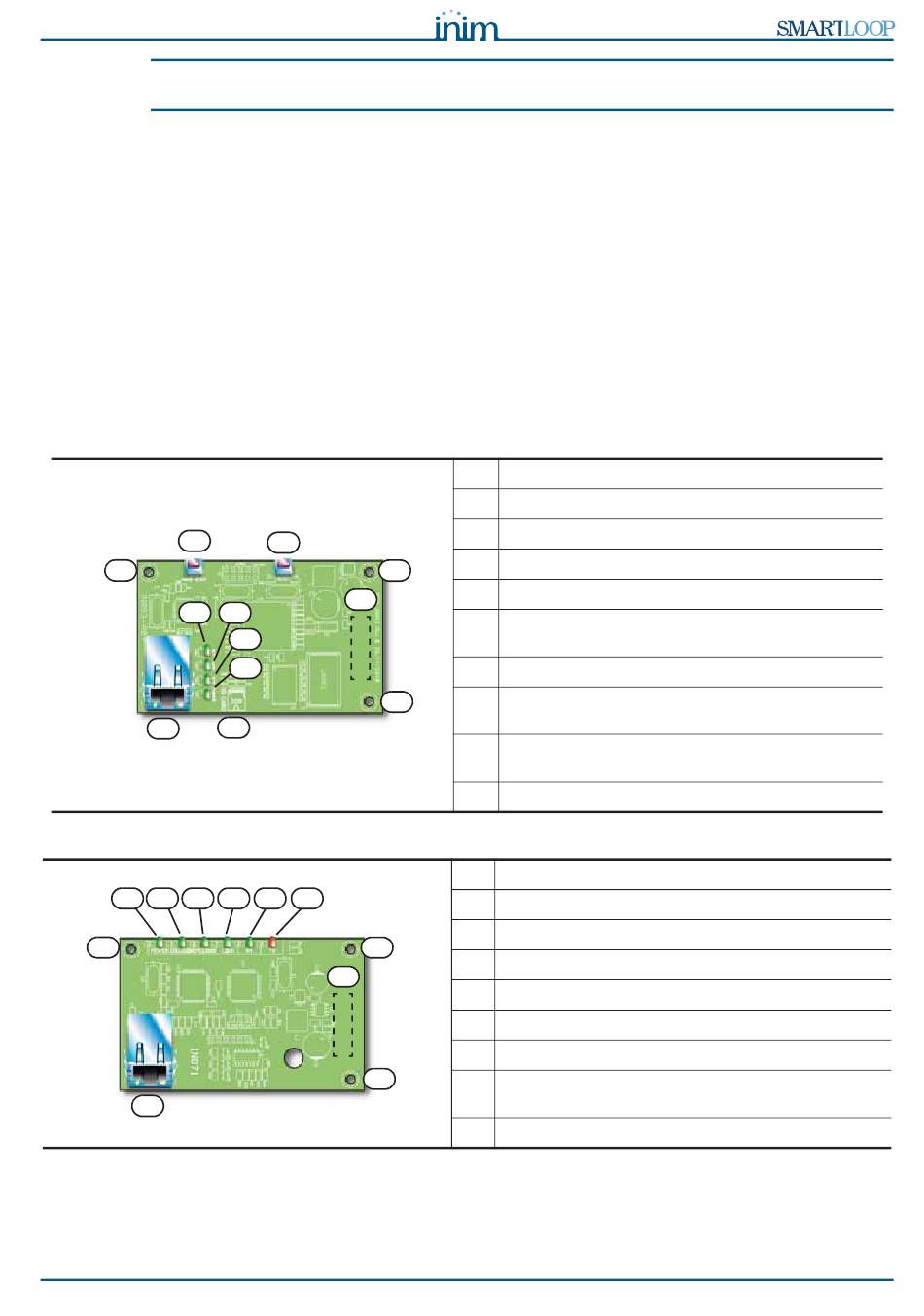

Figure 10 - The SmartLAN board
B C D
I
A
Figure 11 - The SmartLAN/SF board
Each SmartLAN or SmartLAN/SF board comes with:
• 3 anchor screws
• 3 spacers
Accessory devices
A
J
I
F
E
D
J
H
E F G
I
H
I
[A] Microprocessor reset button
[B] Programming reset button
[C] Ethernet port
[D] Power-supply indicator LED
[E] Motherboard communication LED (SYS)
[F] LINK LED (indicates currently active Ethernet
communication)
[G] ACT LED (indicates data transmission via Ethernet)
[H] Housing for the SD-card for e-mail attachment
storage (located on the reverse side of the board)
[I] Interface to motherboard plug (located on the
reverse side of the board)
[J] Screw locations
[A] Ethernet port
[B] Power supply LED
[C] Collision LED (Network collision)
[D] Connection speed LED @ 100Mbp
[E] Collision LED (Network collision)
[F] Packet reception via RS485 BUS LED
[G] Packet reception via RS485 BUS LED
[H] Interface to motherboard plug (located on the
reverse side of the board)
[I] Screw locations
