Installation manual
E
B A
E

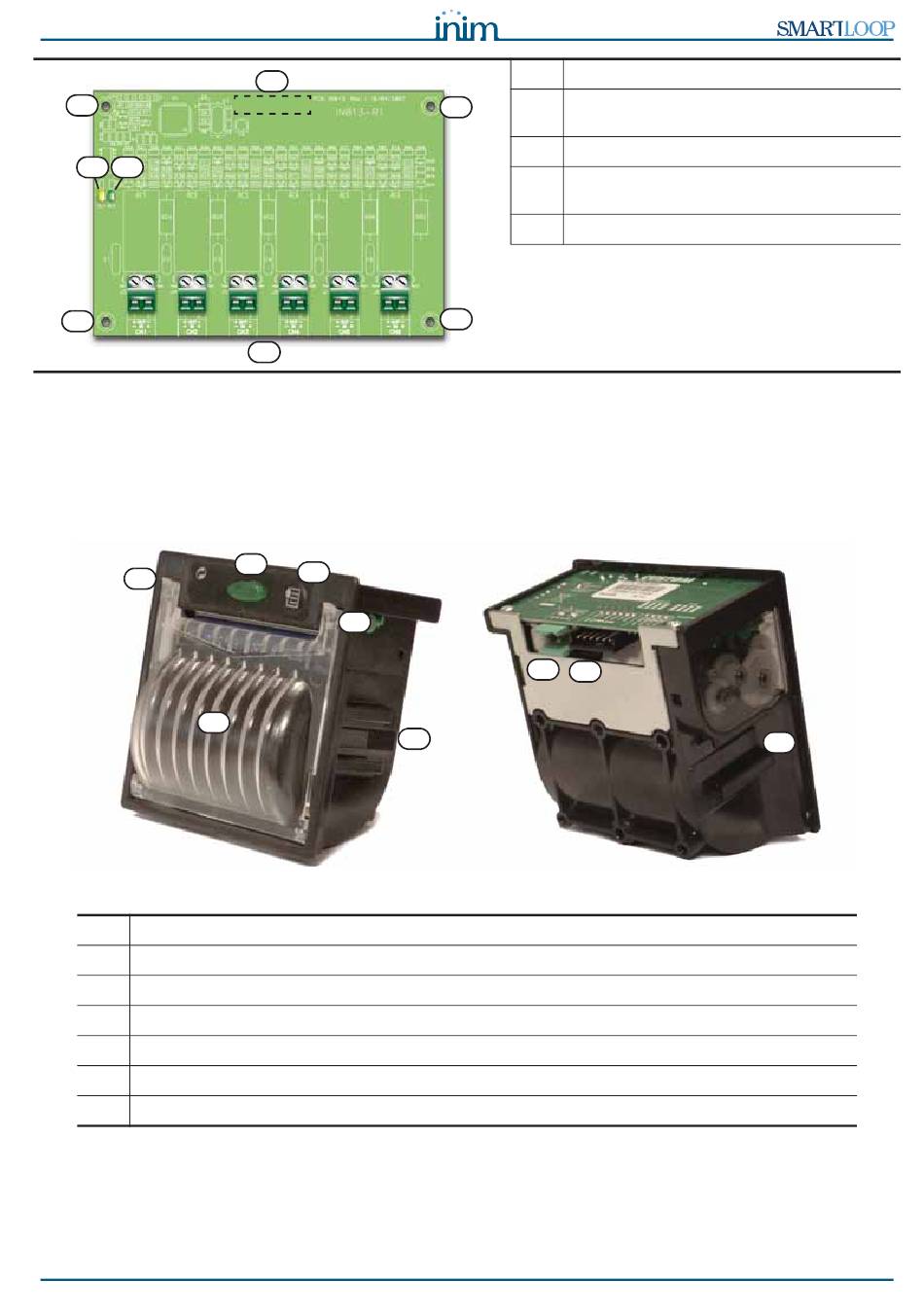

Figure 13 - The SmartLoop/PSTN board
5.2

SmartLoop/PRN Printer

The SmartLoop/PRN thermal printer module uses 82mm thermal roll paper and can be connected directly
to the motherboard (connector cable included). It provides a continuous real-time printout of events and/
or date to date enquiry printouts. It can also printout complete reports for each separate loop, containing
information related to the status of each detector/module (dust accumulation, loop communication quality,
real-time values, etc.).
D
C
Figure 14 - The SmartLoop/PRN module
[A] Status LED and button to open the paper-roll housing
[B] Paper roll button
[C] Paper roll housing
[D] Paper-roll housing fastener
[E] Guide for anchor hook to the panel
[F] Power supply terminals (24V DC) to be connected to the red and black wires of the cable (included)
[G] Flat cable board to motherboard connector (included)
The SmartLoop/PRN module comes with:
• A cable for the connection to the motherboard
• Cable ties
• 2 hooks
• Paper roll
Accessory devices
D
C
A
B
D
E
[A] Green Activity LED
[B] Yellow Fault LED (fault on at least 1 of the 6
E
board channels)
[C] Input/Output terminals
[D] Interface to motherboard plug (located on
the reverse side of the board)
[E] Screw locations
E
F
G
E
