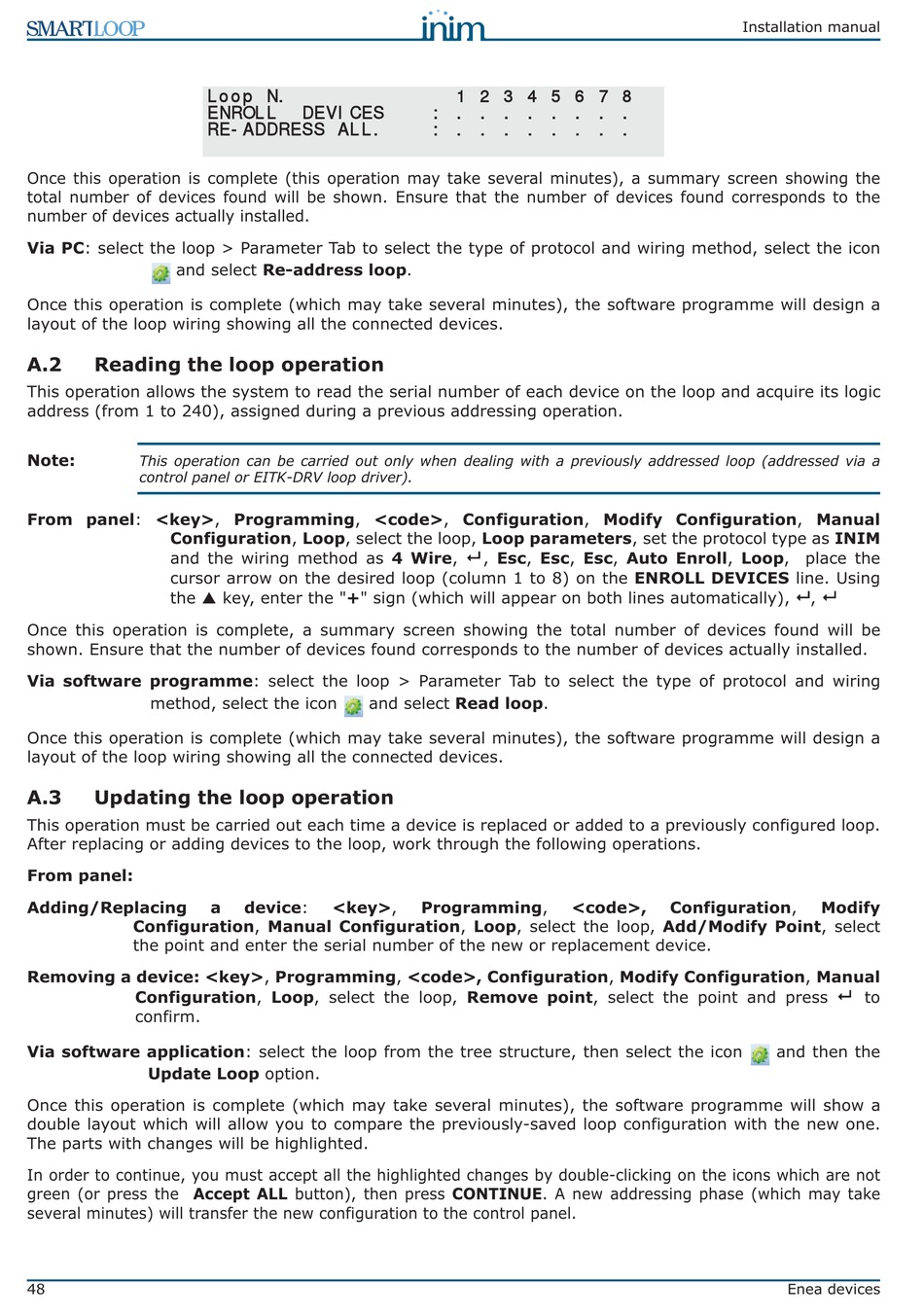

INIM SmartLoop Series Installation Manual page 48

Once this operation is complete (this operation may take several minutes), a summary screen showing the
total number of devices found will be shown. Ensure that the number of devices found corresponds to the
number of devices actually installed.
Via PC: select the loop > Parameter Tab to select the type of protocol and wiring method, select the icon
and select Re-address loop.
Once this operation is complete (which may take several minutes), the software programme will design a
layout of the loop wiring showing all the connected devices.
A.2 Reading the loop operation
This operation allows the system to read the serial number of each device on the loop and acquire its logic
address (from 1 to 240), assigned during a previous addressing operation.
Note:
This operation can be carried out only when dealing with a previously addressed loop (addressed via a
control panel or EITK-DRV loop driver).
From panel: <key>, Programming, <code>, Configuration, Modify Configuration, Manual
Configuration, Loop, select the loop, Loop parameters, set the protocol type as INIM
and the wiring method as 4 Wire,
cursor arrow on the desired loop (column 1 to 8) on the ENROLL DEVICES line. Using
the S key, enter the "+" sign (which will appear on both lines automatically),
Once this operation is complete, a summary screen showing the total number of devices found will be
shown. Ensure that the number of devices found corresponds to the number of devices actually installed.
Via software programme: select the loop > Parameter Tab to select the type of protocol and wiring
method, select the icon
Once this operation is complete (which may take several minutes), the software programme will design a
layout of the loop wiring showing all the connected devices.
A.3 Updating the loop operation
This operation must be carried out each time a device is replaced or added to a previously configured loop.
After replacing or adding devices to the loop, work through the following operations.
From panel:
Adding/Replacing
Configuration, Manual Configuration, Loop, select the loop, Add/Modify Point, select
the point and enter the serial number of the new or replacement device.
Removing a device: <key>, Programming, <code>, Configuration, Modify Configuration, Manual
Configuration, Loop, select the loop, Remove point, select the point and press
confirm.
Via software application: select the loop from the tree structure, then select the icon
Update Loop option.
Once this operation is complete (which may take several minutes), the software programme will show a
double layout which will allow you to compare the previously-saved loop configuration with the new one.
The parts with changes will be highlighted.
In order to continue, you must accept all the highlighted changes by double-clicking on the icons which are not
green (or press the Accept ALL button), then press CONTINUE. A new addressing phase (which may take
several minutes) will transfer the new configuration to the control panel.
48
Loop N.
ENROLL DEVICES
RE-ADDRESS ALL.
and select Read loop.
a device: <key>,
1 2 3 4 5 6 7 8
: . . . . . . . .
: . . . . . . . .

, Esc, Esc, Esc, Auto Enroll, Loop, place the
Programming, <code>,
Installation manual

,
Configuration, Modify

and then the
Enea devices
to
