Installation manual

Accessory devices

5.1

Attachment boards

The motherboards accommodates the following attachment boards:

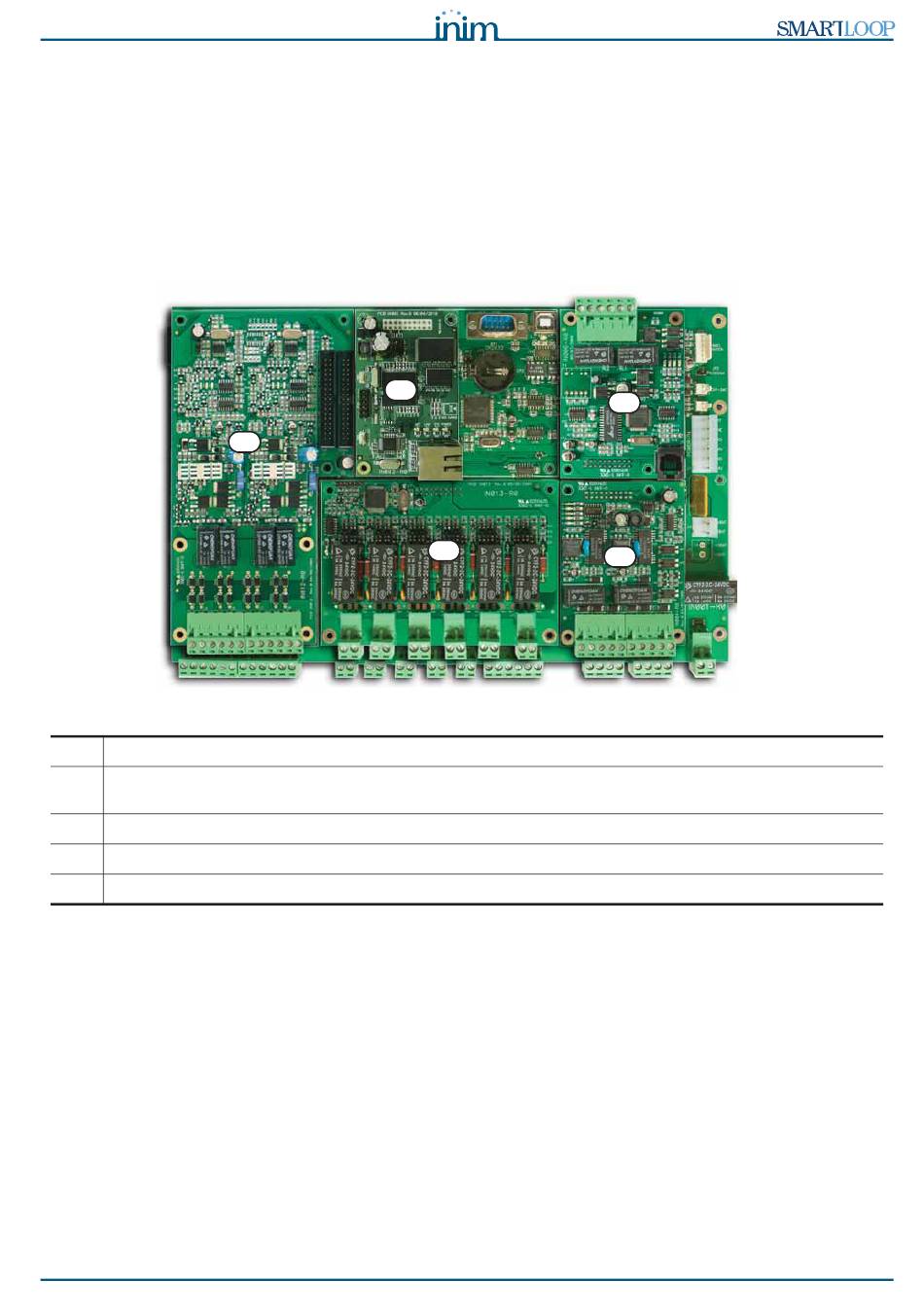

Figure 7 - The motherboard accessorized with attachment boards
[A] Up to 3 SmartLoop/2L loop expansion boards (2080 expandable models only)
[B] 1 SmartLoop/NET network board for the creation of a control panel network environment (Hornet
technology)
[C] 1 SmartLAN LAN board for connection to an Ethernet (Janus technology)
[D] 1 SmartLoop/PSTN telephone board for PSTN land line connection
[E] 1 SmartLoop/INOUT input/ouput expansion board (provides 6 Inputs/Outputs)
SmartLoop/P models also accommodate the SmartLoop/PRN thermal printer (to be located on the
frontplate). This device provides real-time printouts and enquiry printout.
Refer to the respective paragraphs for the board descriptions.
5.1.1 The SmartLoop/2L board
All expandable SmartLoop control panels have 2 on-board loops expandable to 8 by means of 3
SmartLoop/2L expansion boards. The non-expandable SmartLoop 1010 version have 1 loop only.
The loops accommodate either 126 or 240 fire detection/signalling devices, depending on the selected
protocol (refer to Appendix A, Appendix B and Appendix C).
Due to electrical incompatibility, different brand devices (i.e. devices using different protocols) cannot co-
exist on the same loop. However, the loops can be programmed separately in such way as to allow the
system to manage different brand devices on different loops.
Accessory devices
C
A
E
Chapter 5
D
B
