Installation manual
7.6

AUX output

The AUX output (paragraph 4.2 - [U]) provides a 24 V (max 1.3 A) power supply output for external loads
(ancillary devices).
This output is short-circuit protected by a resettable fuse. In the event of a short-circuit, the panel will
signal an AUX output fault.
7.7

AUX-R output

The AUX-R output (paragraph 4.2 - [V]) supplies a 24 V (max. 1.3 A) power supply (which is removed
temporarily during control panel reset) to external loads (ancillary devices) that must switch off in order to
reset (e.g. beam detectors).
This output is short-circuit protected by a resettable fuse. In the event of short-circuit, the panel will signal
an AUX-R output fault.
7.8

Alarm relay

The ALARM RELAY provides (paragraph 4.2 - [X]) a voltage-free contact which can switch loads of up to
5A (max. 30 V). This relay toggles its status in the event of panel fault.
Attention:
In order to validate the IMQ-SECURITY SYSTEMS certification, this output should not be used
as a type C and/or E and/or J and/or G output (EN 54-1), therefore, it must not be used to
command fire alarm devices and/or fire alarm transmission devices.
7.9

Fault relay

The FAULT RELAY provides (paragraph 4.2 - [Y]) a voltage-free contact which can switch loads of up to
5A (max. 30 V). This relay toggles its status in the event of panel fault.
Attention:
In order to validate the IMQ-SECURITY SYSTEMS certification, this output should not be used as a
type J output (EN 54-1), therefore, it must not be used to command Fault transmission devices.

7.10 Connecting devices to the RS485 BUS

The RS485 BUS accepts up to 14 repeater panels, 4 power stations and 4 SmartLine-EXT conventional
extinction stations.

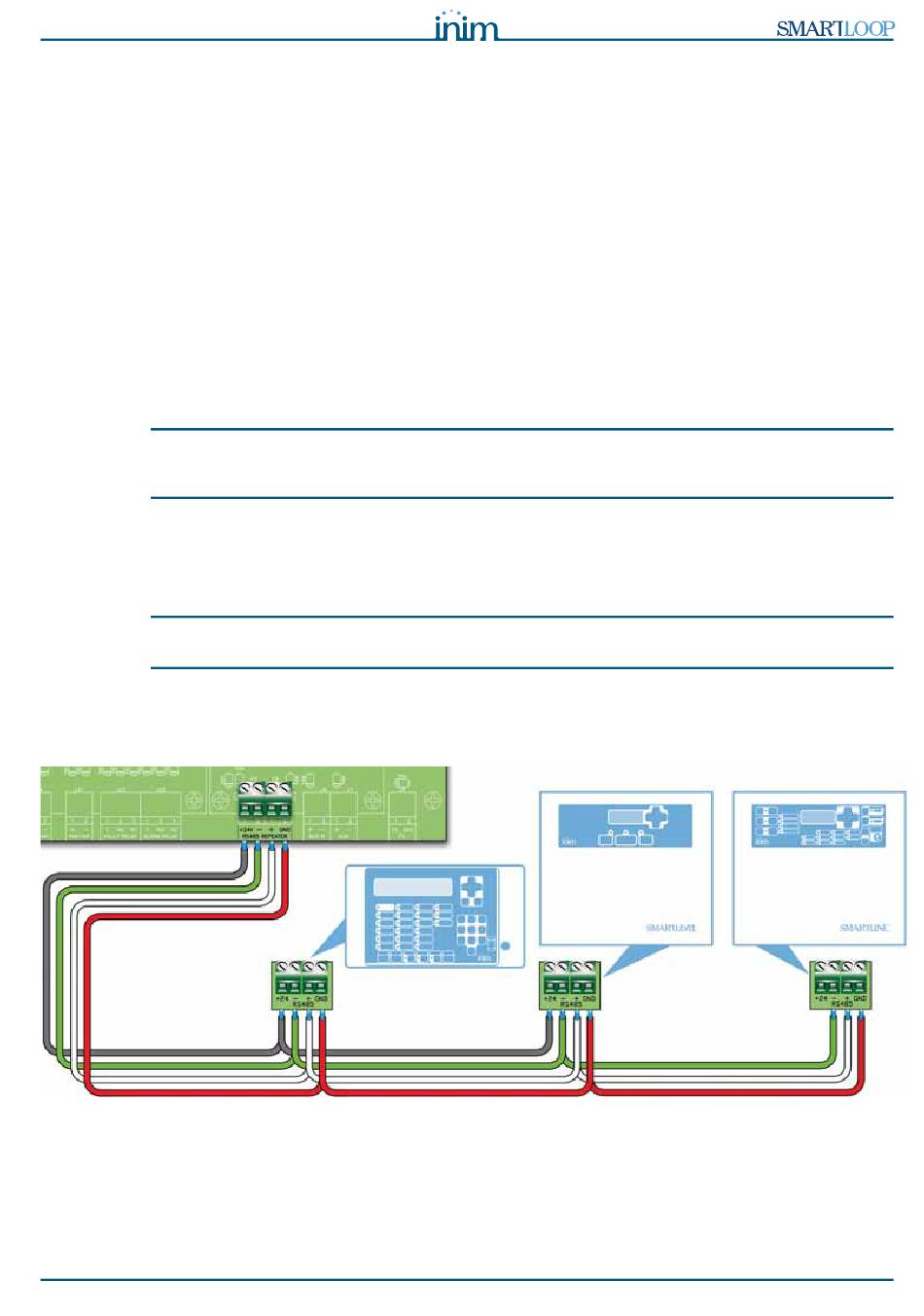

Figure 22 - RS485 BUS connections
1. Use 4-pole shielded twisted cable for all connections.
2. Complete the RS485 BUS connections in parallel. Do not connect any wires to "+24" terminal of the
RS485 BUS of the SmartLine-EXT extinction stations.
3. Insert the jumper in the EOL position on the last device, whether it is a repeater or power station (this
operation must not be carried out on extinction panels).
Connections
REPEATERS
SmartLetUSee/LCD
POWER
STATIONS
SmartLevel
EXTINCTION
STATIONS
SmartLine-EXT
