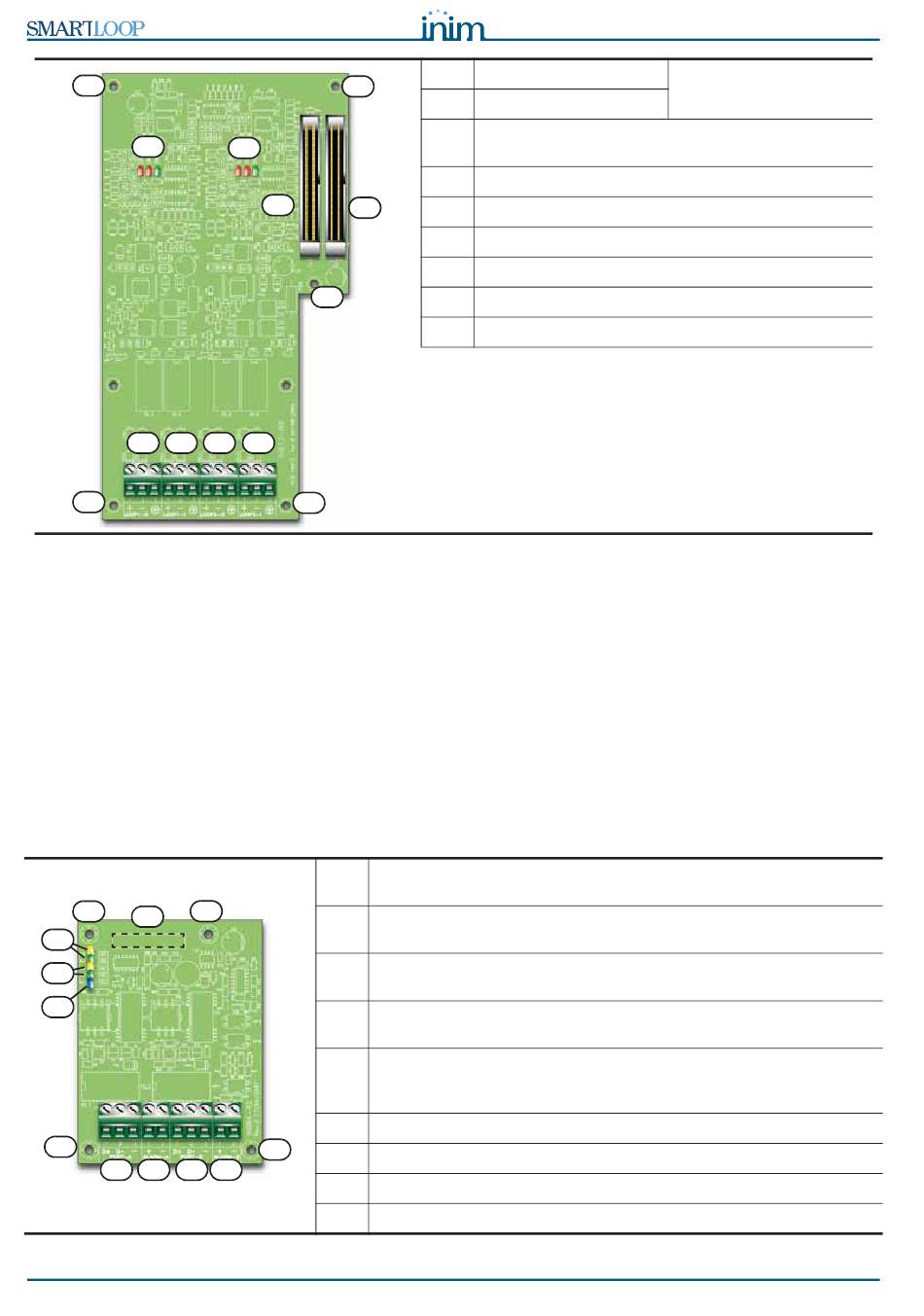

Figure 8 - The SmartLoop/2L board
The SmartLoop/2L package includes:
• A cable for the connection to the motherboard
• Two split ferrite cores for the loop output wires
• 5 anchor screws
• 5 spacers
5.1.2 The SmartLoop/NET board
The SmartLoop/NET board allows you to create a token-ring capable of managing 30 SmartLoop control
panels via a 3 -pole cable.
The network must be wired as a ring network with a maximum cable length between each panel of 2000
metres, in this way, the network will be fault tolerant (HorNet technology). Using a supplementary 2-pole
cable (5 poles in all), you can create a protection ring which can pass alarm conditions, coming from a fire
control panel with microprocessor fault, through the ring.
I
H
G
F
E
I
B A D
Figure 9 - SmartLoop/NET board
22
I
B
C
D
I
F E
I
[A]
I
[B]
[C]
[D]
[E]
[F]
I
[G]
C
[H]
[I]
[A] Loop 1 status LED
[B] Loop 2 status LED
[C] SmartLoop/2L board to board connector (up to 3
boards)
[D] Motherboard to SmartLoop/2L board connector
[E] Loop 2 Input terminals
[F] Loop 2 Output terminals
[G] Loop 1 Input terminals
[H] Loop 1 Output terminals
[I] Screw locations
A terminals for the protection-ring connection (to be connected to
Alarm-B of the successive control panel)
Communication Port A (to be connected to Port-B of the successive
control panel)
B terminals for the protection ring connection (to be connected to
Alarm-A of the previous control panel)
Communication Port B (to be connected to the Port-A terminals of
the previous control panel)
Blue LED (indicates the In Service/Out of Service status of the
SmartLoop/NET board). If this LED is Off, the panel is isolated from
the network.
2 Port A status LEDs (green and yellow)
2 Port B status LEDs (green and yellow)
Interface to motherboard plug (on the reverse side of the board)
Screw locations
