5.1.4 The SmartLoop/PSTN board
The SmartLoop/PSTN board allows the SmartLoop fire control panel to use the land line (PSTN). It
manages (and monitors) 2 lines and uses the most widely used reporting protocols (SIA, Contact ID, etc.).
It has an 8-slot audio memory for up to eight voice call messages. Completely managed by its on-board
microcontroller, it generates emergency calls in the event of a CPU fault, and also any alarm calls triggered
during the CPU fault.
A B C
J
D
J
I
J

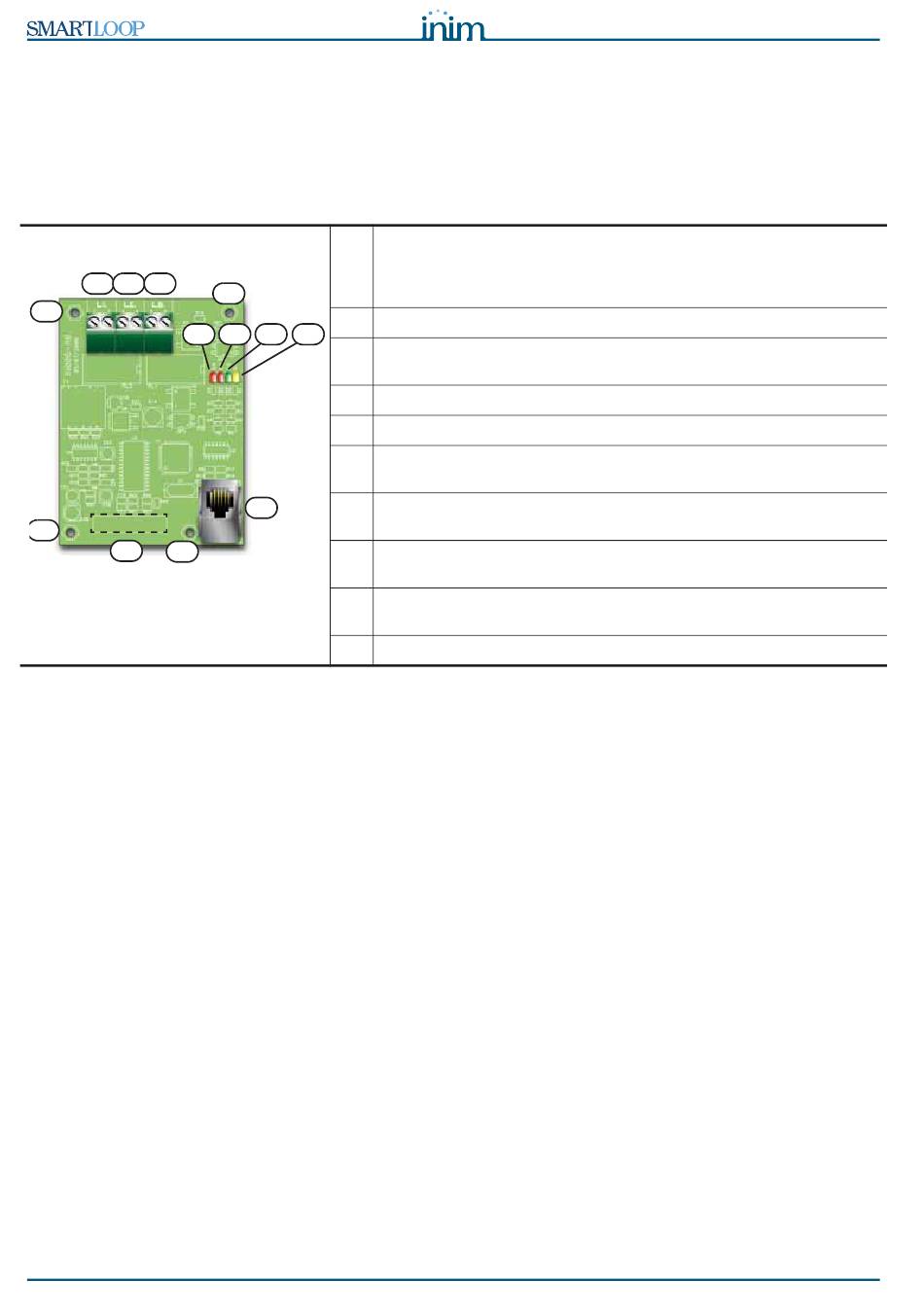

Figure 12 - The SmartLoop/PSTN board
The SmartLoop/PSTN package includes:
• 4 anchor screws
• 4 spacers
5.1.5 The SmartLoop/INOUT board
The SmartLoop/INOUT board provides 6 outputs (CH1 - CH6). Each of these can be configured as:
• Supervised output (NAC – 1A max.)
• Supervised input
• Conventional detector line
• Gas detector line
During the programming phase, you can program the events which will activate the outputs and the actions
generated by the inputs.
The SmartLoop/PSTN package includes:
• 4 anchor screws
• 4 spacers
• Resistors and diodes
24
[A] L.I. Terminals for the internal phone-line connection. The signals
from the L.E. terminals (external landline) are diverted to these
terminals, thus allowing the connected telephone devices to use the
land line.
J
[B] L.E. Terminals for the PSTN telephone connection
E F G
[C] L.B. Terminals for the backup line (a secondary line to be used in the
event of "primary line-down" conditions)
[D] Red LED for backup phone-line trouble signals
[E] Red LED for main phone-line trouble
[F] Green Activity LED (indicates data exchange between the
SmartLoop/PSTN board and the motherboard)
[G] Yellow Line-engaged LED (goes On when the PSTN board hooks the
H
PSTN line)
[H] Phone plug-in connector (for recording voice messages using a
normal phone)
[I] Interface to motherboard plug (located on the reverse side of the
board)
[J] Screw locations
