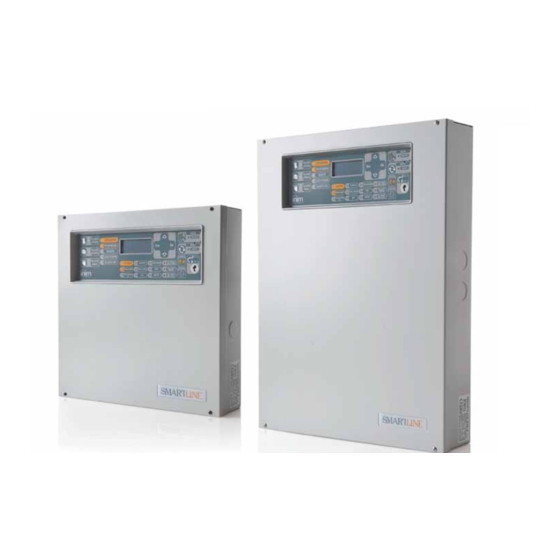

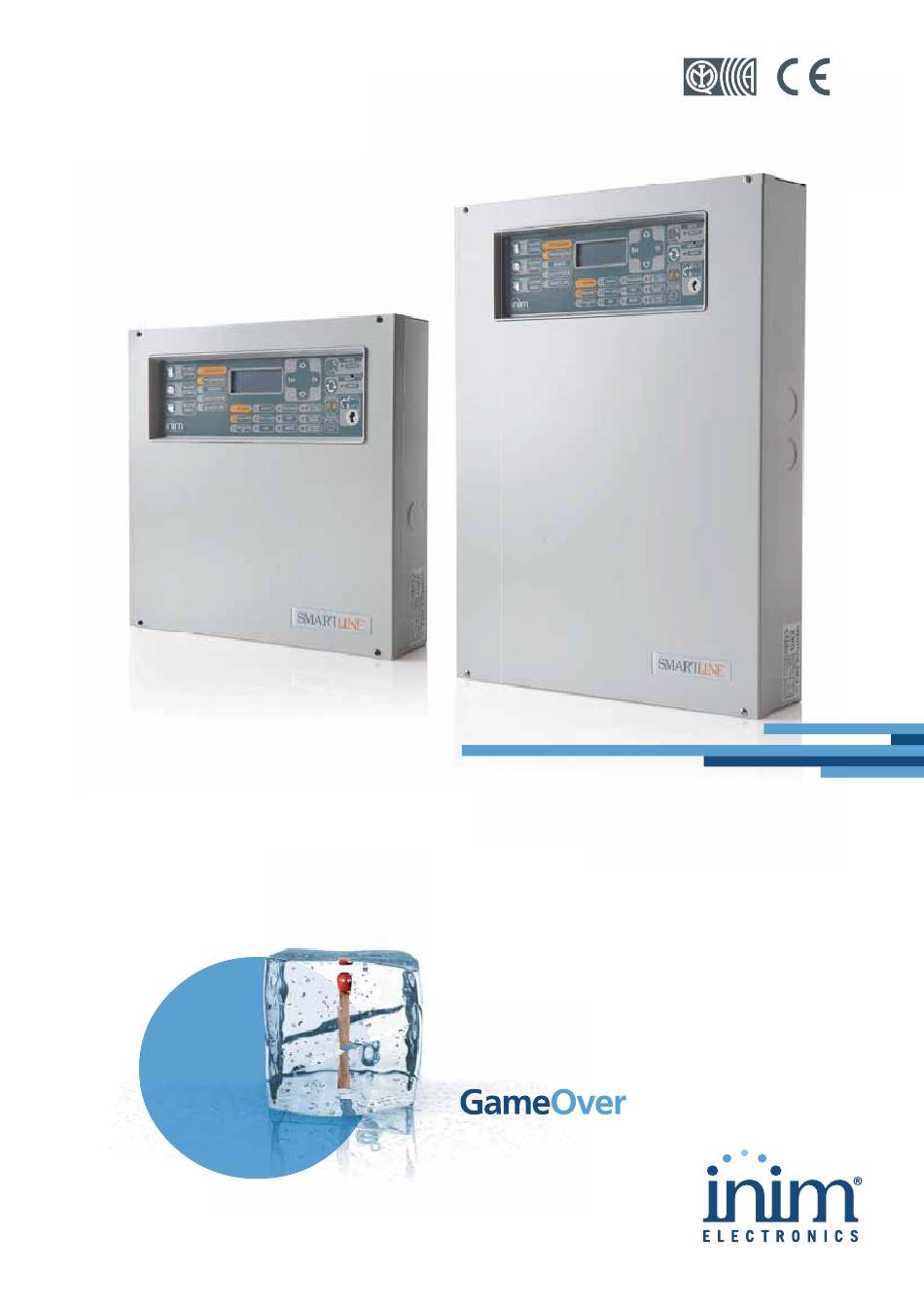

- Page 1 0051 EN 54-2 0051-CPR-0224 EN 54-4 0051-CPR-0229 EN 12094-1 0051-CPR-0230 SmartLine Conventional fire detection control panel Extinguishant system control panel User's manual...
-
Page 2: Description Of The Control Panel
• Denomination: Conventional fire detection and extinguishing control panel • Model: SmartLine Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. All rights reserved. - Page 3 User’s manual 1.6.1 Commands Note: For further details refer to the Installation Manual, paragraph 5.1 SmartLine panel frontplate. Command Access level 1 Access level 2 Navigation keys Keyhole for the Key not inserted or inserted in vertical Key inserted in horizontal position access level 2 key position SILENCE...
- Page 4 Conventional fire detection control panel On solid: Blinking: PRE-ALARM Indicates a pre-alarm condition, that is, an input (red) point (detector, callpoint, input module, etc.) set with a pre-alarm time has activated. FAULT Indicates an active fault condition. The display will Indicates a restored fault condition in (yellow) provide the fault details.
- Page 5 User’s manual Repeater This control panel supports up to four repeater panels. Connected repeater panels replicate all the information provided by the control panel and allow access to all Level 1 and 2 functions (View active events, Reset, Silence, etc.), but do not allow access to the Main menu.
- Page 6 Conventional fire detection control panel 1.7.2 LEDs On solid: On blinking: SILENCED As per paragraph 1.6.1 Commands RESET DISABLED As per paragraph 1.6.1 Commands INVESTIGATE Indicates that investigation time has been requested. ALARM As per paragraph 1.6.1 Commands PRE-ALARM As per paragraph 1.6.1 Commands FAULT As per paragraph 1.6.1 Commands CPU FAULT...
-
Page 7: Using The Control Panel
User’s manual Chapter 2 Using the Control Panel For authorized persons Attention: Insert and turn the key. The panel will enable access level 2. The panel will hold level 2 status for 30 seconds. Danger signaling Note: In the event of fire hazard, always follow the fire department approved fire drill. 2.2.1 For building occupants ALARM LED on Evacuate the building immediately. - Page 8 Conventional fire detection control panel Fault signaling 2.3.1 For building occupants FAULT LED on solid or Inform security personnel immediately. blinking 2.3.2 For authorized persons You must always ensure that faults are dealt with and cleared as soon as possible. However, in the meantime, you can bypass the zone/point/output concerned.
- Page 9 User’s manual Signaling on the display If several events of the same type occur, only the first will be shown on the display. If several alarms occur, the first alarm will remain on the first line of the display and the most recent alarm will be shown on the line below.
- Page 10 Conventional fire detection control panel Example of successive pre-alarm event: The total number of pre-alarm events will increase but the display will still show the details of the first pre- alarm event. 1st line: pre-alarm event number and total number of pre-alarms Pre -a lar m 0 1/ 02 2nd line: unchanged Zon e...
- Page 11 User’s manual 2.6.4 Bypassed and Test Signaling Bypassed signaling can be generated by a zone or an output. Test signaling can be generated only by a zone. Example of first bypassed zone event: zone 12 bypassed. 1st line: number of the first bypassed zone and total number of bypassed zones Byp as s 01/ 01...
- Page 12 ISO 9001 Quality Management certified by BSI with certificate number FM530352 via Fosso Antico snc - fraz. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMUINE0SLINE-R350-20141001...
