Installation manual
Sounder
Driver
A.1 Configuring Enea series devices
The distinct serial number of each detector is shown on the device information label. Manual addressing is
unnecessary as the addressing phase is automatic. To address devices, connect them to the loop and work
through the following steps.

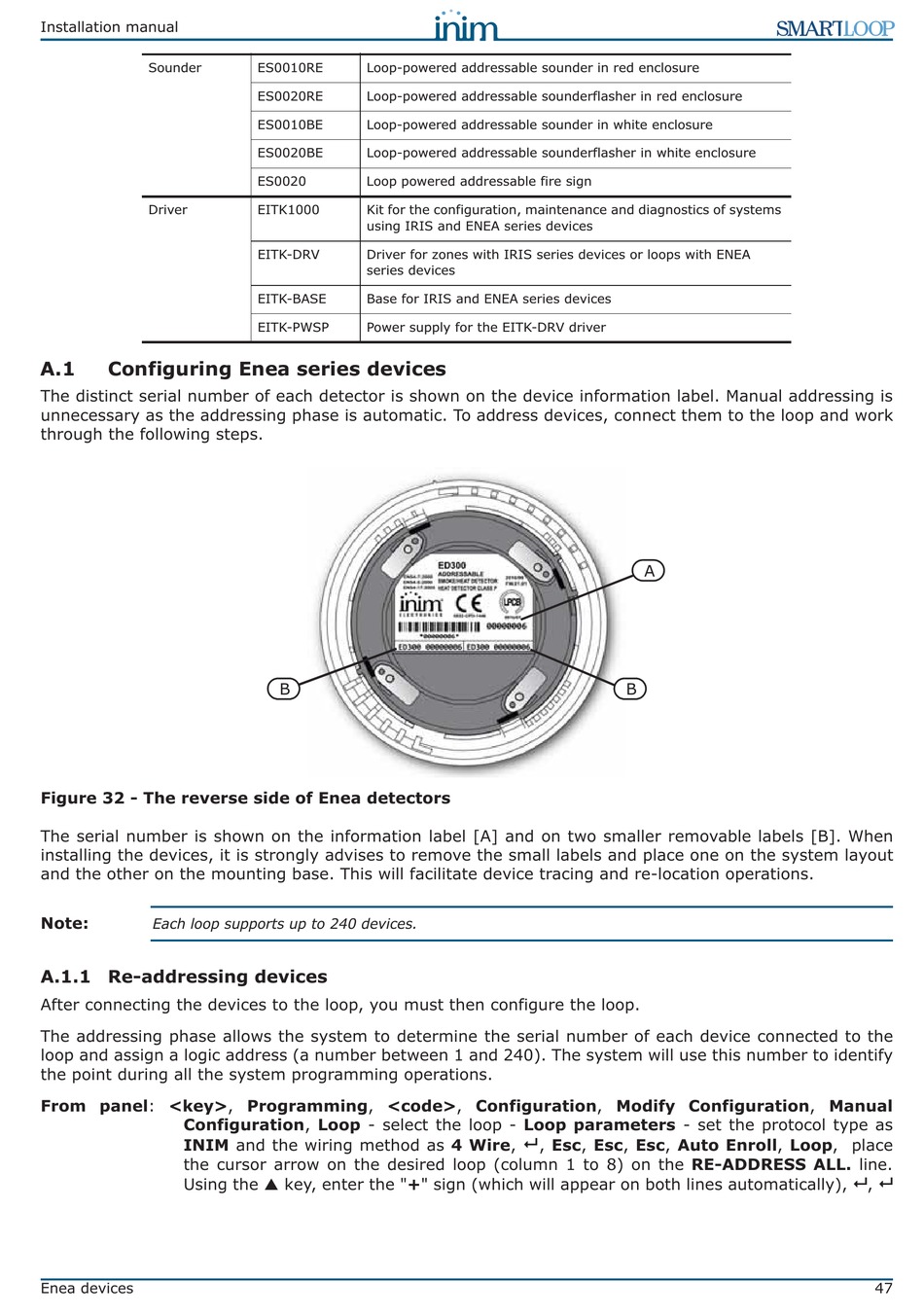

Figure 32 - The reverse side of Enea detectors
The serial number is shown on the information label [A] and on two smaller removable labels [B]. When
installing the devices, it is strongly advises to remove the small labels and place one on the system layout
and the other on the mounting base. This will facilitate device tracing and re-location operations.
Note:
Each loop supports up to 240 devices.
A.1.1 Re-addressing devices
After connecting the devices to the loop, you must then configure the loop.
The addressing phase allows the system to determine the serial number of each device connected to the
loop and assign a logic address (a number between 1 and 240). The system will use this number to identify
the point during all the system programming operations.
From panel: <key>, Programming, <code>, Configuration, Modify Configuration, Manual
Configuration, Loop - select the loop - Loop parameters - set the protocol type as
INIM and the wiring method as 4 Wire,
the cursor arrow on the desired loop (column 1 to 8) on the RE-ADDRESS ALL. line.
Using the S key, enter the "+" sign (which will appear on both lines automatically),
Enea devices
ES0010RE Loop-powered addressable sounder in red enclosure
ES0020RE Loop-powered addressable sounderflasher in red enclosure
ES0010BE Loop-powered addressable sounder in white enclosure
ES0020BE Loop-powered addressable sounderflasher in white enclosure
ES0020 Loop powered addressable fire sign
EITK1000 Kit for the configuration, maintenance and diagnostics of systems
using IRIS and ENEA series devices
EITK-DRV Driver for zones with IRIS series devices or loops with ENEA
series devices
EITK-BASE Base for IRIS and ENEA series devices
EITK-PWSP Power supply for the EITK-DRV driver
B
A
B

, Esc, Esc, Esc, Auto Enroll, Loop, place

,
