Connecting attachment boards
6.2.2
2
4

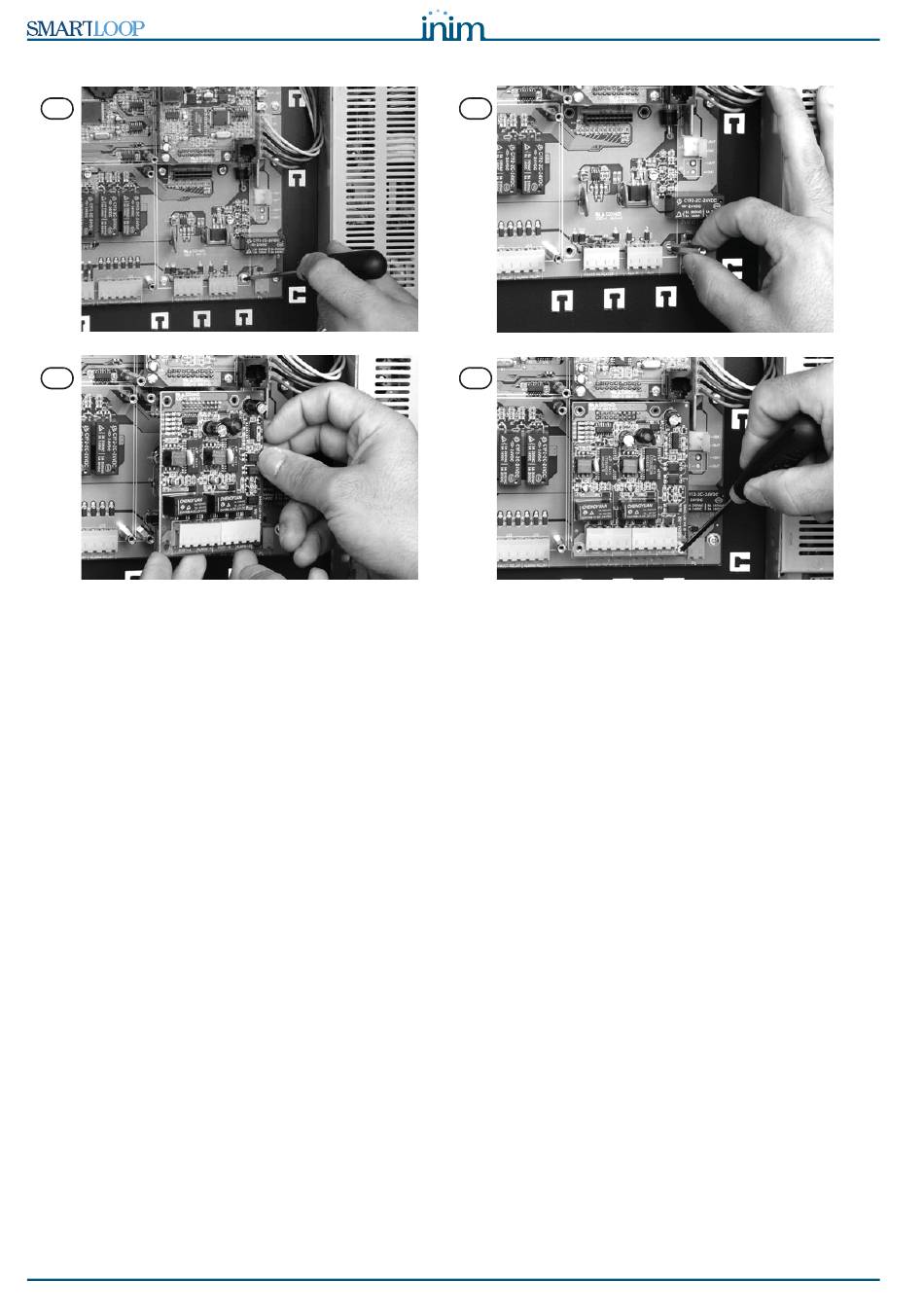

Figure 17 - Connecting attachment boards
1. Find the attachment board location on the motherboard (refer to Figure 7 - The motherboard
accessorized with attachment boards).
If you are installing a SmartLoop/2L board, insert un one end of the flat cable (included) into the
respective connector on the motherboard (paragraph 4.2 - [D]).
2. Remove the relative screws from the motherboard.
3. Screw the metal spacers into place (included).
4. Position the accessory board on the supports and check that the accessory board connector is properly
inserted.
5. Using the previously-removed screws, secure the attachment board in place.
6. If you are installing a SmartLoop/2L board, using the free end of the flat cable (included), connect the
accessory board to the motherboard.
6.3

Connecting the SmartLoop/PRN printer module

1. Unscrew the nuts from the screws which secure the printer-housing protection plate in place (paragraph
4.1 - [D]) then remove the plate.
2. Working from the front of the enclosure (door closed), insert the Printer into its location.
3. Holding the printer module firmly in place, open the door of the enclosure and position the hooks on the
guide (paragraph 5.2 - [E]) , ensure that the module is firmly positioned.
4. Connect the printer wire to the terminals on the reverse side of the module (paragraph 5.2 - [F] and
paragraph 5.2 - [G]) and to the motherboard via the respective connector (paragraph 4.2 - [M]).
5. Use the cable ties and plastic cable hooks (included in the SmartLoop/PRN kit) where necessary on the
reverse side of frontplate (above the motherboard), in order to secure the connection wires firmly in
place.
