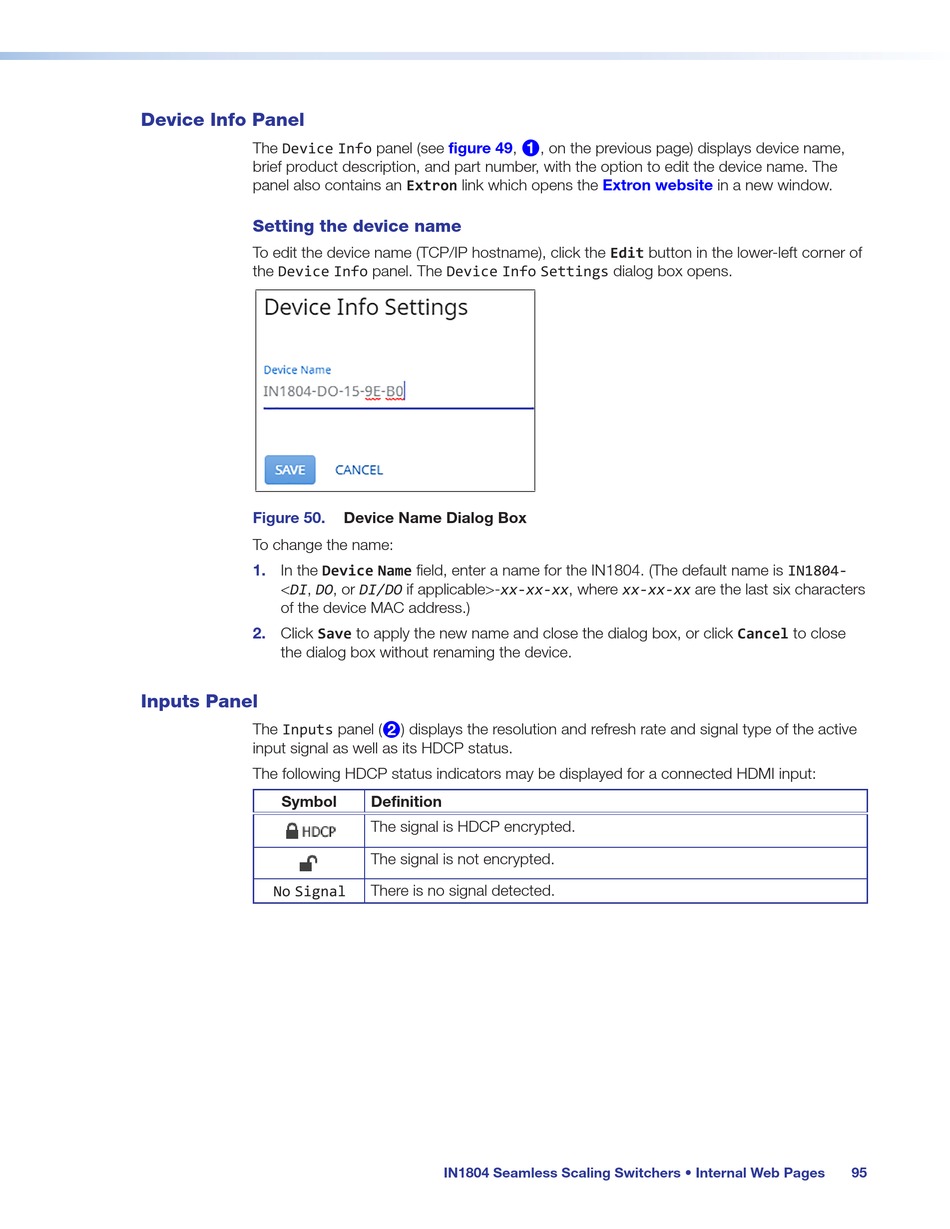

Device Info Panel

The Device Info panel (see
brief product description, and part number, with the option to edit the device name. The
panel also contains an Extron link which opens the
Setting the device name
To edit the device name (TCP/IP hostname), click the Edit button in the lower-left corner of
the Device Info panel. The Device Info Settings dialog box opens.
Figure 50.
To change the name:
1. In the Device Name field, enter a name for the IN1804. (The default name is IN1804-
<DI, DO, or DI/DO if applicable>-xx-xx-xx, where xx-xx-xx are the last six characters
of the device MAC address.)
2. Click Save to apply the new name and close the dialog box, or click Cancel to close
the dialog box without renaming the device.

Inputs Panel

The Inputs panel (
input signal as well as its HDCP status.
The following HDCP status indicators may be displayed for a connected HDMI input:
Symbol
No Signal
figure 49,
1
Device Name Dialog Box
) displays the resolution and refresh rate and signal type of the active
2
Definition
The signal is HDCP encrypted.
The signal is not encrypted.
There is no signal detected.
IN1804 Seamless Scaling Switchers • Internal Web Pages
, on the previous page) displays device name,
Extron website in a new window.
95
