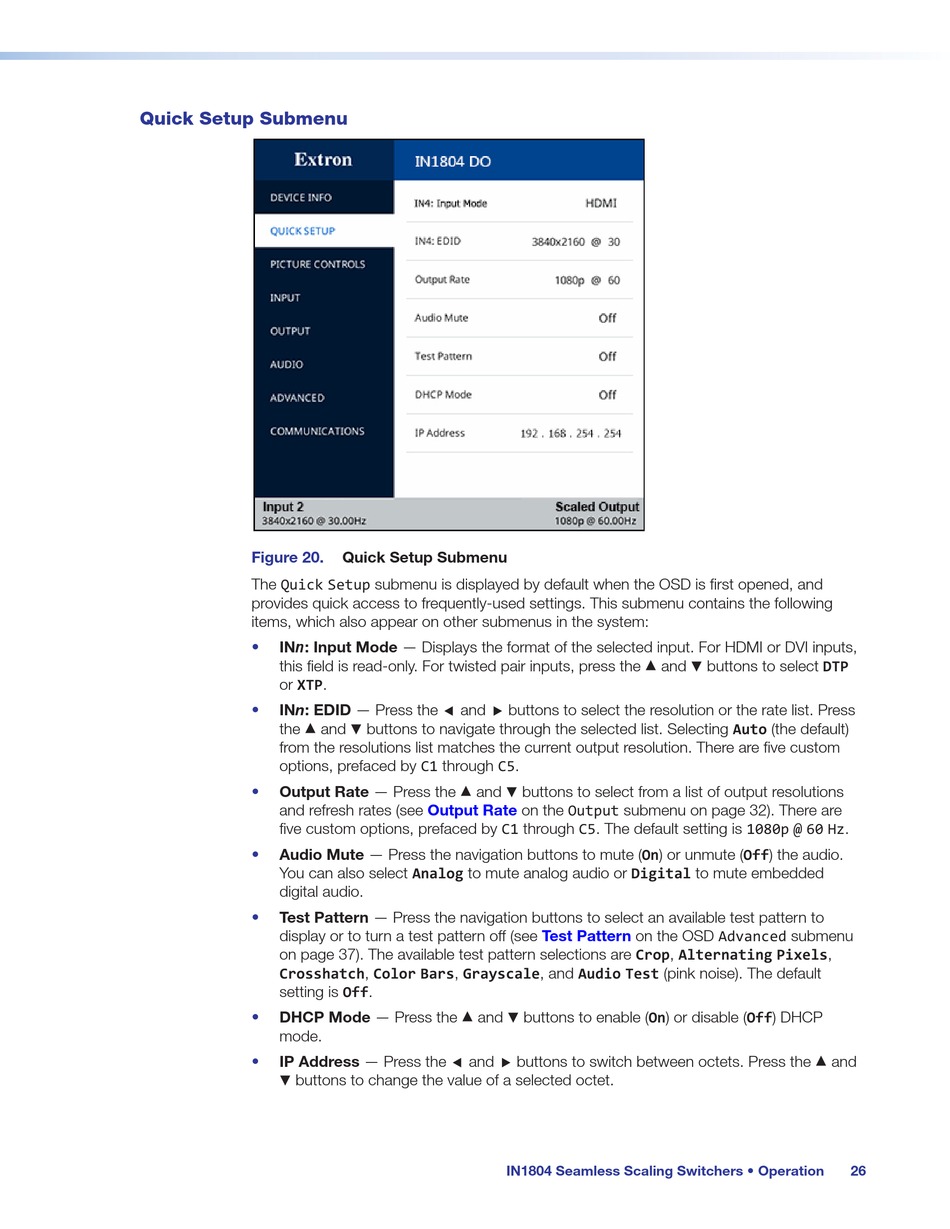

Quick Setup Submenu

Figure 20.
The Quick Setup submenu is displayed by default when the OSD is first opened, and
provides quick access to frequently-used settings. This submenu contains the following
items, which also appear on other submenus in the system:
INn: Input Mode — Displays the format of the selected input. For HDMI or DVI inputs,
•
this field is read-only. For twisted pair inputs, press the
or XTP.
INn: EDID — Press the ƒ and „ buttons to select the resolution or the rate list. Press
•
>
the
from the resolutions list matches the current output resolution. There are five custom
options, prefaced by C1 through C5.
• Output Rate — Press the
and refresh rates (see
five custom options, prefaced by C1 through C5. The default setting is 1080p @ 60 Hz.
• Audio Mute — Press the navigation buttons to mute (On) or unmute (Off) the audio.
You can also select Analog to mute analog audio or Digital to mute embedded
digital audio.
Test Pattern — Press the navigation buttons to select an available test pattern to
•
display or to turn a test pattern off (see
on page 37). The available test pattern selections are Crop, Alternating Pixels,
Crosshatch, Color Bars, Grayscale, and Audio Test (pink noise). The default
setting is Off.
• DHCP Mode — Press the
mode.
• IP Address — Press the ƒ and „ buttons to switch between octets. Press the
<
buttons to change the value of a selected octet.
Quick Setup Submenu
and < buttons to navigate through the selected list. Selecting Auto (the default)
>
and
Output Rate
>
and
>
and
< buttons to select from a list of output resolutions
on the Output submenu on page 32). There are
Test Pattern on the OSD Advanced submenu
<
buttons to enable (On) or disable (Off) DHCP
IN1804 Seamless Scaling Switchers • Operation
< buttons to select DTP
>
and
26
