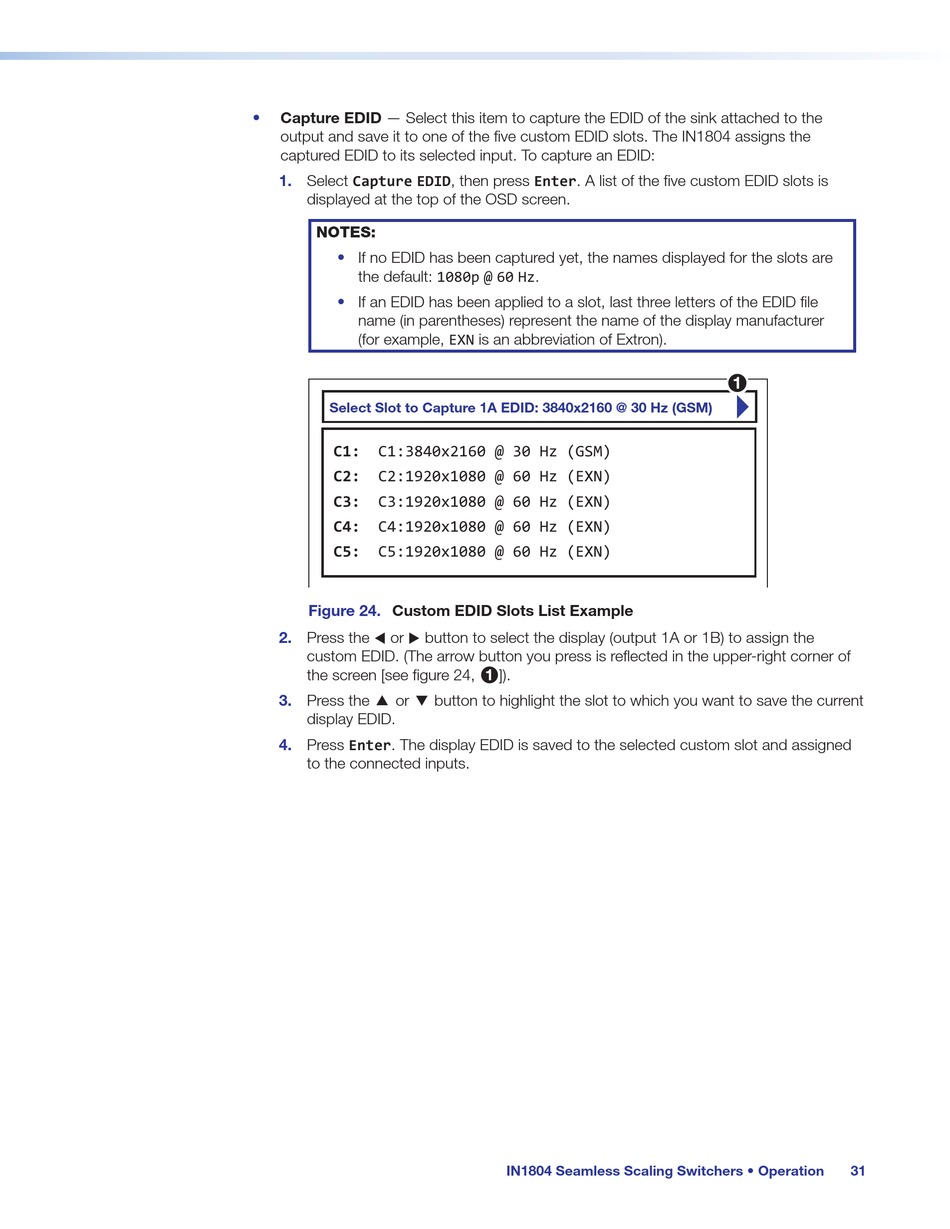

• Capture EDID — Select this item to capture the EDID of the sink attached to the
output and save it to one of the five custom EDID slots. The IN1804 assigns the
captured EDID to its selected input. To capture an EDID:
1. Select Capture EDID, then press Enter. A list of the five custom EDID slots is
displayed at the top of the OSD screen.
NOTES:
• If no EDID has been captured yet, the names displayed for the slots are
the default: 1080p @ 60 Hz.
• If an EDID has been applied to a slot, last three letters of the EDID file
name (in parentheses) represent the name of the display manufacturer
(for example, EXN is an abbreviation of Extron).
Select Slot to Capture 1A EDID: 3840x2160 @ 30 Hz (GSM)
C1: C1:3840x2160 @ 30 Hz (GSM)
z
C2:1920x1080 @ 60 Hz (EXN)
C2:
z
C3:1920x1080 @ 60 Hz (EXN)
C3:
z
C4:1920x1080 @ 60 Hz (EXN)
C4:
z
C5:1920x1080 @ 60 Hz (EXN)
C5:
Figure 24. Custom EDID Slots List Example
2. Press the or button to select the display (output 1A or 1B) to assign the
 u
custom EDID. (The arrow button you press is reflected in the upper-right corner of
the screen [see figure 24,

3. Press the or

display EDID.
4. Press Enter. The display EDID is saved to the selected custom slot and assigned
to the connected inputs.
]).
1
button to highlight the slot to which you want to save the current
IN1804 Seamless Scaling Switchers • Operation
