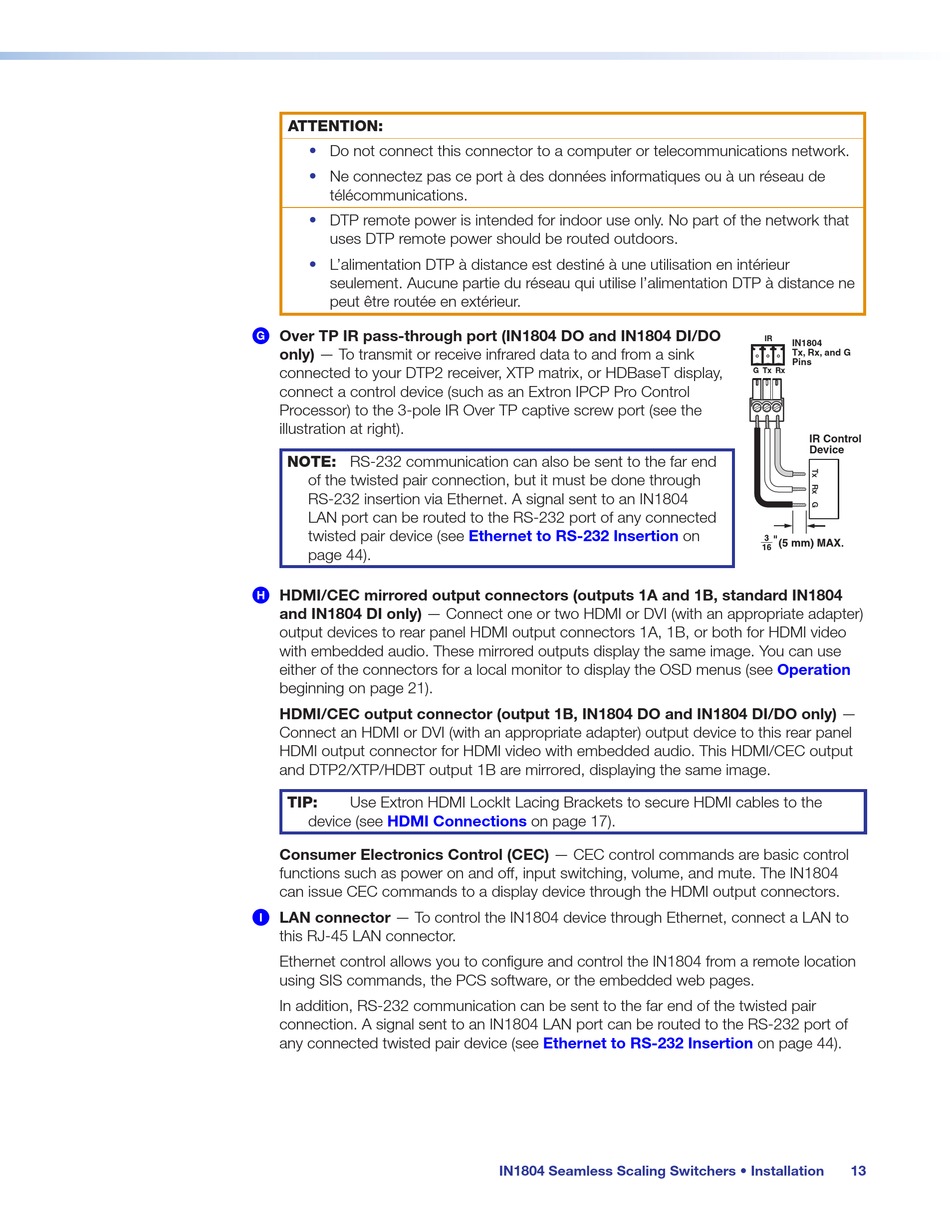

ATTENTION:
• Do not connect this connector to a computer or telecommunications network.
•
Ne connectez pas ce port à des données informatiques ou à un réseau de
télécommunications.
• DTP remote power is intended for indoor use only. No part of the network that
uses DTP remote power should be routed outdoors.
• L'alimentation DTP à distance est destiné à une utilisation en intérieur
seulement. Aucune partie du réseau qui utilise l'alimentation DTP à distance ne
peut être routée en extérieur.
Over TP IR pass-through port (IN1804 DO and IN1804 DI/DO
G
only) — To transmit or receive infrared data to and from a sink
connected to your DTP2 receiver, XTP matrix, or HDBaseT display,
connect a control device (such as an Extron IPCP Pro Control
Processor) to the 3-pole IR Over TP captive screw port (see the
illustration at right).
NOTE: RS-232 communication can also be sent to the far end
of the twisted pair connection, but it must be done through
RS-232 insertion via Ethernet. A signal sent to an IN1804
LAN port can be routed to the RS-232 port of any connected
twisted pair device (see
page 44).
HDMI/CEC mirrored output connectors (outputs 1A and 1B, standard IN1804
H
and IN1804 DI only) — Connect one or two HDMI or DVI (with an appropriate adapter)
output devices to rear panel HDMI output connectors 1A, 1B, or both for HDMI video
with embedded audio. These mirrored outputs display the same image. You can use
either of the connectors for a local monitor to display the OSD menus (see
beginning on page 21).
HDMI/CEC output connector (output 1B, IN1804 DO and IN1804 DI/DO only) —
Connect an HDMI or DVI (with an appropriate adapter) output device to this rear panel
HDMI output connector for HDMI video with embedded audio. This HDMI/CEC output
and DTP2/XTP/HDBT output 1B are mirrored, displaying the same image.
TIP: Use Extron HDMI LockIt Lacing Brackets to secure HDMI cables to the
device (see HDMI Connections
Consumer Electronics Control (CEC) — CEC control commands are basic control
functions such as power on and off, input switching, volume, and mute. The IN1804
can issue CEC commands to a display device through the HDMI output connectors.
LAN connector — To control the IN1804 device through Ethernet, connect a LAN to
I
this RJ-45 LAN connector.
Ethernet control allows you to configure and control the IN1804 from a remote location
using SIS commands, the PCS software, or the embedded web pages.
In addition, RS-232 communication can be sent to the far end of the twisted pair
connection. A signal sent to an IN1804 LAN port can be routed to the RS-232 port of
any connected twisted pair device (see
Ethernet to RS-232 Insertion
on page 17).
Ethernet to RS-232 Insertion
IN1804 Seamless Scaling Switchers • Installation
IR
IN1804
Tx, Rx, and G
Pins
G Tx Rx
IR Control
Device
on
Operation
on page 44).
13
