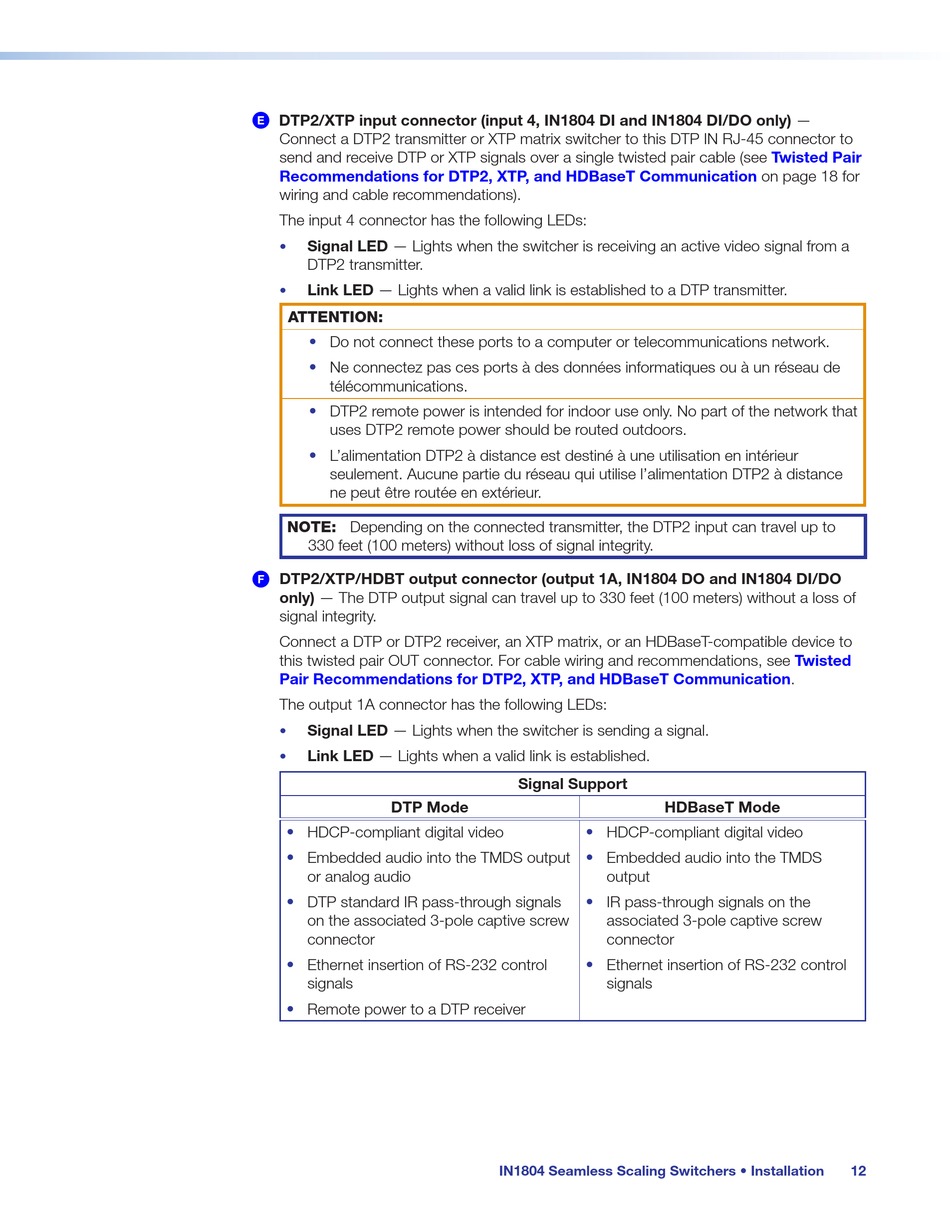

DTP2/XTP input connector (input 4, IN1804 DI and IN1804 DI/DO only) —
E
Connect a DTP2 transmitter or XTP matrix switcher to this DTP IN RJ-45 connector to
send and receive DTP or XTP signals over a single twisted pair cable (see
Recommendations for DTP2, XTP, and HDBaseT Communication
wiring and cable recommendations).
The input 4 connector has the following LEDs:
Signal LED — Lights when the switcher is receiving an active video signal from a
•
DTP2 transmitter.
Link LED — Lights when a valid link is established to a DTP transmitter.
•
ATTENTION:
• Do not connect these ports to a computer or telecommunications network.
• Ne connectez pas ces ports à des données informatiques ou à un réseau de
télécommunications.
• DTP2 remote power is intended for indoor use only. No part of the network that
uses DTP2 remote power should be routed outdoors.
•
L'alimentation DTP2 à distance est destiné à une utilisation en intérieur
seulement. Aucune partie du réseau qui utilise l'alimentation DTP2 à distance
ne peut être routée en extérieur.
NOTE: Depending on the connected transmitter, the DTP2 input can travel up to
330 feet (100 meters) without loss of signal integrity.
DTP2/XTP/HDBT output connector (output 1A, IN1804 DO and IN1804 DI/DO
F
only) — The DTP output signal can travel up to 330 feet (100 meters) without a loss of
signal integrity.
Connect a DTP or DTP2 receiver, an XTP matrix, or an HDBaseT-compatible device to
this twisted pair OUT connector. For cable wiring and recommendations, see
Pair Recommendations for DTP2, XTP, and HDBaseT
The output 1A connector has the following LEDs:
Signal LED — Lights when the switcher is sending a signal.
•
Link LED — Lights when a valid link is established.
•
DTP Mode
• HDCP-compliant digital video
• Embedded audio into the TMDS output
or analog audio
DTP standard IR pass-through signals
•
on the associated 3-pole captive screw
connector
• Ethernet insertion of RS-232 control
signals
• Remote power to a DTP receiver
Communication.
Signal Support
HDBaseT Mode
• HDCP-compliant digital video
• Embedded audio into the TMDS
output
IR pass-through signals on the
•
associated 3-pole captive screw
connector
• Ethernet insertion of RS-232 control
signals
IN1804 Seamless Scaling Switchers • Installation
Twisted Pair
on page 18 for
Twisted
12
