2. The User Interface
2.6.

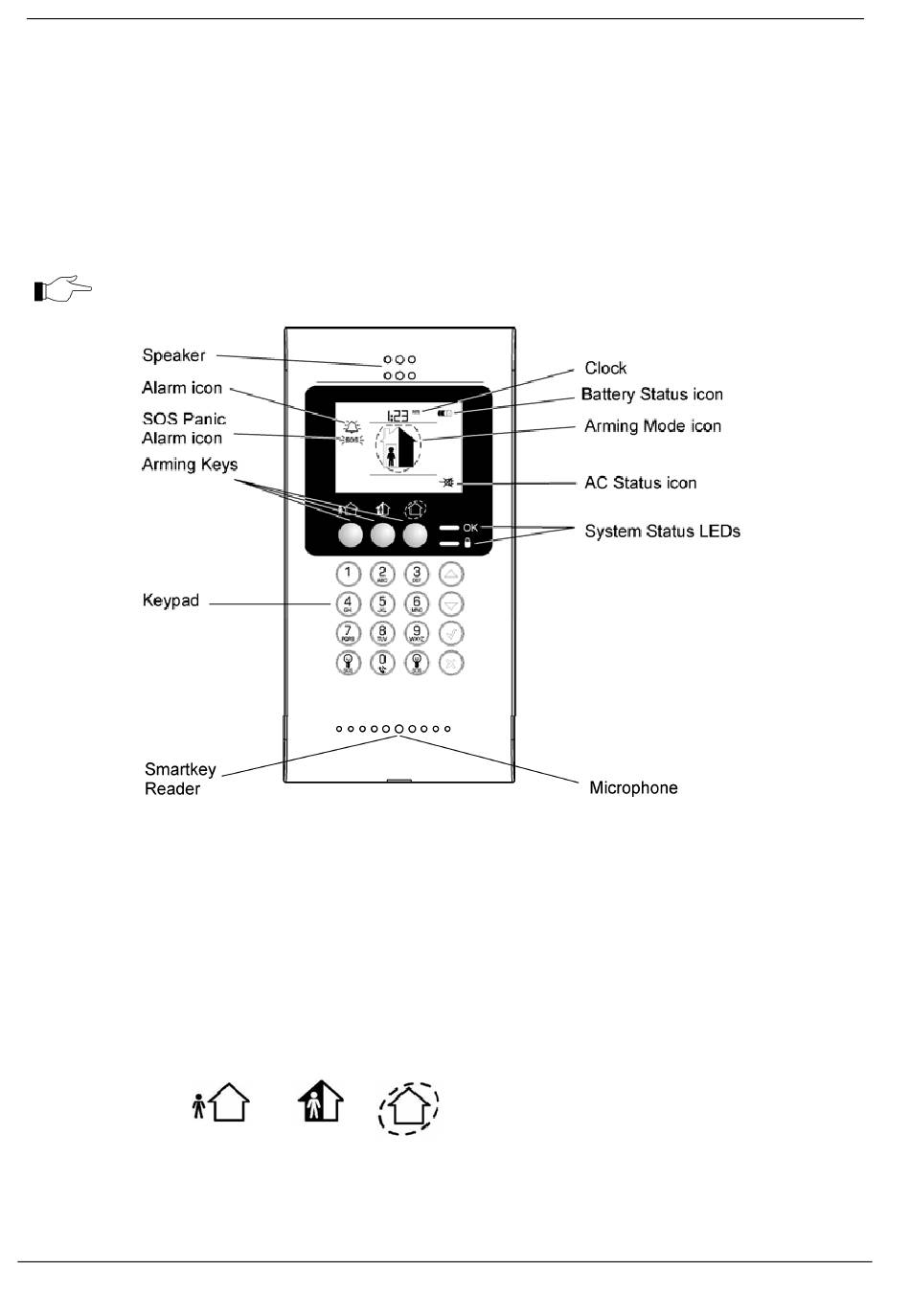

Wireless Terminal

The EL‐2724 Wireless Terminal is an intelligent two‐way wireless keypad with a large
display. Apart from serving as an additional arming station, the EL‐2724 provides memo
recording options, control over up to 16 home automation devices, and panic alarm
function. You can arm and disarm the system with the Wireless Terminal using the
smartkey (if supported). The EL‐2724ʹs display shows arming status, power status,
alarms, and time. The system supports up to four Wireless Terminals.
Wireless Terminal EL‐2724 does not support partitioning.
Keypad
The Wireless Terminal keypad is the user interface that provides you with the functions
you need to control your security system. Three arming keys (Full, Part, and Perimeter)
allow you to arm the system using one of the three arming methods – see p. 15, 3. Arming
and Disarming. One‐key Arming is an option that is programmed by your installer. If this
option is disabled, you must also enter a user code when arming.
Function Press...
ARM
DISARM [USER CODE or SMARTKEY]
iConnect User Manual
OR
OR
FULL PART PERIMETER
Additional Information
If One-key Arming is disabled, enter your
user code or place a registered smartkey (if
supported) against the center of the
smartkey reader.
Entering your user code also silences the
siren in the event of an alarm.
