- Page 1 P enta Electronics Line...
-
Page 2: Table Of Contents
Reference Information ..................10 1: Introduction Congratulations on purchasing a Penta XL series security system. You have taken a major step in protecting your home or business. In addition to the explanation you will receive from your installer, we urge you to read this manual. This will help you familiarize yourself with the system, so that you can take advantage of its many advanced features. -
Page 3: 2: Overview
2: Overview Your security system is made up of a control panel, keypads, and various detection devices and sensors. The metal cabinet contains the control panel and the stand-by battery. There is normally no reason for anyone but the installer to have access to the control panel. -
Page 4: 3: System Operation

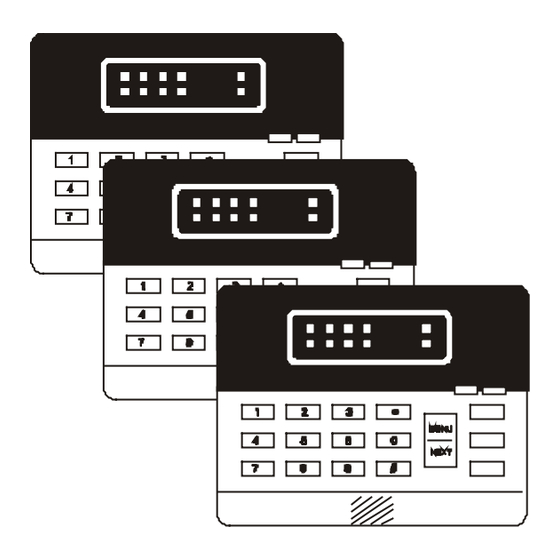

3: System Operation 3.1: Keypad Layout The following diagram shows the keypad layout for the Penta Plus XL control panel. The layout of the keypad supported by Penta XL control panels is identical except for the number of zone indicators. READY System Status Zone... -
Page 5: Command Codes
3.2: Command Codes The security system is operated by entering command codes on the numeric keypad. A command is executed by pressing the ‘ ‘ button followed by the corresponding command number. In some cases, a valid user code is also required. The following is a summary of the command codes used in system operation. -
Page 6: Arming/Disarming
Note: Do not erase User Code 1! Erasing this code denies the user the ability to program user codes. If User Code 1 is accidentally erased, contact your installer. Duress Code In the event that you are forced to disarm the system, entering the duress code disarms the system and sends a silent alarm to the central station. -
Page 7: Zone Bypassing/Unbypassing
Disarming You can disarm the system by entering a valid user code during the entry delay. If an error is made entering the code, press ‘#’ and enter the code again. When the code is accepted the Armed indicator and the pulsed delay tone are turned off. If the correct code is not entered by the end of the delay time, an alarm will be generated. -
Page 8: Event Logs
3.8: Event Logs The event logs record events that the system has undergone since the last arming. If any events have been recorded in either event log, the System indicator flashes until the relevant event log has been viewed. In the event that a trouble condition still exists, the System indicator continues to flash until the condition has been remedied. -
Page 9: Additional Operations
Press and hold down # for more than 2 seconds. 3.11: Testing the System Electronics Line recommends that you test your system at least once a week. Walk Test Walk test mode enables you to test peripheral detection devices, such as PIR detectors and magnetic door contacts. -
Page 10: Reference Information
Reference Information To be filled out by the installer: Installer: _______________________________________ Tel: _____________ Address: __________________________________ Date Installed: __________ Central Station: __________________________________ Tel: _____________ Zone 1: __________________________________ Silent Audible Zone 2: __________________________________ Silent Audible Zone 3: _________________________________ Silent Audible Zone 4: _________________________________ Silent Audible...
