Summary of Contents for Electronics Line Penta XL

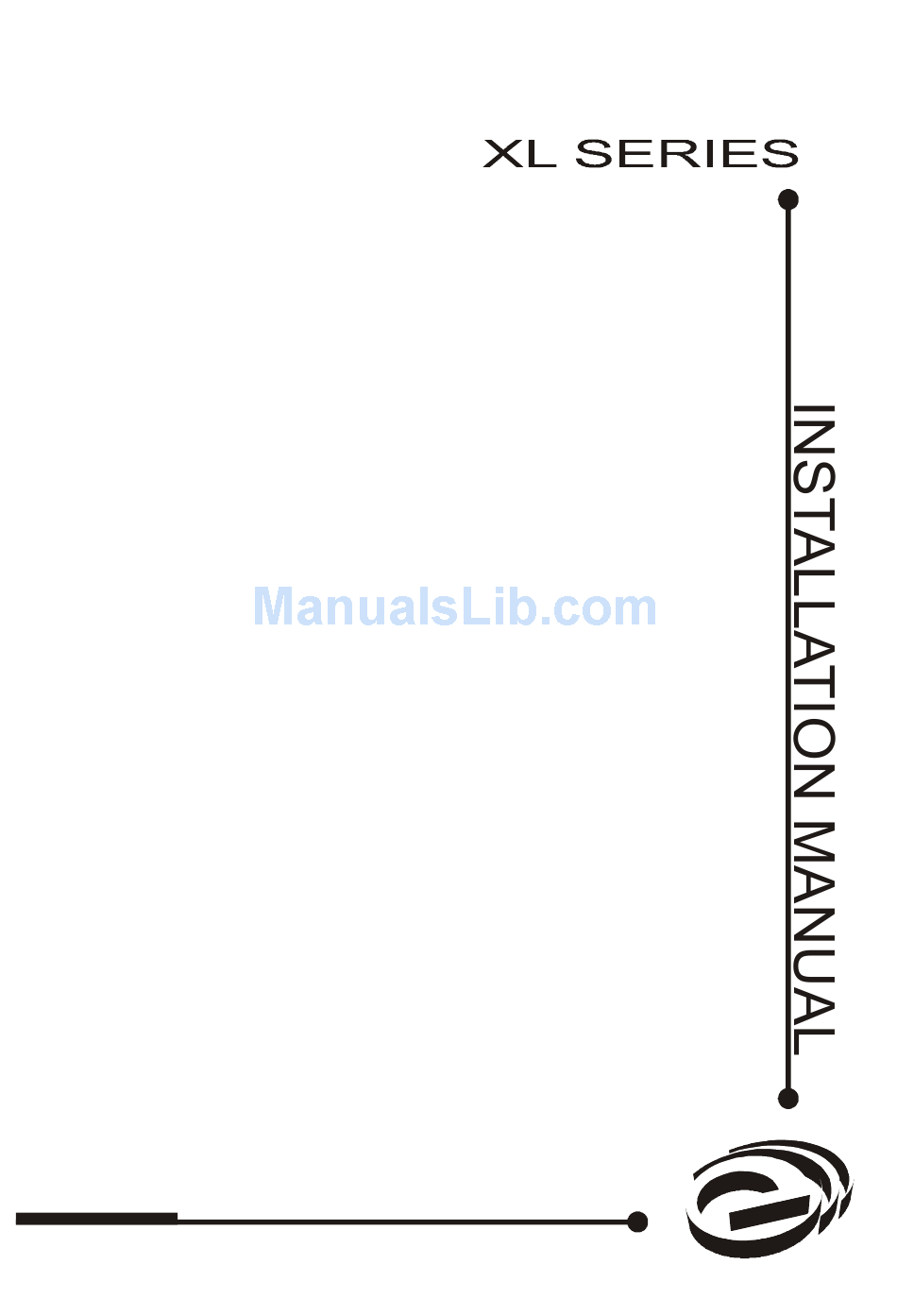

- Page 1 P enta Electronics Line...
-
Page 2: Table Of Contents
Index ........................29 Introduction This manual is designed to help you with the installation process for the Penta XL series of control panels. We strongly urge you to read this manual, in its entirety, before beginning the installation process so that you can best understand all that these security systems have to offer your customers. -
Page 3: Chapter One: Overview
ON/OFF keyswitch. The security zones are fully pro- grammable and supervised by end of line resistors. The Penta XL series offers a number of zone response types, including a dedicated fire zone, to suit a wide range of installations. -
Page 4: Telephone Communication
Suggested Use: Four-wire smoke detectors used to alert in the event of a fire. 1.3: Telephone Communication The Penta XL series of control panels allow for up to three telephone numbers (Primary, Duplicate and Backup) to be programmed into the system. These telephone numbers are dedicated for use in central station communications or with the ‘Follow-me’... -
Page 5: Remote Programming
Note: Electronics Line 3000 recommends using a telephone unit with Continuous DTMF mode. If only Burst mode is available it may be necessary to press more than once. If using the Follow-me feature, program the relevant event codes with any value greater than 00. -
Page 6: Chapter Two: Installation
Chapter Two: Installation 2.1: Parts and Options Standard Parts Penta XL or Penta Plus XL household burglary alarm control panel 3104 or 3104 Plus LED keypad 5 or 9 2.2KΩ ¼W resistors 6 x ¼ screws Mounting studs PCB support... -
Page 7: Wiring Diagram
2.2: Wiring Diagram... -
Page 8: Terminal Connections
2.3: Terminal Connections 15-16.5VAC Input (J1) Terminals 1 & 2: Connect a 15VAC transformer rated at 22-30VA, using 18 AWG wire. Auxiliary Power Output (J1) Terminals 3(+), 4(-): The auxiliary power output connections supply power to keypads and peripheral units such as detectors and other powered sensors. Keypad Data Bus Connections (J1) Terminals 5 &... -
Page 9: Mounting The Keypad
Fire Zone Connections When Zone 1 is defined as Fire, connect four-wire smoke detectors as shown below in Figure 2.4. +12V Figure 2.4: Four-wire Smoke Detector Connections (Zone 1) Telephone Line (J4) Terminals 1, 2, 3, 4 & 5: Connect the telephone line using standard Telco wires (minimum 26 AWG) as follows: 1 - Optional Earth, 2 - Home Tip, 3 - Home Ring, 4 - Telco Tip and 5 - Telco Ring 2.4: Mounting the Keypad... -
Page 10: Turning On The System
If you experience any difficulties in applying power to the unit, please contact Electronics Line 3000’s Technical Support Department. The panel is supplied with a default program that includes typical programming data which means that minimum programming is required for typical installations. -
Page 11: Chapter Three: System Operation
The following diagram shows the keypad layout for the 3104 Plus keypad for use with the Penta Plus XL control panel. The layout of the 3104 keypad, supported by Penta XL control panels, is identical except for the number of zone indicators on the LED display. -
Page 12: Command Codes
Enter a valid user code; the keypad beeps until the end of the exit delay. Forced Arming Forced arming enables you to arm the system with open zones. Electronics Line 3000 recommends waiting until all of the zones are secured and the system can be armed normally. -
Page 13: Distress Keys
Stay Arming This feature only arms perimeter zones – i.e. Perimeter, Perimeter with Delay and Fast Loop Perimeter zones. This allows the user to stay within the protected area while the system is armed. To “Stay” arm the system: Check that all perimeter zones are closed; the Ready LED lights up to indicate that the system is ready to be armed. -
Page 14: User Codes
3.6: User Codes The control panel supports four user codes, a duress code and an installer code. Each of these codes are four digits long. Of the four user codes, only User Code 1 (default 1111) has authorization to modify other user codes and the duress code. The installer’s code (default 1234) is the only user code which grants access to the programming parameters and is programmable at address 83. -
Page 15: Zone Bypassing/Unbypassing
3.7: Zone Bypassing/Unbypassing A bypassed zone is ignored by the system and will not generate an alarm when tripped. To bypass a zone: Press , 1. Enter a valid user code; the System LED flashes and the LEDs of any currently bypassed zones light up. -
Page 16: Additional Operations
3.9: Additional Operations Bell Cancel To cancel the bell: • Enter a valid user code or turn the keyswitch as if disarming the system. Bell/LED Test To perform a bell/LED test: • Press , 4, 1; the siren is sounded and all LEDs on the keypad are lit for a period of two seconds. -
Page 17: Chapter Four: Programming
Chapter Four: Programming 4.1: General The Penta XL series of control panels may be programmed using either the LED keypad from a PC using the Remote Programmer (RP) software. If using the Remote Programmer, refer to the instructions provided with the software. -
Page 18: Programming Parameters
4.3: Programming Parameters The following section lists the programming parameters which are used to configure the system. For a listing of the default parameters please contact your local dealer. Address 00: Communication Attempts The control panel’s attempts to communicate with the central station are organized in rounds. - Page 19 Address 02: Communication Options This address consists of the various options used in communication and/or remote programming. Enter five digits according to the following. First Digit: Stop Communications 0 - Disabled 1 - Enabled Second Digit: RP Access Type 0 - Passcode 1 - Callback Third Digit: RP Access 0 - Disable RP Access...
- Page 20 Address 07: Zone 5 Definition Address 08: Zone 6 Definition Address 09: Zone 7 Definition Address 10: Zone 8 Definition Address 11: Entry Delay Time The entry delay timer determines the amount of time the user has to disarm the system before an alarm is activated.
- Page 21 Event Codes All events can be programmed to transmit a two digit event code message to the central station. These codes are usually assigned by the central station - consult the central station operator/owner for a listing of the different event codes. To disable an event code program the code as 00.
- Page 22 Address 44: System Disarmed (User Code 2) Address 45: System Disarmed (User Code 3) Address 46: System Disarmed (User Code 4) Address 47: System Disarmed (Duress Code) Address 48: Low Battery Address 49: AC Loss Address 50: Bell Trouble Address 51: Keypad Trouble Address 52: Low Battery Restore Address 53: AC Loss Restore Address 54: Bell Trouble Restore...
- Page 23 Communication Protocols You can program an individual communication protocol for each of the three telephone numbers used for central station communications. 00 - 10 BPS 4/2 no parity 01 - Follow Me 02 - Contact ID 03 - Voice Follow Me (3601) Note: If a 3601 Voice Message Module is connected to the control panel, do not program the communication protocol as “01 –...
-
Page 24: Periodic Test Timer Reset
Address 82: Account Number When an event code is sent, the central station receives an account number to identify the customer. Enter a 4-digit account number at this address. Address 83: Installer Code The installer code is a 4-digit code which grants access to programming mode. The default for this code (1234) should be changed immediately after installing the system. -
Page 25: Appendix A: Hexadecimal Conversion Chart
Appendix A: Hexadecimal Conversion Chart The following is a decimal to hexadecimal conversion chart to be used as an aid in programming: -25-... -
Page 26: Appendix B: Glossary Of Terms
Appendix B: Glossary of Terms 24hr Zone A zone which is always active regardless of whether the system is armed or disarmed. Opening a 24hr zone always generates an alarm. AC Loss The disruption of AC power. In the event of AC loss, the panel waits five minutes before sending an event message. - Page 27 Entry Delay See Delay Event Code The two-digit code transmitted to the central station to indicate that an event has occurred. The two event logs record and display events the system has Event Log undergone since the last arming. Exit Delay See Delay Fire Zone A dedicated zone type for verified fire applications.
- Page 28 Primary The first telephone number dialed when an event occurs. Telephone Number Quick Arming Arming the system without the need for a valid user code. Ready The state in which all zones are closed and the system is ready to be armed.
-
Page 29: Index
Index 24hr Zone ........4, 19 F Key..........13 Account Number......23 Fast Loop Perimeter Zone ...4, 19 Additional Operations ...... 16 Fire Key..........13 Answering Machine Override..... 5 Fire Zone........4, 9, 19 Arming ..........12 Follow-me ......... 4 Forced ..........12 General Description ....... - Page 30 Power LED ........12 Telephone Numbers.....4, 23 Power Output........3 Telephone Options......19 Primary Telephone Number..... 23 Terminal Connections ....... 8 Programmable Output ..... 20 Test Bell............16 Programming........17 Walk............. 16 Duress Code........14 Trouble Indication ......20 Guide ..........17 Turning on the System .....10 Parameters ........
