SecuPlace
Quick User Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SecuPlace and is the answer not in the manual?

Questions and answers

Related Manuals for Electronics Line SecuPlace

Summary of Contents for Electronics Line SecuPlace

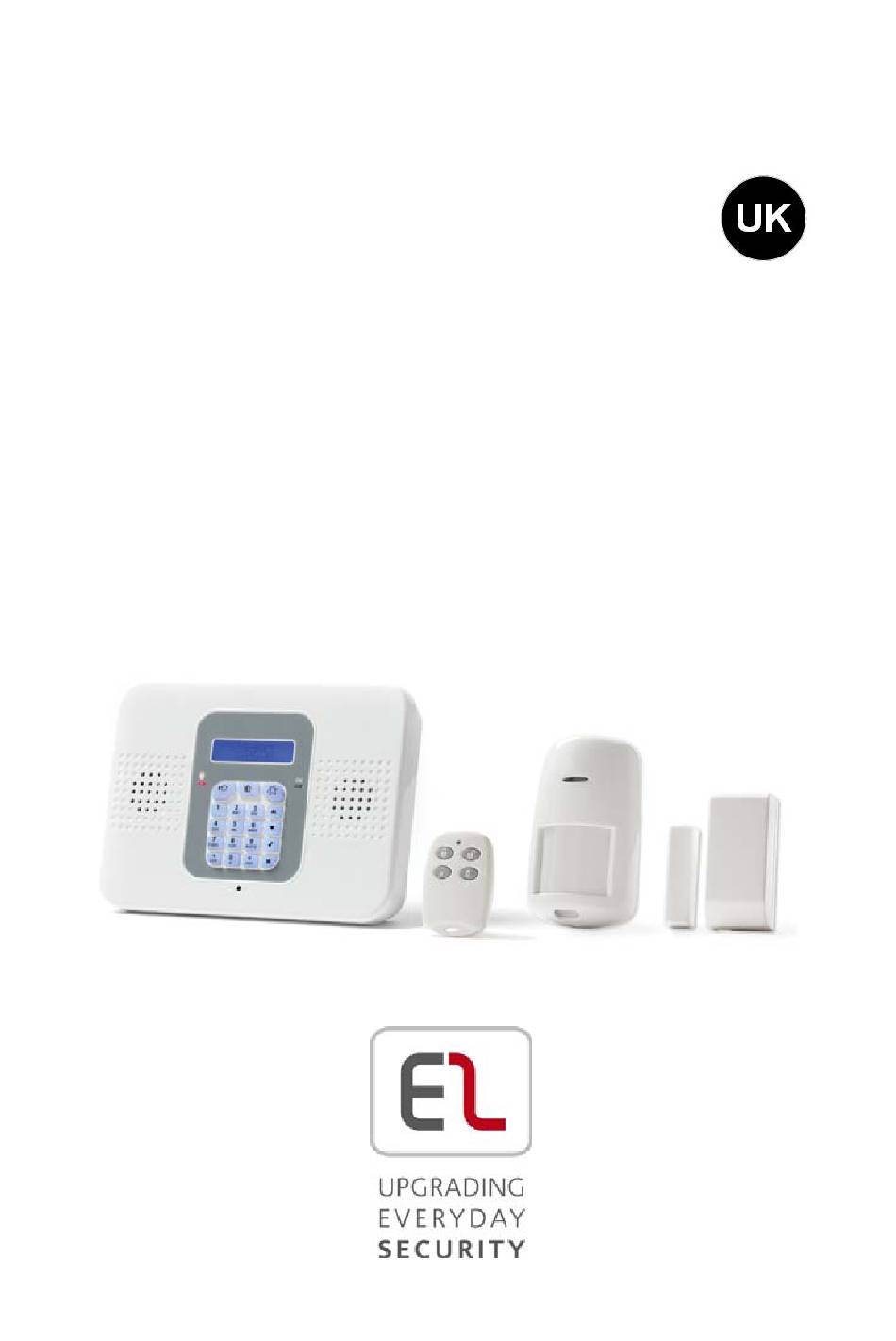

  • Page 1 SecuPlace Quick User Guide...
  • Page 2 Connecting to MyELAS To get started connect to MyELAS via the Web or Smartphone apps. Registering & Logging into MyELAS – Web App To register to MyELAS: 1. Go to: www.MyELAS.com/register. On the registration screen fill in all required fields: 2.
  • Page 3 Registering & Logging into MyELAS – Smartphone App To register to MyELAS: 1. Download the Smartphone app: iOS app Android app 2. On the registration screen fill in all required fields: Android registration screen iOS registration screen 3. Press Register. 4.
  • Page 4 To login to MyELAS: 1. Go to the Login screen. Android login screen iOS login screen 2. Enter the user name and password used when registering. 3. Enter your PIN code (same as your user code – the default master code is 1234). 4.
  • Page 5 Describing Control Panel Keypad & System LEDs Control Panel Keypad Keypad buttons Description Arming – from left to right: full arm, partial arm, perimeter arm Disarming – for disarming the Alphanumeric system. Also silences the sounder. buttons for user code Accept / OK –for confirming selection and for saving.

  • Page 6: Control Panel Leds

    Control Panel LEDs Color State Status Both AC electrical power and battery power are disconnected System power status is ok (no Green On system trouble) Open (activated) zone. Check that the windows and doors are closed Green Flashing and no movement is detected by the detectors within the protected OK LED area.
  • Page 7 Defining Users & Follow-Me Contact SecuPlace supports up to 32 users, each requiring a unique 4-digit user code to operate the system. NOTE: Controlled codes communicate your system commands to the alarm receiving centre, whereas non-controlled codes do not. Slot(s) Code type Description [Controlled] For master user.

  • Page 8: Defining User Codes

    Defining User Codes System user codes are typically designated from MyELAS. They can also be assigned from the control panel by the Master user. To define user codes at the control panel: 1. Press , and then enter the master code (default is 1234) or the engineer code (default is 1111).
  • Page 9 Designating a Follow Me Contact Number Designate the cell phone number of a system user to receive SMS Follow Me notifications of system events. To designate a Follow Me number: 1. At the control panel press , then enter the master code (default is 1234) or the engineer code (default is 1111).
  • Page 10 Performing Commands User-performed commands can be performed at the control panel, keyfob, and via the Smartphone and Web apps. Control Panel and Keyfob Commands Keyfob Command Control Panel Procedure Procedure Full arm Press . Then if prompted enter code. Press Partial Press .
  • Page 11 Keyfob Command Control Panel Procedure Procedure Press and then enter code. Scroll Access menu with , then press mode confirm. 1. Press and enter master code (default is 1234). 2. Press 2. 3. Scroll with to select either: • 2. Unbypass All (to unbypass all zones that have been bypassed).

  • Page 12: Sms Commands

    SMS Commands Command Description SMS Command Code Disarm Full arm Partial arm Perimeter arm Receive system arming status (master user only) To send a command by SMS: From your cell phone, enter text (in the order of this example): Command Description # User Code Command code NOTES: Command description is optional.
  • Page 13 Telephone “Telecontrol” Commands To use Telecontrol commands: 1. Call the phone (regular or cellular) that is connected to the control panel at the premises: [Regular phone]: Wait for 3 rings and hang up. Then wait • at least 5 seconds and dial the number again – after the second ring the system answers and 2 tones are sounded.

  • Page 14: Replacing Keyfob Batteries

    Component Battery Replacement Be sure to replace batteries with the correct type and polarity. See the EL website for battery updates. WARNING: To prevent explosion, fire, damage, injury, or death, do not recharge batteries or expose to high heat. Dispose of used batteries according to applicable law and regulations.
  • Page 15 Contacting your Engineer When in need of service, for ordering components, or for questions related to the system, please retain this information for future use. _________________________________________ Engineer name: Engineer address, _________________________________________ telephone, e-mail: _________________________________________ Hours of business: _________________________________________ Website: Other information: _________________________________________...
  • Page 16 Fax: (+972-3) 961-6584 EL website: www.electronics-line.com RTTE Compliance Statement Hereby, Electronics Line 3000 Ltd. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.electronics-line.com Copyright 2014, Electronics Line 3000 Ltd.
