2. The User Interface
LED Status
Off
On Green
Flashing Red
Alarm indication is not displayed after a silent panic alarm.
System Trouble Indication
In the event that the system detects a trouble condition, "System Trouble" appears on
the display. To identify the problem, scroll through the trouble list by pressing
Scrolling the trouble list also silences system trouble tones that may be sounded if
enabled in programming. When the trouble condition is restored, it is removed from the
system trouble list.
2.2.

Front Panel (LED Configuration)

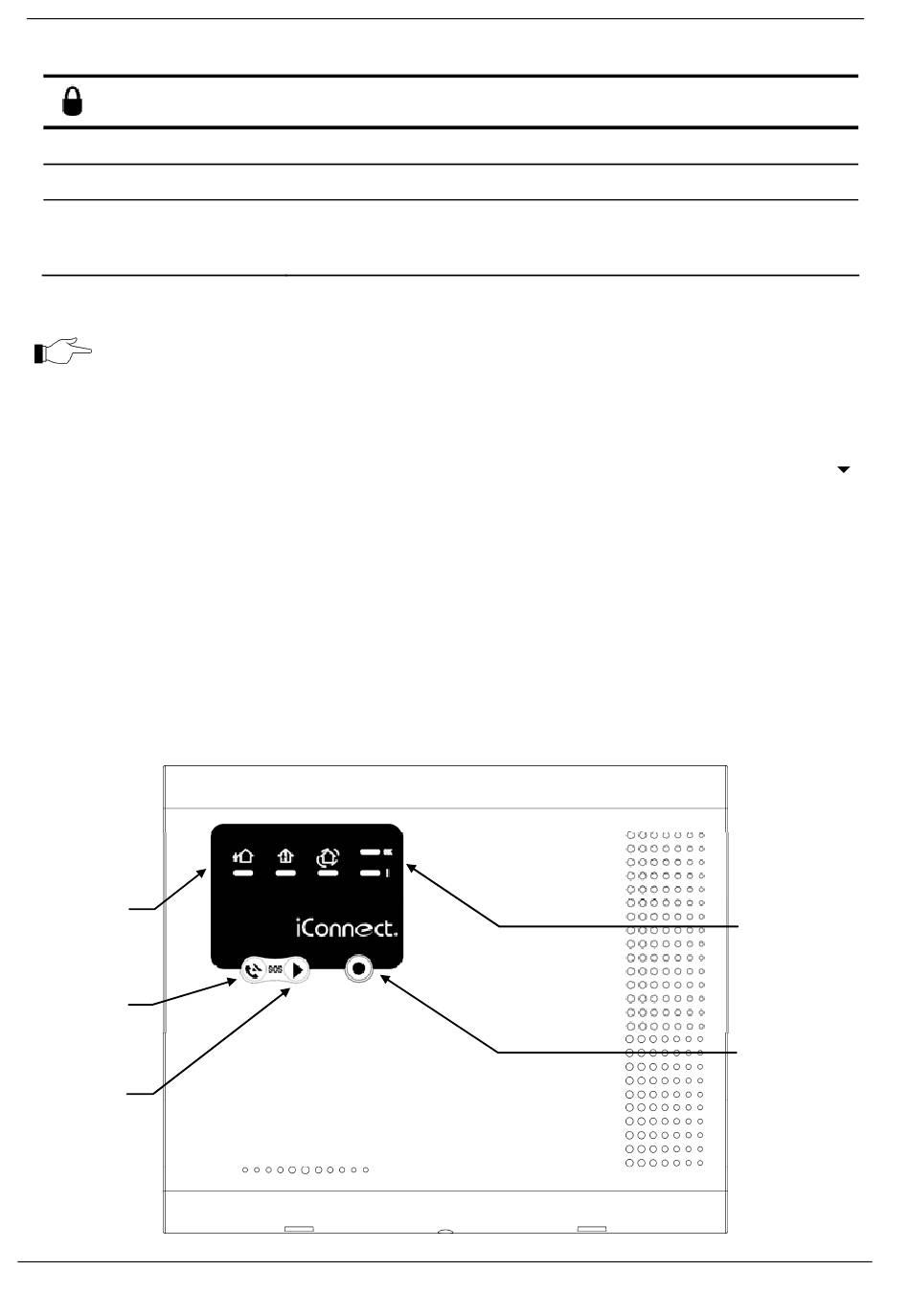

As the name suggests, the LED Front Panel uses only LEDs to inform you of the Control
System status. In addition to System Status LEDs (OK and ʺ!ʺ), there are three Arming
Status LEDs: full, part, and perimeter. The three‐button keypad allows you to make
service call, record and play audio message, and to activate SOS panic alarm.
Arming
Status
LEDs
Service
Call
Button
Message
Play
Button
iConnect User Manual
Meaning
The system is disarmed.
The system is armed.
An alarm has occurred. Alarm indication is cleared the next
time you arm the system or view the relevant event in the
event log.
.
System
Status
LEDs
Message
Record
Button
