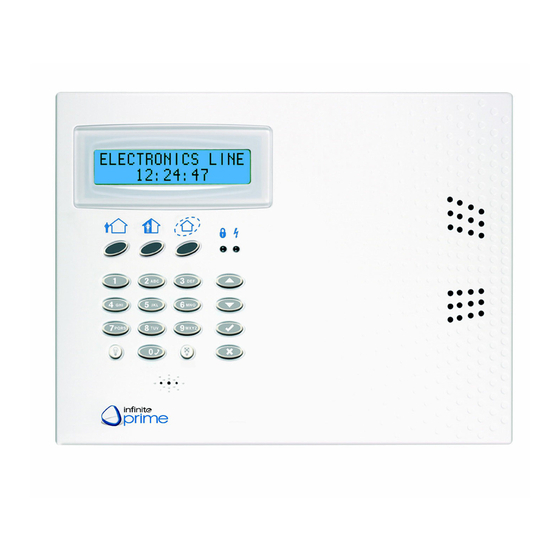

Summary of Contents for Electronics Line infinite prime

  • Page 2 Catalog Number: 5IN1912 All data is subject to change without prior notice. Hereby, Electronics Line 3000 Ltd. declares that this control panel is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Copyright © 2012 Electronics Line 3000 Ltd. All rights reserved.

  • Page 3: Quick Reference Guide

    After recording a message, “Message Waiting” is then MESSAGE displayed until the message is played back. PLAY The Message Center is an optional feature that is then MESSAGE included with certain versions of infinite prime. Telecontrol Commands Function Press Function Press 2-WAY AUDIO UNSET...

  • Page 4: Table Of Contents

    Table of Contents Quick Reference Guide ........................3 Table of Contents ..........................4 Chapter One: Introduction and Overview ..................... 5 1.1: Security System Components ....................5 1.2: System Monitoring ........................6 1.3: Home Automation ........................6 1.4: Self-Monitoring ........................6 1.5: Telecontrol ..........................

  • Page 5: Chapter One: Introduction And Overview

    Chapter One: Introduction and Overview This user manual explains all you need to know about your infinite prime security system and provides step-by-step instructions for all the system’s user functions. In addition to the explanation you will receive from your engineer, we urge you to read this manual so that you can take full advantage of your system’s features.

  • Page 6: System Monitoring

    Home Automation feature using SMS and receive confirmation when the command is received. 1.5: Telecontrol The infinite prime offers a range of “Telecontrol” features that provide remote access via the telephone. These features include remote setting/unsetting, HA on/off, PGM output activation/deactivation, sounder cancel, and Two-Way audio via the control panel’s built-...

  • Page 7: Chapter Two: The User Interface

    Chapter Two: The User Interface There are several methods you can use to operate the system. Apart from the keypad on the front panel, your system may include a number of peripheral devices such as keypads and keyfobs. This chapter provides a brief introduction to each of the devices you can use to operate the system.

  • Page 8: Lcd Keypad

    Alphanumeric Keypad Setting Keys Menu Navigation Keys 2.3: Keyfobs The infinite prime supports two types of keyfob transmitter. The function of the buttons on each keyfob are shown below. Unset Full Set Medical Emergency Part Set Perimeter Set or Home...

  • Page 9: Wireless Keypad

    2.4: Wireless Keypad The system supports up to four wireless keypads. You can use the keypad as an setting station, perform basic home automation functions and generate a panic alarm in the event of emergency. Home Auto/PGM. On Key Battery Status LEDs Numeric Setting Keys...

  • Page 10: Chapter Three: Setting And Unsetting

    Chapter Three: Setting and Unsetting Setting can be defined as activating the system. When the system is set, it monitors the zones that are protected by the sensors. If a sensor detects an intrusion, the system generates an alarm. Certain sensors, such as smoke sensors, are always active regardless of system status. 3.1: Setting the System Three setting modes are available: Full, Part and Perimeter.

  • Page 11: Unsetting The System

    Setting with a Keyfob To set the system using a keyfob: • Press the relevant button on your keyfob (see 2.3: Keyfobs); the exit delay begins to count down. At the end of the exit delay, the system is armed. Forced Setting Forced setting enables you to set when the system is not ready.

  • Page 12: Set Status Indication

    3.3: Set Status Indication The system’s set status is displayed on the front ΔΙΣΑΡΜΕΔ panel only. The following table explains the 11:22:02 various set status descriptions that appear on the LCD display. This Means UNSET The system is unset. FULL ARMED The system has been armed using the displayed setting method.

  • Page 13: Remote Setting/Unsetting Via The Telephone

    Set Status Reply On receiving an Set Status request message, the system returns a status message to the sender. This message includes the system status and the descriptor of the user or the device used to set/unset the system. The following example shows an Set Status reply where the system has been fully armed by a user named Mark.

  • Page 14: Chapter Four: Panic Alarms

    Chapter Four: Panic Alarms Panic alarms enable you to send a message to the monitoring service in the event of an emergency. There are various types of panic alarm and several methods you can use to generate them. 4.1: Keypad Alarms To activate an SOS Panic alarm from the front panel keypad: •...

  • Page 15: Chapter Five: Home Automation And Pgm

    Chapter Five: Home Automation and PGM Home Automation is an optional feature that requires an add-on expansion module. Home Automation enables you to control up to 16 individual lights and appliances around the home. In this section, we shall refer to these lights and appliances as HA units. HA units and the PGM programable output can be controlled using the keypad and keyfobs, remotely by telephone control (DTMF or SMS), or programmed to react to specific system status conditions.

  • Page 16: Sms Control

    5.4: SMS Control If your system supports cellular communication, you can control HA units and PGM remotely via your mobile phone using a number of SMS commands. The SMS commands are designed to be entered as templates on your mobile phone. Each SMS command contains the following elements: •...
  • Page 17 From the HA unit’s sub-menu, select Off Time. Enter a time (HH:MM). Press √ when the desired setting is displayed. Weekly Schedule To program the days of the week that the schedule is active: From the main menu, select HA Schedules [8]. Select an HA unit.

  • Page 18: Chapter Six: Telecontrol

    Chapter Six: Telecontrol The infinite prime control panel offers a range of Telecontrol features that provide remote access via the telephone. These features include Two-Way Audio, remote arming/unsetting and sounder cancel. Two-Way Audio You may use the Two-Way Audio features to check your home in the event of an alarm or as an alternative means of communicating with members of your family.

  • Page 19: Service Call

    The following commands are available: • Press “2” for Two-Way Audio. If the TWA mode is defined as “Simplex” (see 6.5: Simplex Mode), the audio channel opens in Listen mode (microphone active/speaker mute). To switch to Speak mode, press “1” on your telephone. To switch back to Listen mode, press “0”...

  • Page 20: Simplex Mode

    When the control panel calls, you will hear two short tones when you pick up the phone. Press "2" on your telephone to answer the call. If you press “9” to answer the call, the control panel simultaneously cancels the sounder when you answer the call.

  • Page 21: Chapter Seven: Advanced System Operation

    Chapter Seven: Advanced System Operation Besides the basic functions described in the previous chapters, you can access additional functions via the menu. This chapter describes these functions and the menu navigation procedure. Menu Navigation Using the LCD keypad on the front panel, you can navigate through the menus using the menu navigation keys ( / ) and make simple yes/no decisions using the 3 and 7keys.

  • Page 22: Zone Bypassing/Unbypassing

    7.2: Zone Bypassing/Unbypassing When a zone is bypassed, its sensor is ignored by the system and does not generate an alarm when triggered. To omit a zone: From the Omit Zones menu, select Omit. [21]. Using the arrow keys, scroll to the zone you want to omit. Press √...
  • Page 23 Code 29: Telecontrol Code The Telecontrol code is designed to enable the user to perform a number of tasks via their telephone using DTMF commands. Using this code, the user can call their system to set and unset, turn on and off HA units, activate and deactivate the PGM output, cancel the sounder or establish Two-Way Audio communication.

  • Page 24: Follow Me

    7.4: Follow Me The Follow Me feature is designed to notify you when events have occurred within your security system. This notification may be an SMS message to your mobile phone. Alternatively, the control panel can call you in the event of an alarm so that you may check your family and home using the Two-Way Audio feature.

  • Page 25: Service Menu

    7.6: Service Menu The Service menu includes various functions that enable you to test your system effectively. You can gain access to the Service menu using the Master code. Set Time & Date To set the time: From the Service menu, select Set Time/Date, Set Time [7011]. Enter the current time.
  • Page 26 Sounder Tests To test the external wireless sounder: • From the Service menu, select WL Sounder Test [703]; the wireless sounder is sounded briefly. To test the built-in sounder: • From the Service menu, select Sounder Test [704]; the built-in sounder is sounded briefly.
  • Page 27 The second utility, TX Test enables you to identify transmitters. In TX Test mode, each time a transmission is received, a chime is sounded and the activated transmitter is displayed. To initiate TX Test mode: From the Service menu, select Transmitters, TX Test [7072]. Activate a transmitter;...

  • Page 28: Appendix A: Menu Structure

    Appendix A: Menu Structure Legend: Engineer code required Master code required -28-...

  • Page 29: Appendix B: Glossary

    Appendix B: Glossary A sensor which is always active regardless of whether the system is 24hr Zone armed or unset. The state during which the security system is activated. In most Armed cases, when the system is armed, triggering a sensor generates an alarm.
  • Page 30 A feature that enables/disables the Chime feature for the entire Global Chime system – see Chime. Home Automation Units (abbr.). The lights and appliances in the HA Units home that are controlled by the optional Home Automation feature. An optional feature that enables the user to control electrical Home Automation appliances and lights via the control panel.
  • Page 31 A Home Automation feature that switches HA units on and off Scheduling automatically according to pre-set times. The devices installed around the home that alert the panel in the Sensors event of an alarm. Service Call A feature that enables the user to contact the monitoring service and talk to an operator via the control panel.
  • Page 32 Electronics Line 3000 Ltd.: 14 Hahoma St. Rishon Le Zion 75655 Israel Tel:(+972-3)9637777 Fax:(+972-3)9616584 Electronics Line 3000 Ltd. 07/2012 5IN1912 -32-...
