Figure 42 Ground the switch through the PE wire of the AC power supply
(1) Three-wire AC power input cable

Connecting the power cord

CAUTION:
Before powering on the switch, you must connect the power cord and make sure the switch is well
grounded.

Connecting the AC power cord

Connecting the AC power cord for an S3100V2-TP-SI/S3100V2-TP-EI switch
Follow these steps to connect the AC power cord for an S3100V2-TP-SI/S3100V2-TP-EI switch:
Wear an ESD-preventive wrist strap, and make sure the wrist strap makes good skin contact and is well
Step1
grounded.
Insert the power cord plug into the power receptacle, as shown in
Step2
Connect the other end of the AC power cord to the AC power source.
Step3
Check the power LED (Power) on the front panel. If the LED is on, the power cord is properly connected.
Step4

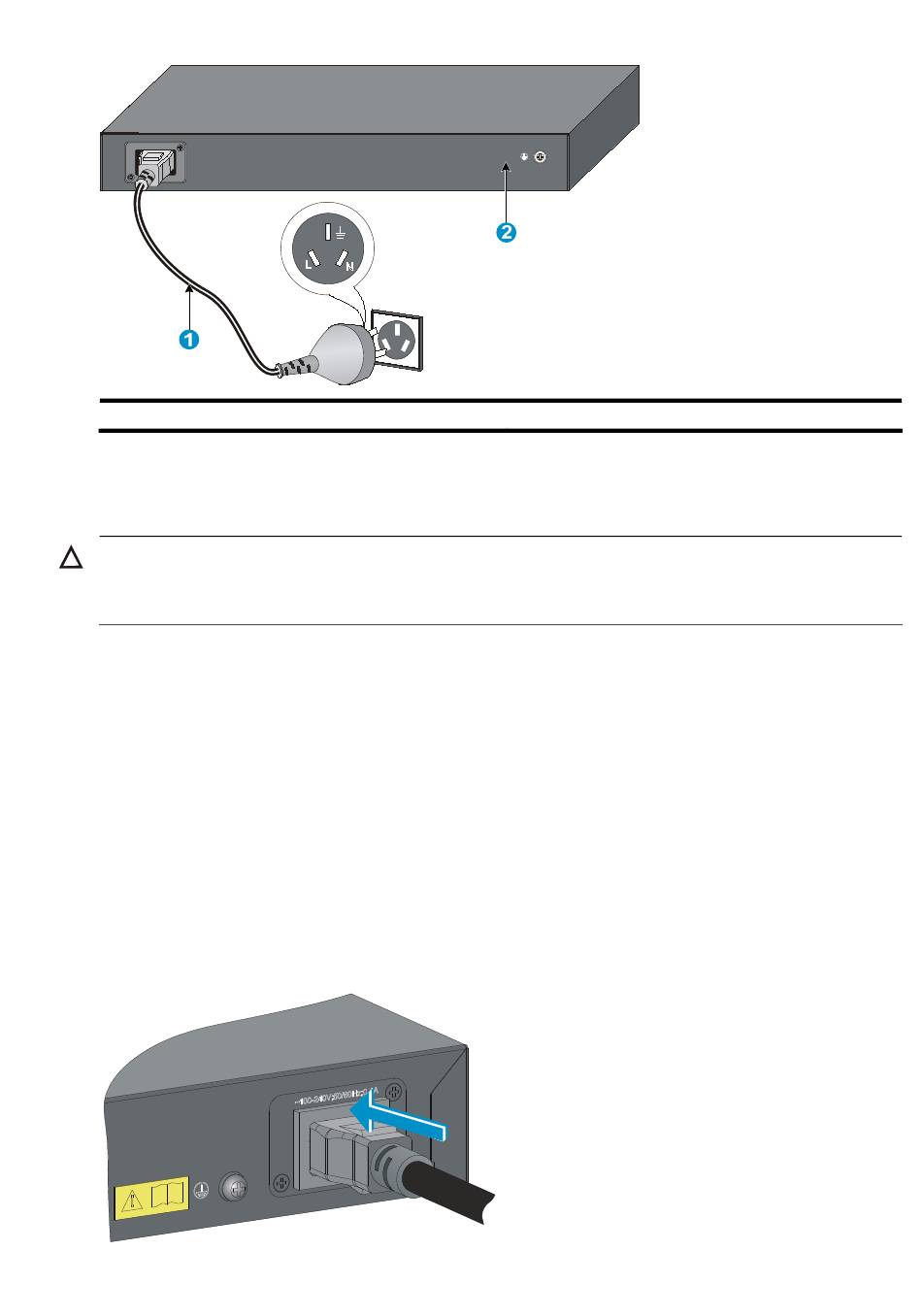

Figure 43 Connect the AC power cord (I)
(2) Switch rear panel
32
Figure 43.
