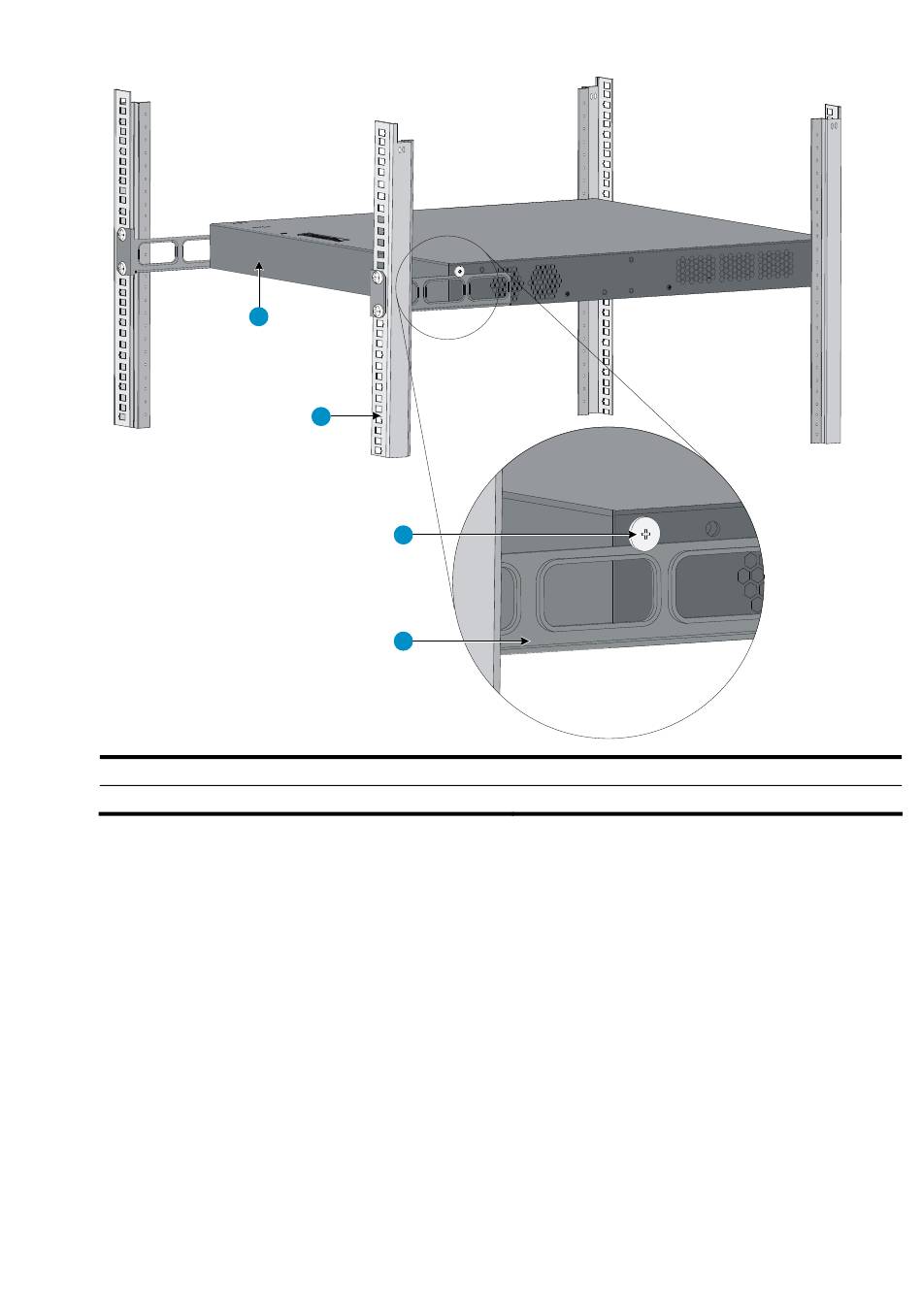

Figure 28 Mount the switch to the rack by using front and rear mounting brackets
(1) Switch rear panel
(3) Load-bearing screw
Have another person to fix the front mounting brackets to the front rack posts by using the M6 screws,
Step8
making sure that the front and rear mounting brackets can fix the switch steadily into the rack, as shown
in
Figure
29.
1
2
3
4
(2) Rear rack post
(4) Rear mounting bracket
22
