Table 29 Description on commonly used Ethernet cables
Type
Category 5
Category 5e
Category 6
Based on pinouts
Ethernet twisted pair cables can be classified into straight through and crossover cables based on their
pinouts.
Straight-through: The pinouts at both ends comply with standard 568B, as shown in
•
Crossover: The pinouts at one end comply with standard 568B, and those at the other end comply
•
with standard 568A, as shown in

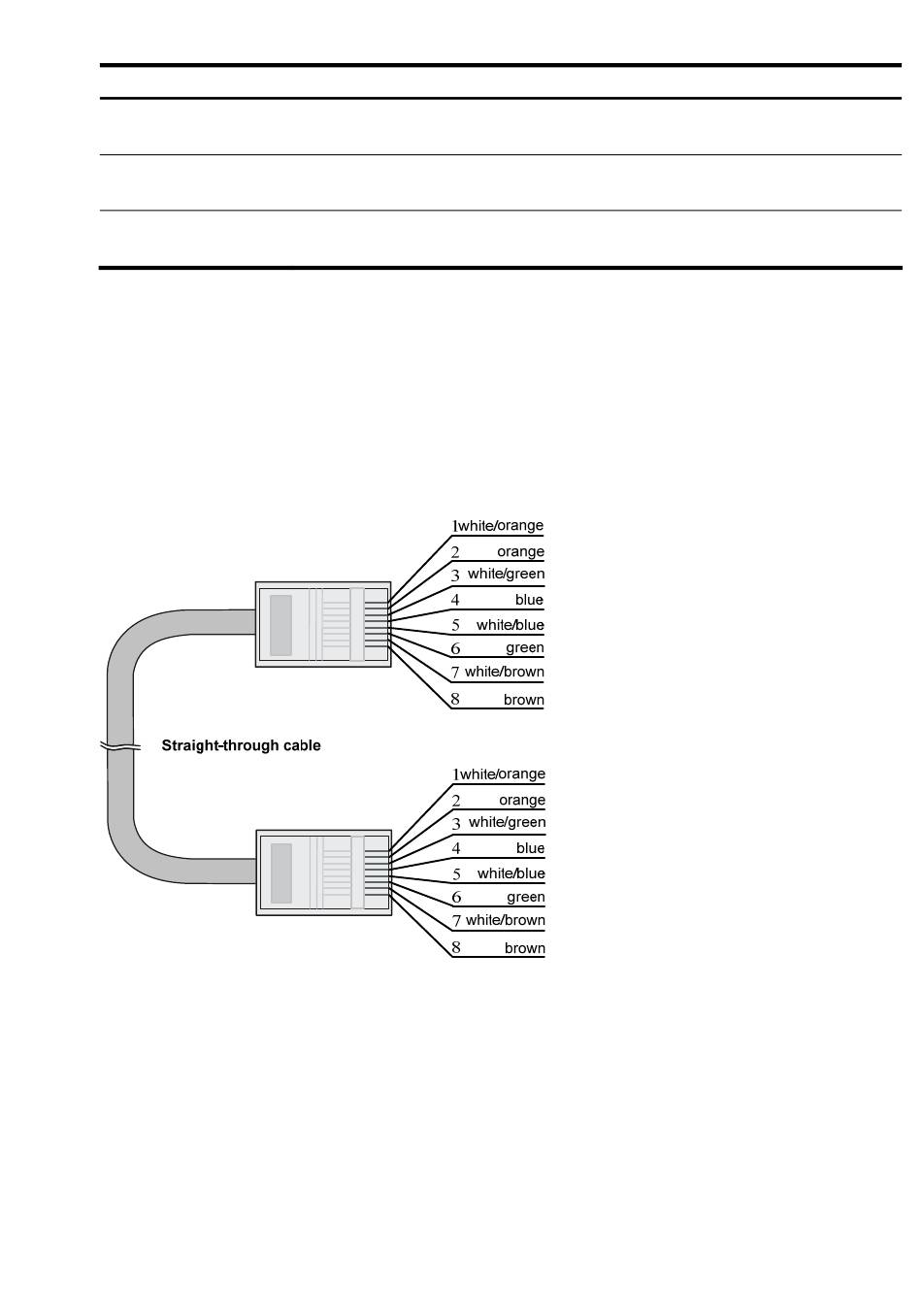

Figure 60 Straight-through cable
Description
Suitable for data transmission at a maximum speed of 100 Mbps, with a bandwidth
of 100 MHz.
Suitable for data transmission at a maximum speed of 1000 Mbps, with a
bandwidth of 100 MHz.
Suitable for data transmission at a speed higher than 1 Gbps, with a bandwidth of
250 MHz.
Figure 61.
60
Figure 60.
