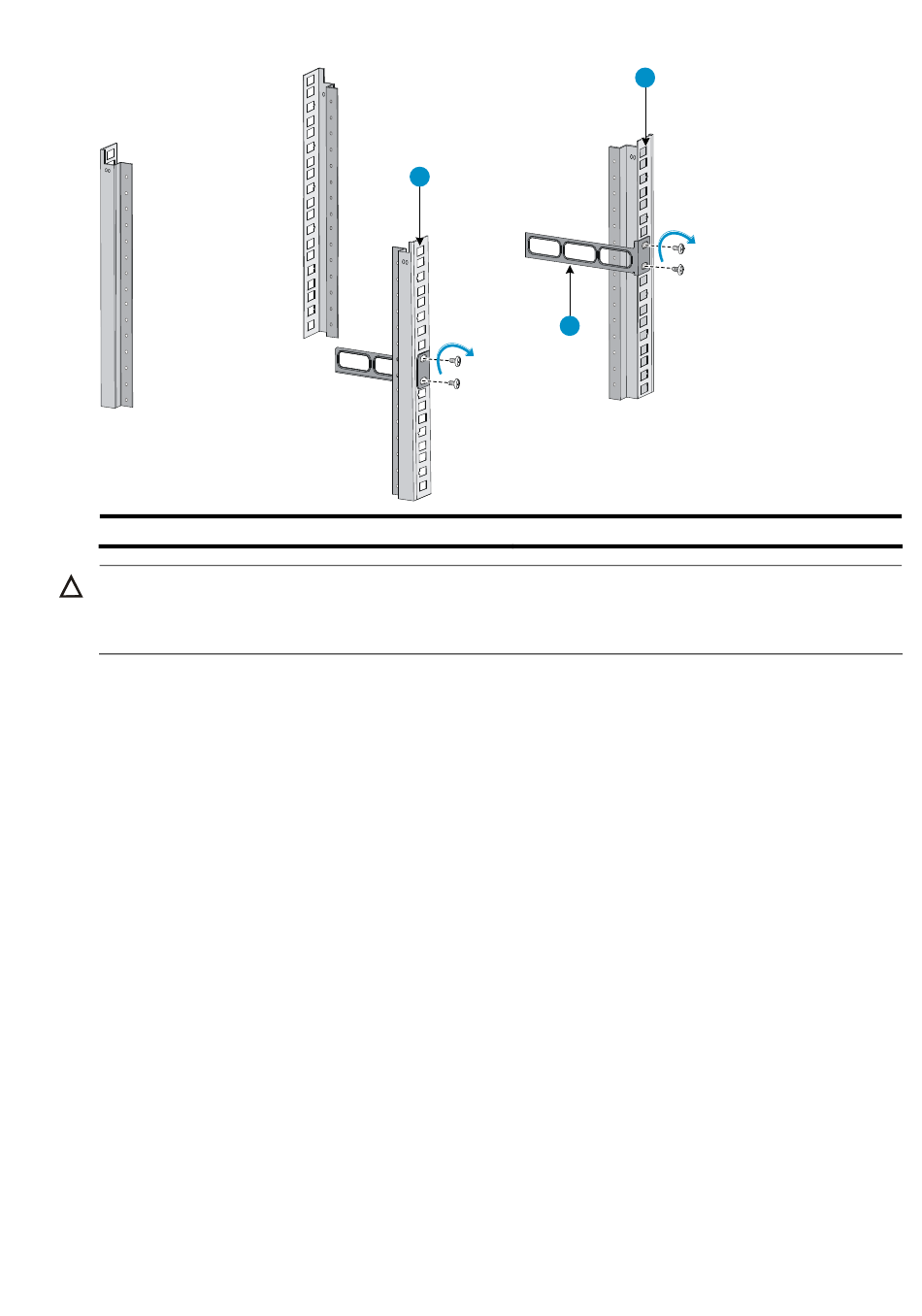

Figure 27 Mount the switch to the rack by using rear mounting brackets
1
1
2
(1) Rack posts
(2) Rear mounting bracket
CAUTION:
Make sure the thinner edge of the rear mounting bracket faces upwards to ensure that the mounting
bracket can make close contact with the load-bearing screws.
Supporting the switch bottom with one hand, use the other hand to push the switch into the rack until the
Step7
load-bearing screws on the switch make close contact with the upper edge of the rear mounting bracket,
as shown in
Figure
28.
21
