Follow these steps to set terminal parameters:
Select Start > All Programs > Accessories > Communications > HyperTerminal to enter the
Step1
HyperTerminal window. The Connection Description dialog box appears, as shown in

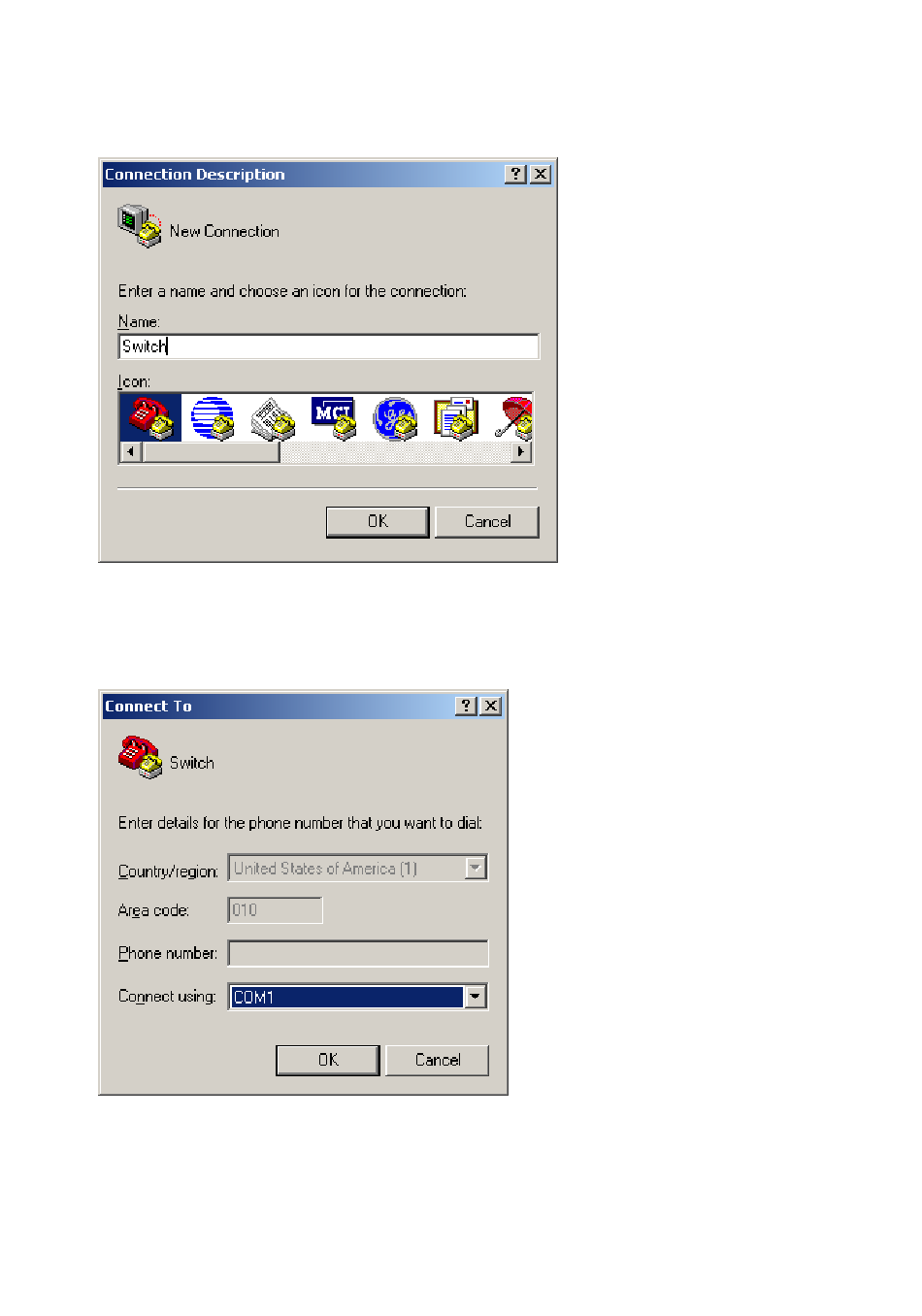

Figure 50 Connection description of the HyperTerminal
Type the name of the new connection in the Name text box and click OK. The following dialog box
Step2
appears. Select the serial port to be used from the Connect using drop-down list.
Figure 51 Set the serial port used by the HyperTerminal connection
Click OK after selecting a serial port and the following dialog box appears. Set Bits per second to 9600,
Step3
Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None.
38
Figure 50.
