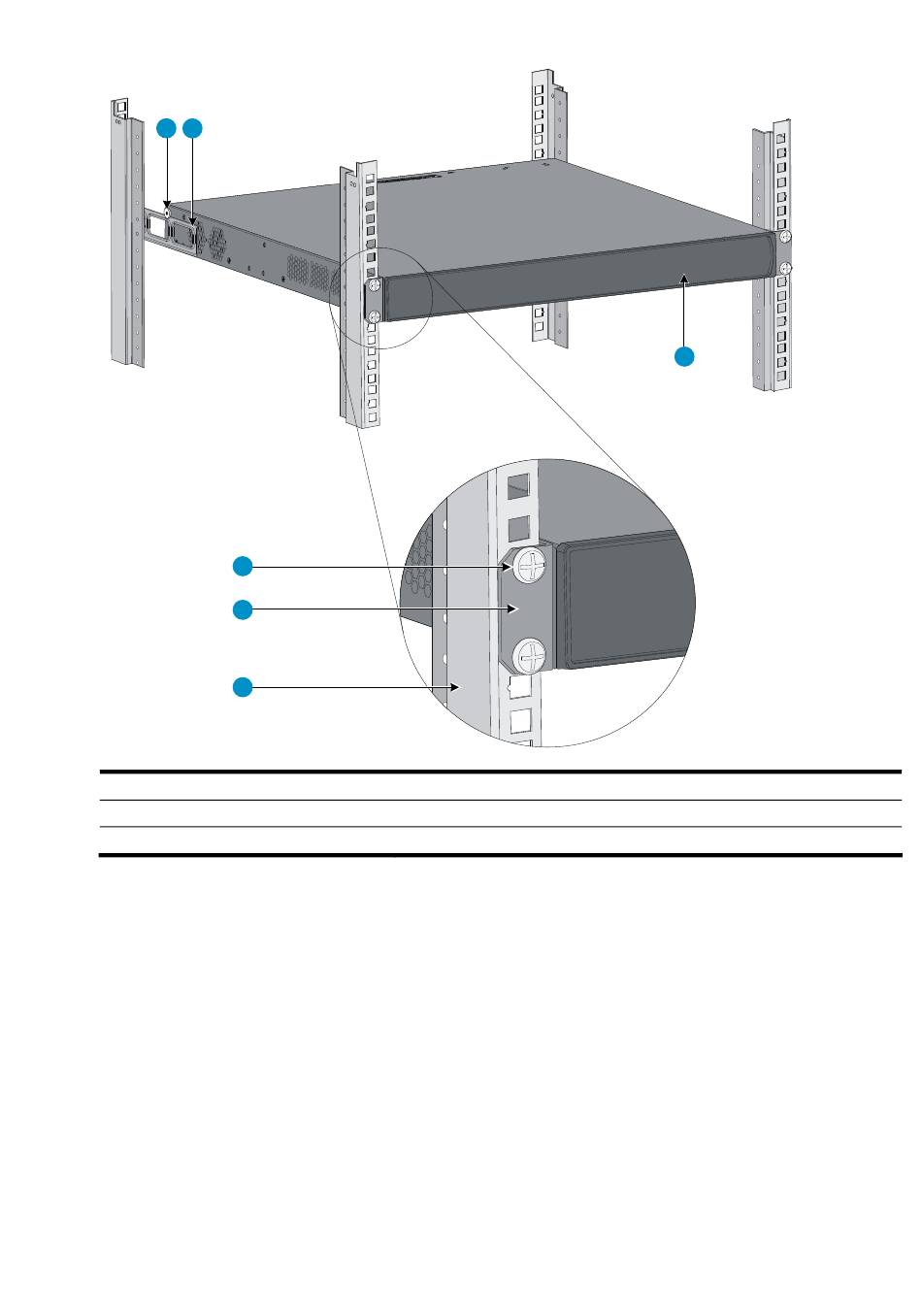

Figure 29 Mount the switch to the rack by using front and rear mounting brackets
1 2
(1) Load-bearing screw
(3) Switch front panel
(5) Front mounting bracket
Rack mounting by using front mounting brackets and slide rails
Follow these steps to mount the switch to the rack by using front mounting brackets and slide rails:
Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded,
Step1
check that the rack is sturdy and well grounded.
Unpack the screws (packed with the front mounting brackets), and install the mounting brackets to the
Step2
switch with the screws, as shown in
Plan the position of the switch in the rack. Install the slide rails by using M5 tapping screws to the
Step3
corresponding positions on the rack posts, as shown in
Install the cage nuts to the corresponding positions on the rack posts.
Step4
4
5
6
(2) Rear mounting bracket
(4) M6 screw for fix the front mounting bracket to the rack
(6) Front rack post
Figure 24.
Figure 30.
