Product overview

Switch models

Table 1 lists the switch models in the H3C S3100V2 Switch Series.
Table 1 H3C S3100V2 Switch Series
Sub-series
S3100V2-SI
S3100V2-EI

Panel views

S3100V2-26TP-SI/S3100V2-26TP-EI
Front panel

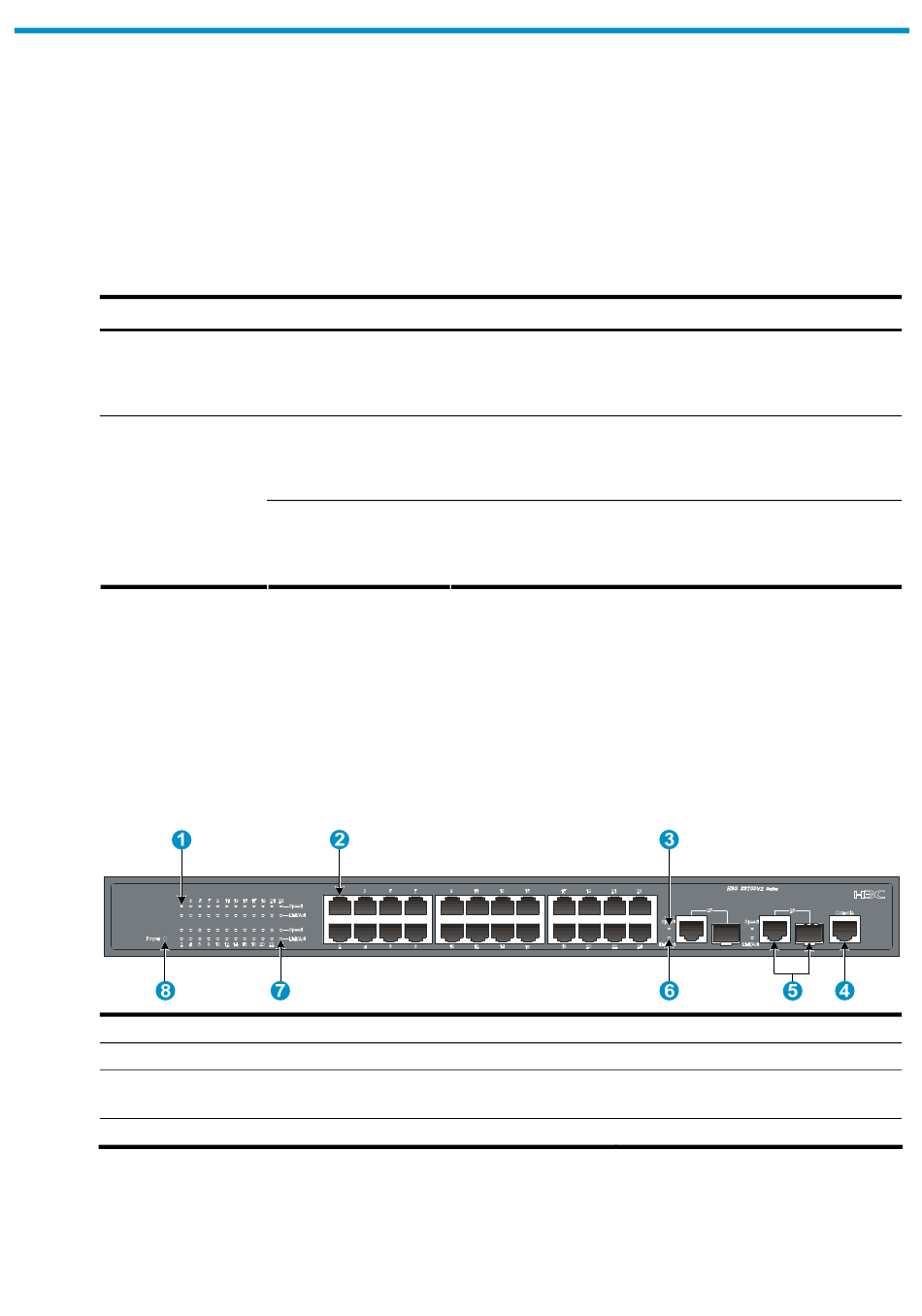

Figure 1 S3100V2-26TP-SI/S3100V2-26TP-EI front panel
(1) Speed LED for a 10/100Base-TX Ethernet port
(3) Speed LED for a combo interface
(5) Combo interface (10/100/1000Base-T Ethernet port on the left,
100/1000Base-X SFP port on the right)
(7) Link/Act LED for a 10/100Base-TX Ethernet port
S3100V2-TP-SI
(fanless)
S3100V2-TP-EI
(fanless)
S3100V2-TP-PWR-EI
(built-in fans)
Switch models
•
S3100V2-8TP-SI
•
S3100V2- 1 6TP-SI
•
S3100V2-26TP-SI
•
S3100V2-8TP-EI
•
S3100V2- 1 6TP-EI
•
S3100V2-26TP-EI
•
S3100V2-8TP-PWR-EI
•
S3100V2- 1 6TP-PWR-EI
•
S3100V2-26TP-PWR-EI
(2) 10/100Base-TX Ethernet port
(4) Console port
(6) Link/Act LED for a combo
interface
(8) Power LED
