S3100V2-16TP-PWR-EI
Front panel

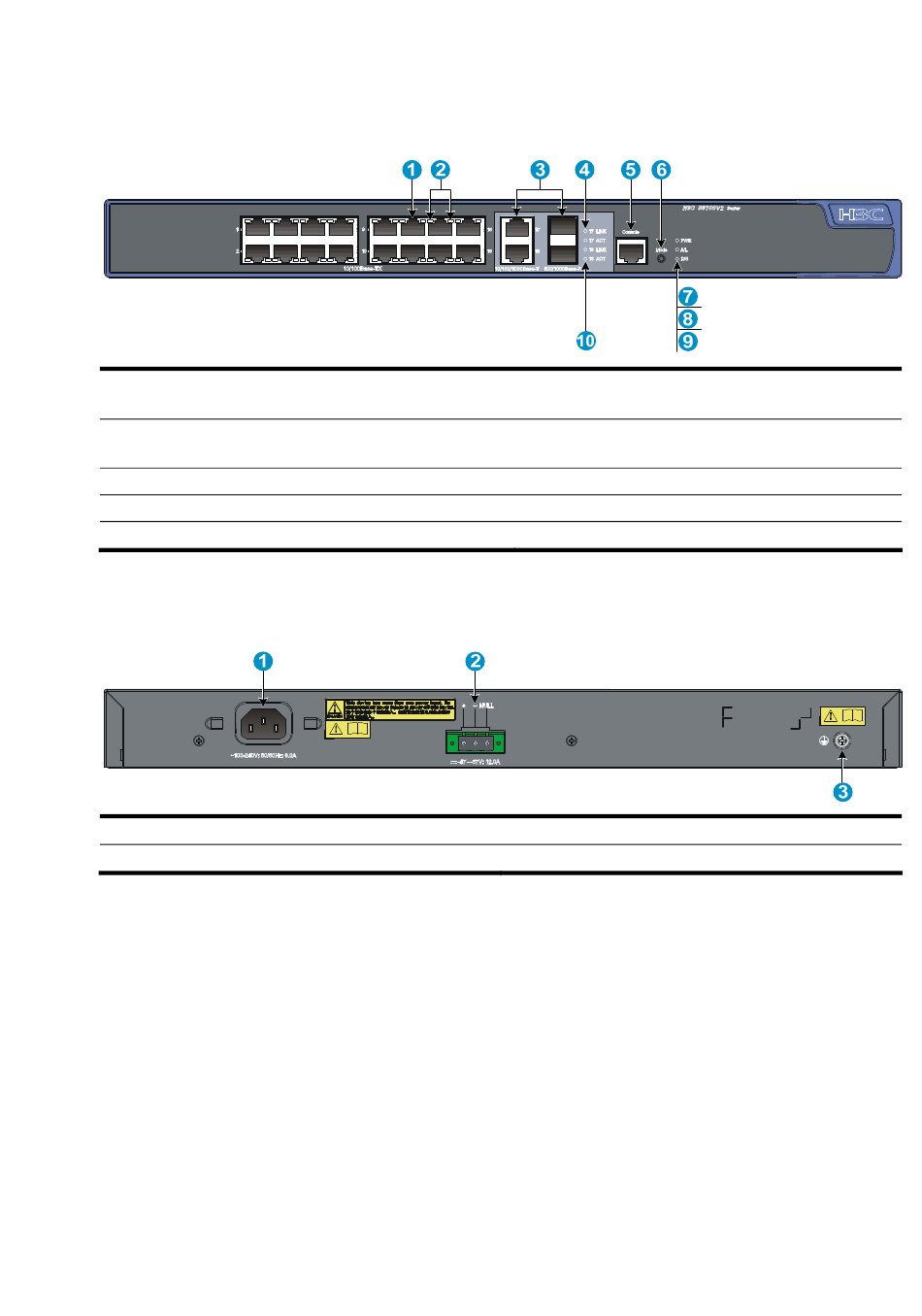

Figure 9 S3100V2-16TP-PWR-EI front panel
(1) 10/100Base-TX Ethernet port
(3) Combo interface (10/100/1000Base-T Ethernet
port on the left, 100/1000Base-X SFP port on the right)
(5) Console port
(7) Power (PWR) LED
(9) Port mode (D/S) LED
Rear panel
Figure 10 S3100V2-16TP-PWR-EI rear panel
(1) AC-input power receptacle
(3) Grounding screw
(2) 10/100Base-TX Ethernet port LEDs (left: yellow,
right: green)
(4) LINK LED for a combo interface
(6) Port LED mode switching (Mode) button
(8) Port mode (A/L) LED
(10) ACT LED for a combo interface
(2) DC-input terminal block
