H3C S3100V2 Series Installation Manual page 32

Insert the expansion anchors into the holes, and remove the hex nut, spring washer, and flat washer from
Step3
each expansion anchor, as shown in

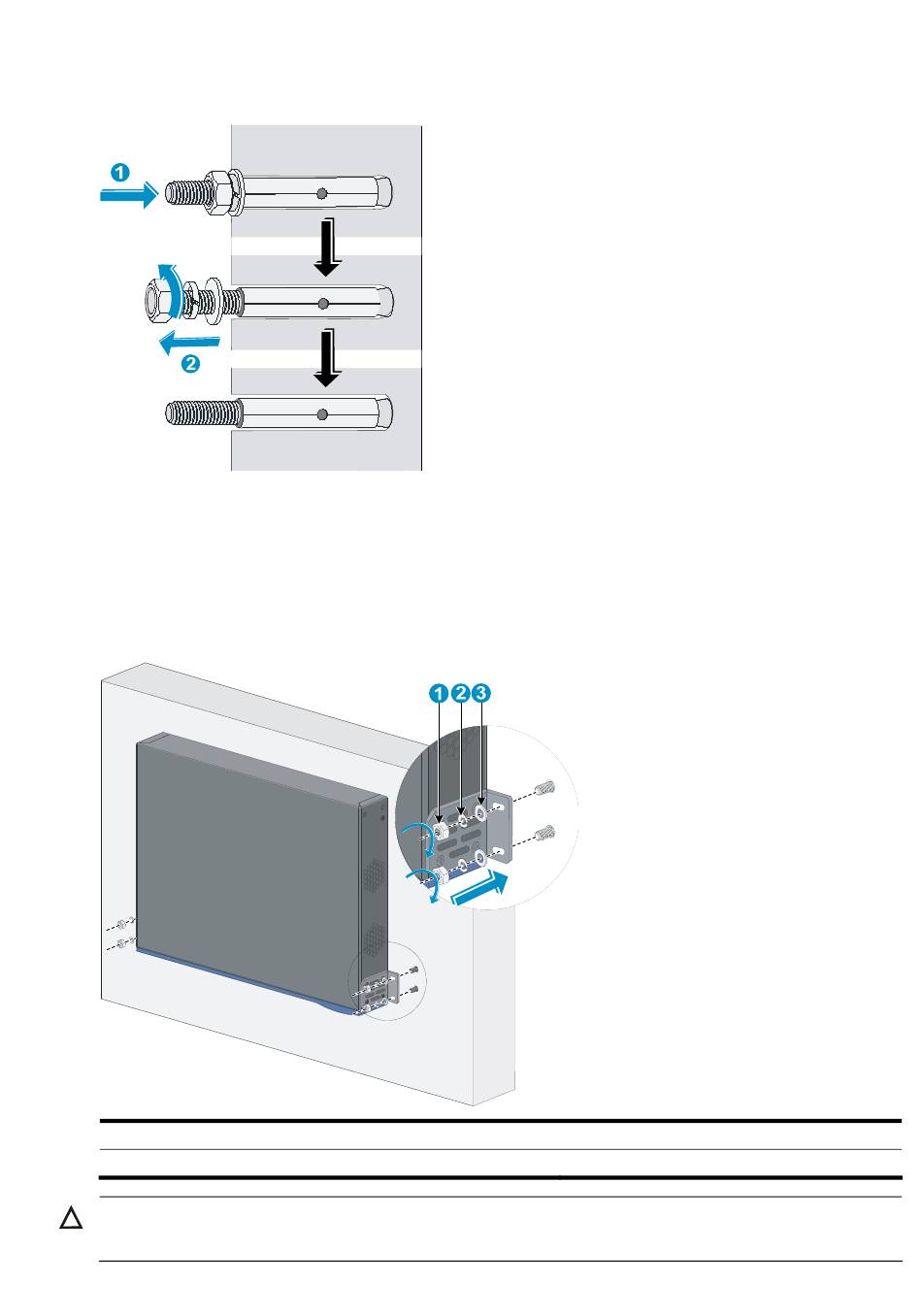

Figure 34 Install an expansion anchor
Supporting the switch with the network ports facing downwards, insert the mounting brackets into the
Step4
four expansion anchors.
Attach the flat washer, spring washer, and hex nut in turn to each expansion anchor, and fasten the hex
Step5
nut with a wrench, as shown in
Figure 35 Mount the switch on a wall
(1) Hex nut
(3) Flat washer
CAUTION:
Make sure the front and rear of the chassis are perpendicular to the floor.
Figure 34.
Figure 35.
26
(2) Spring washer
