Connecting the AC power cord for an S3100V2-TP-PWR-EI switch
The S3100V2-TP-PWR-EI is supplied with a bail latch to secure the AC power cord to the switch.
Follow these steps to connect the AC power cord for an S3100V2-TP-PWR-EI switch:
Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.
Step1
Install the bail latch by inserting the two ends of the bail latch into the slots at the two sides of the AC
Step2
power receptacle, and then push the bail latch upwards, as shown in
Connect the other end of the AC power cord to the AC power receptacle on the switch rear panel, as
Step3
shown in callout 1 in
in callout 2 in
Connect the other end of the AC power cord to the AC power source.
Step4
Check the power LED (PWR) on the front panel. If the LED is on, the power cord is properly connected.
Step5

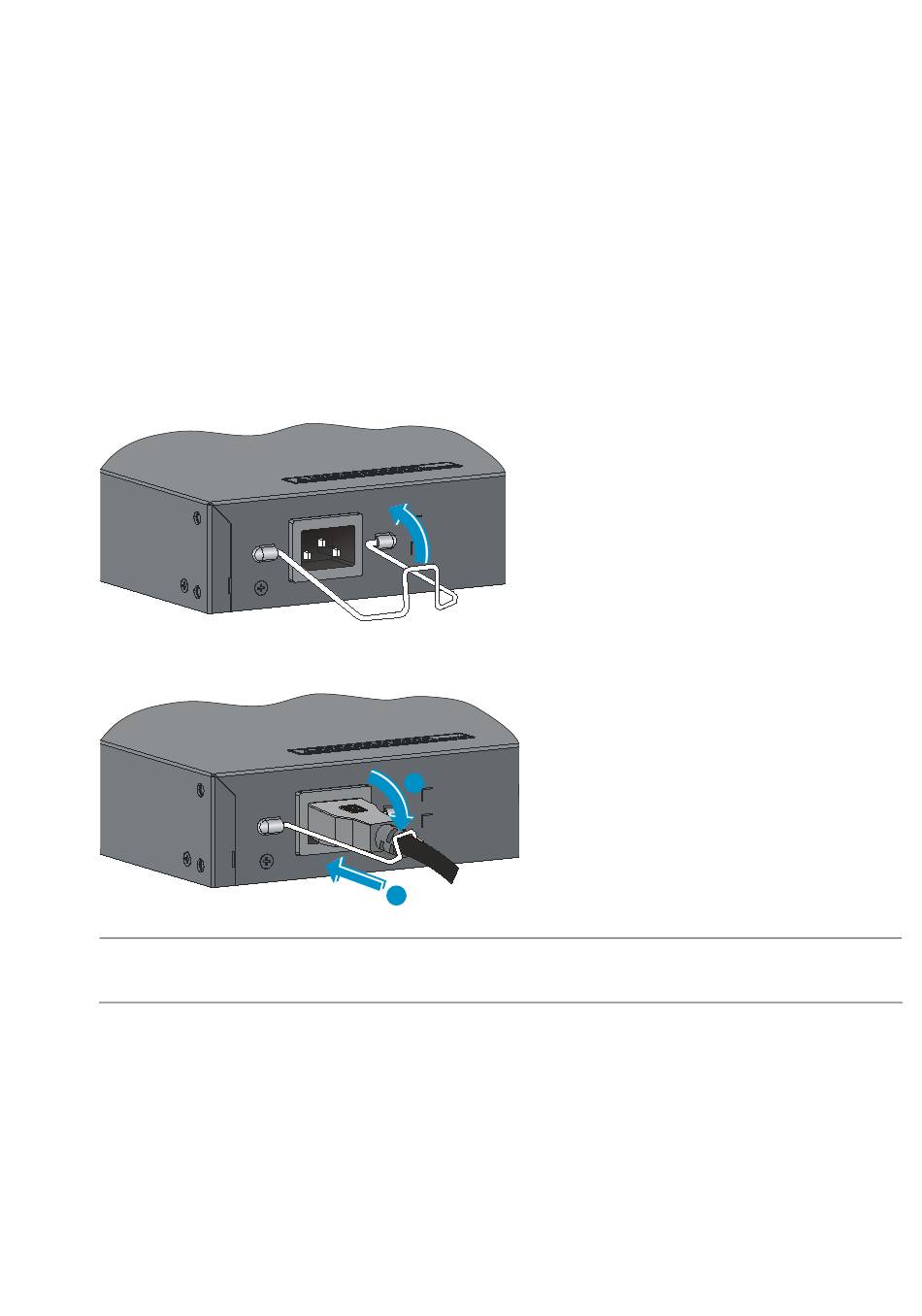

Figure 44 Connect the AC power cord (II)
Figure 45 Connect the AC power cord (III)
NOTE:
The positions of bail latch slots on the switch depend on your switch model.

Connecting the DC power cord

The S3100V2-26TP-PWR-EI/S3100V2- 1 6TP-PWR-EI provides a DC power receptacle as shown in
46. You can use the –48 VDC power in the equipment room or the H3C RPS DC power input.
Figure 45. Push the bail latch downwards to secure the AC power cord, as shown
Figure 45.
2
1
33
Figure 44.
Figure
