S3100V2-8Tp-Si/S3100V2-8Tp - H3C S3100V2 Series Installation Manual

S3100V2-8TP-SI/S3100V2-8TP-EI
Front panel

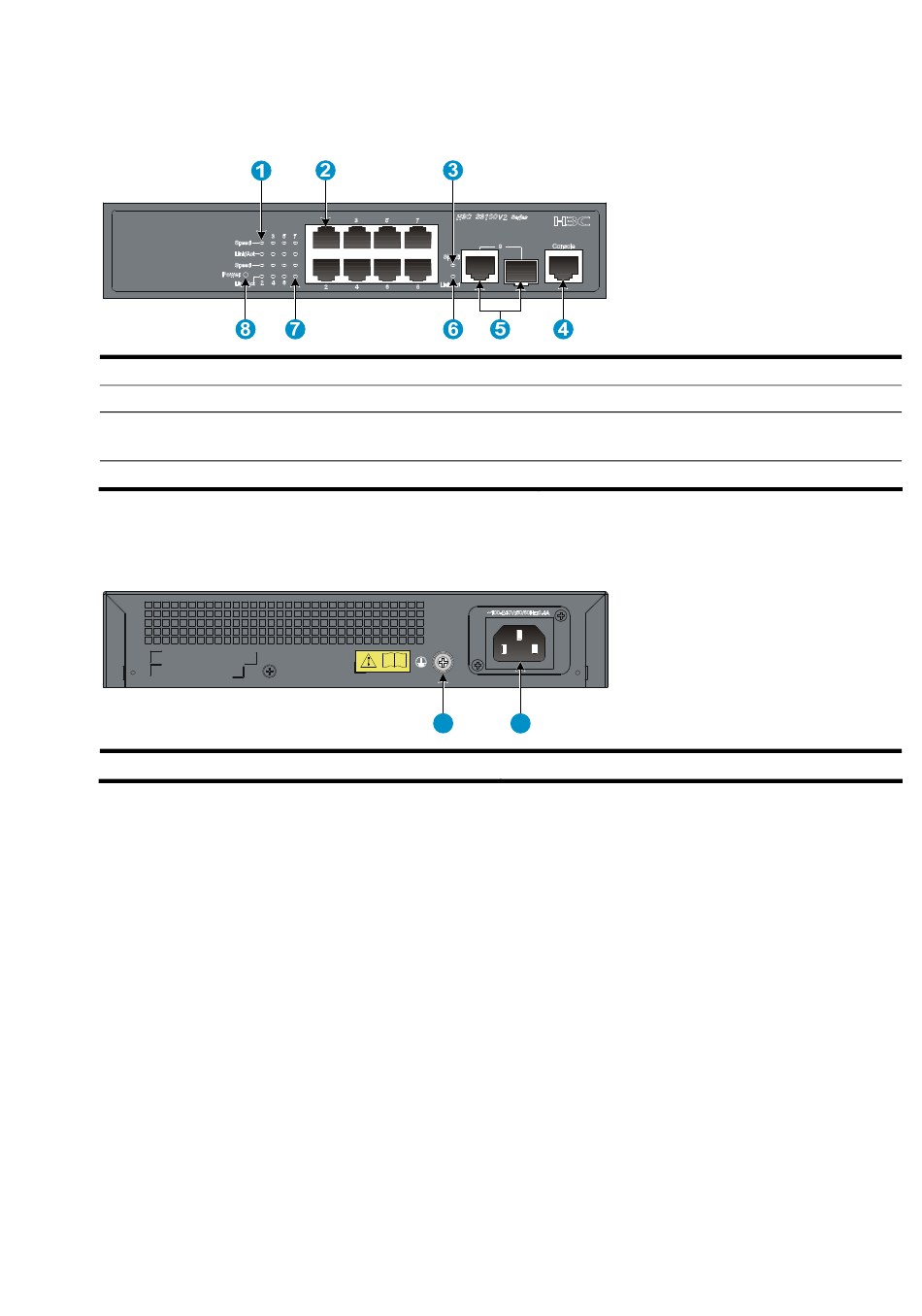

Figure 5 S3100V2-8TP-SI/S3100V2-8TP-EI front panel
(1) Speed LED for a 10/100Base-TX Ethernet port
(3) Speed LED for a combo interface
(5) Combo interface (10/100/1000Base-T Ethernet port
on the left, 100/1000Base-X SFP port on the right)
(7) Link/Act LED for a 10/100Base-TX Ethernet port
Rear panel
Figure 6 S3100V2-8TP-SI/S3100V2-8TP-EI rear panel
(1) Grounding screw
(2) 10/100Base-TX Ethernet ports
(4) Console port
(6) Link/Act LED for a combo interface
(8) Power LED
1 2
(2) AC-input power receptacle
3
