H3C S3100V2 Series Installation Manual page 26

Unpack the load-bearing screws (packed with the rear mounting brackets), and install them to the
Step4
appropriate positions on the two sides of the switch, as shown in

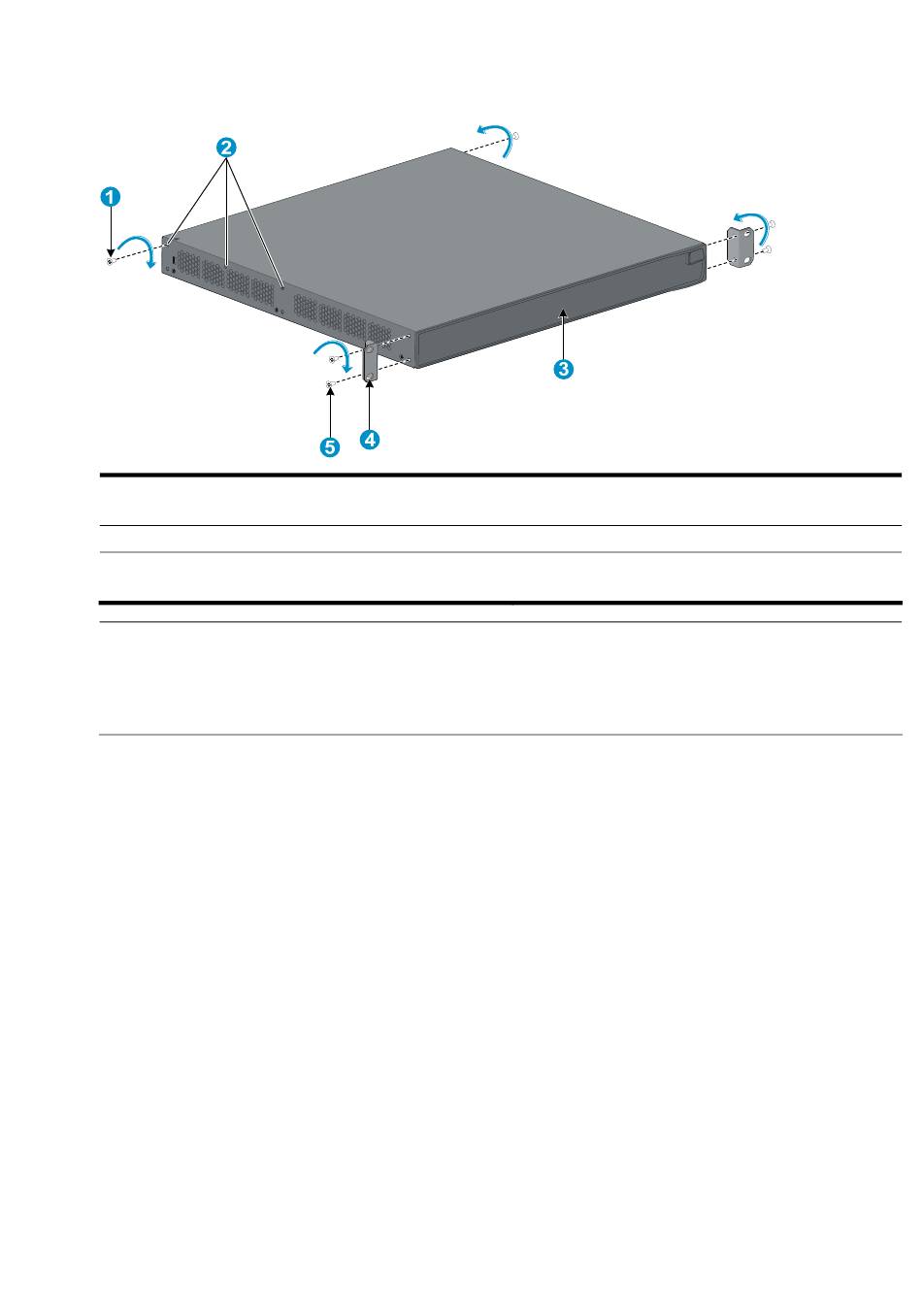

Figure 26 Rack mounting by using front and rear mounting brackets
(1) Load-bearing screw
(3) Switch front panel
(5) Screw (packaged with the front mounting bracket)
for fixing the front mounting bracket to the switch
NOTE:
The switch provides three positions on both sides to mount a load-bearing screw. Select a proper position
according to the actual requirements. The rear mounting brackets support the switch by the load-bearing
screws.
Determine where to install the switch to the rack, and install the cage nuts to the corresponding positions
Step5
on the front and rear rack posts.
Fix the rear mounting brackets to the rear rack posts by using the M6 screws, as shown in
Step6
Figure
(2) Load-bearing screw positions (select one as
needed)
(4) Front mounting bracket
20
26.
Figure 27.
