Installing A Compute Module And Its Main Board - H3C UniServer R6900 G3 User Manual

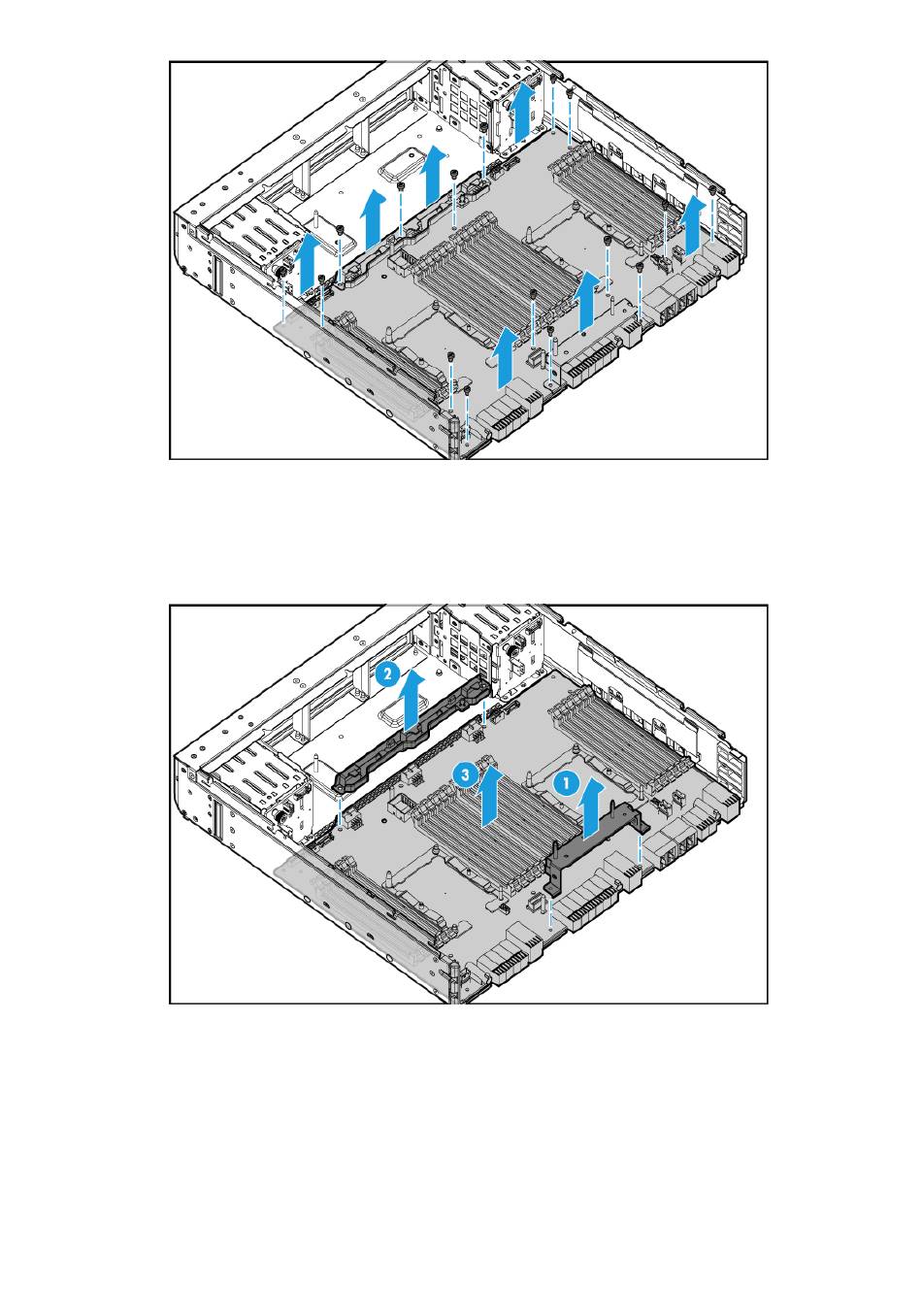

Figure 7-5 Removing the screws on a main board
b. Lift the cable clamp and the riser card bracket from the main board, as shown by callouts 1
and 2
c. Lift the main board slowly out of the compute module, as shown by callout 3 in
Figure 7-6 Removing the cable clamp, riser card bracket, and main board

Installing a compute module and its main board

Install the main board in the compute module:
1.
a. Align the installation holes on the main board with the screw holes on the compute module,
as shown by callout 1 in
module.
b. Put the cable clamp and the riser card bracket onto the main board, as shown by callouts 2
and 3 in
bracket are aligned with the screw holes on the main board.
Figure 7-6.
Figure
Figure 7-7. Make sure the installation holes on the cable clamp and the riser card
7-7. Then, place the main board slowly in the compute
7-5
Figure 7-6.
