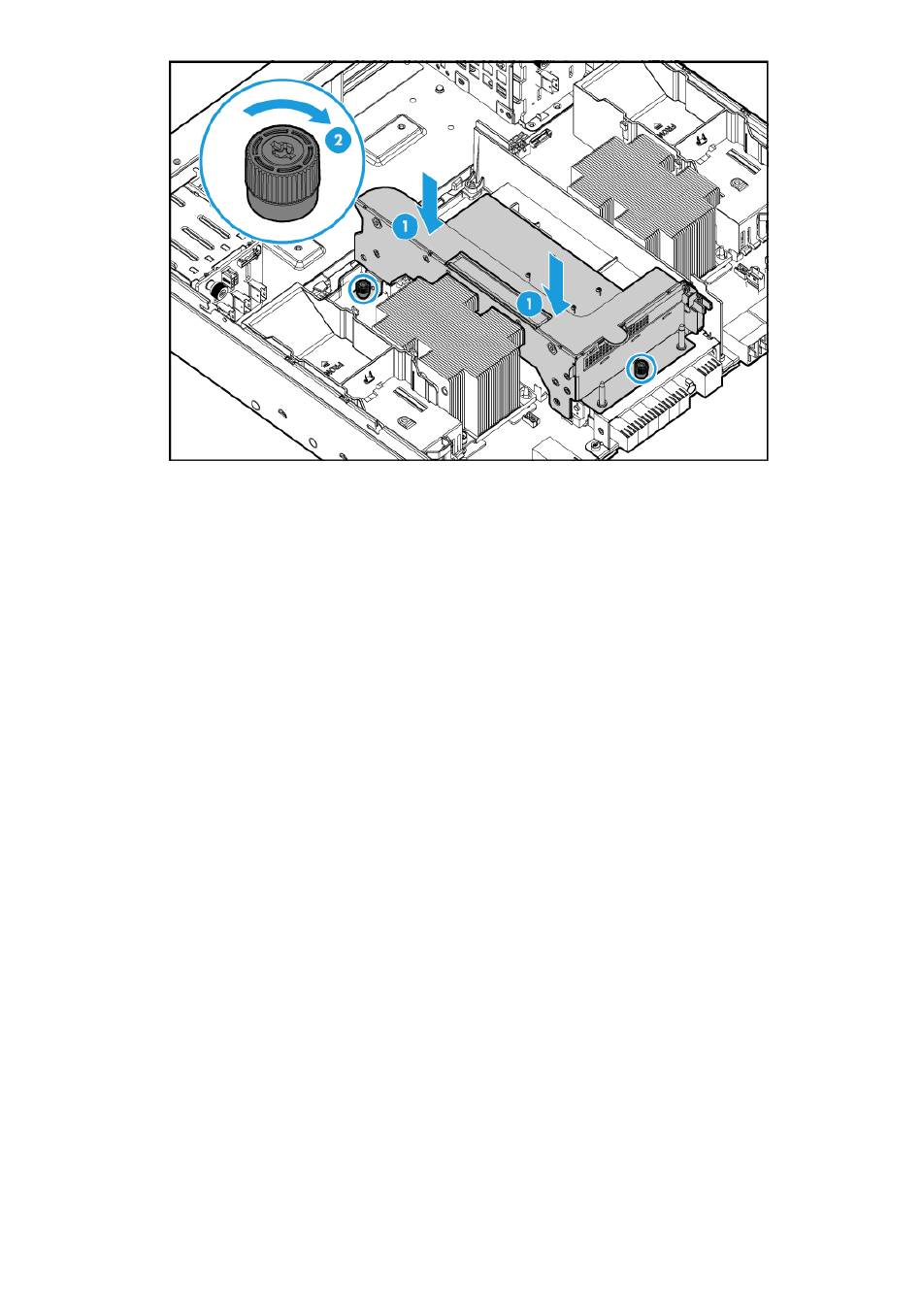

Figure 6-16 Installing the riser card to the compute module
c. Connect PCIe module cables, if any, to the drive backplane.
Install the compute module access panel. For more information, see
9.
module access
10. Install the compute module. For more information, see
11. Install the removed security bezel. For more information, see
12. Connect the power cord. For more information, see
13. Power on the server. For more information, see
Verifying the installation
Log in to HDM to verify that the PCIe module on the riser card is operating correctly. For more
information, see HDM online help.

Installing riser cards and PCIe modules at the server rear

The procedure is the same for installing RS-6*FHHL-G3-1 and RS-6*FHHL-G3-2 riser cards. This
section uses the RS-6*FHHL-G3-1 riser card as an example.
Procedure
Power off the server. For more information, see
1.
Remove the riser card blank. As shown in
2.
fingers reaching into the holes on the blank and pull the blank out.
panel."
"Installing a compute
"Connecting the power
"Powering on the
"Powering off the
Figure 6-17, hold the riser card blank with your
6-13
"Replacing a compute
module."
"Installing the security
cord."
server."
server."
bezel."
