Connecting the front I/O component cable from
the right chassis ear

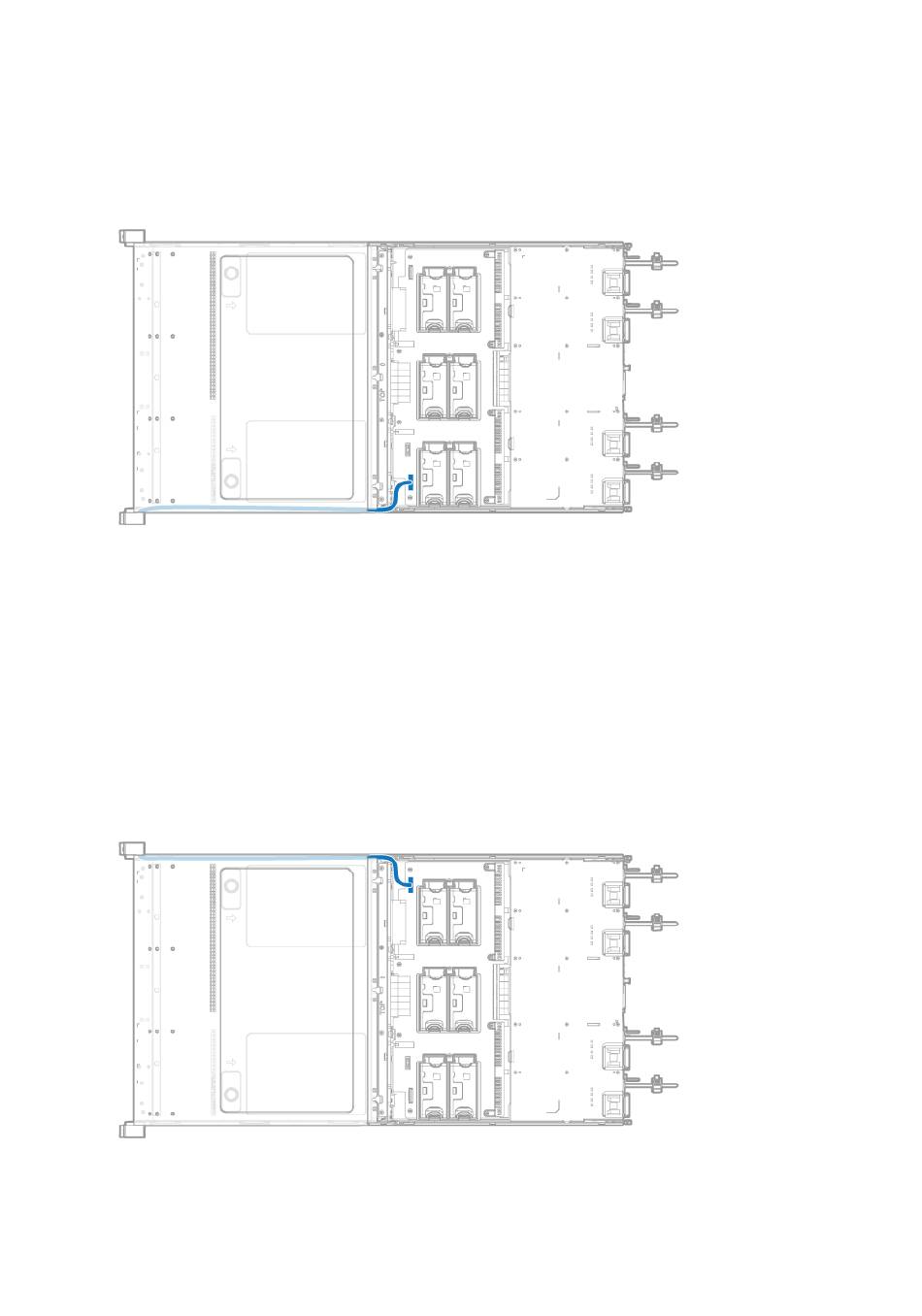

Figure 8-15 Connecting the front I/O component cable
Connecting the cable for the front VGA and USB
2.0 connectors on the left chassis ear
Figure 8-16 Connecting the cable for the front VGA and USB 2.0 connectors on the left
chassis ear
8-11
