Installing A Processor - H3C UniServer R6900 G3 User Manual

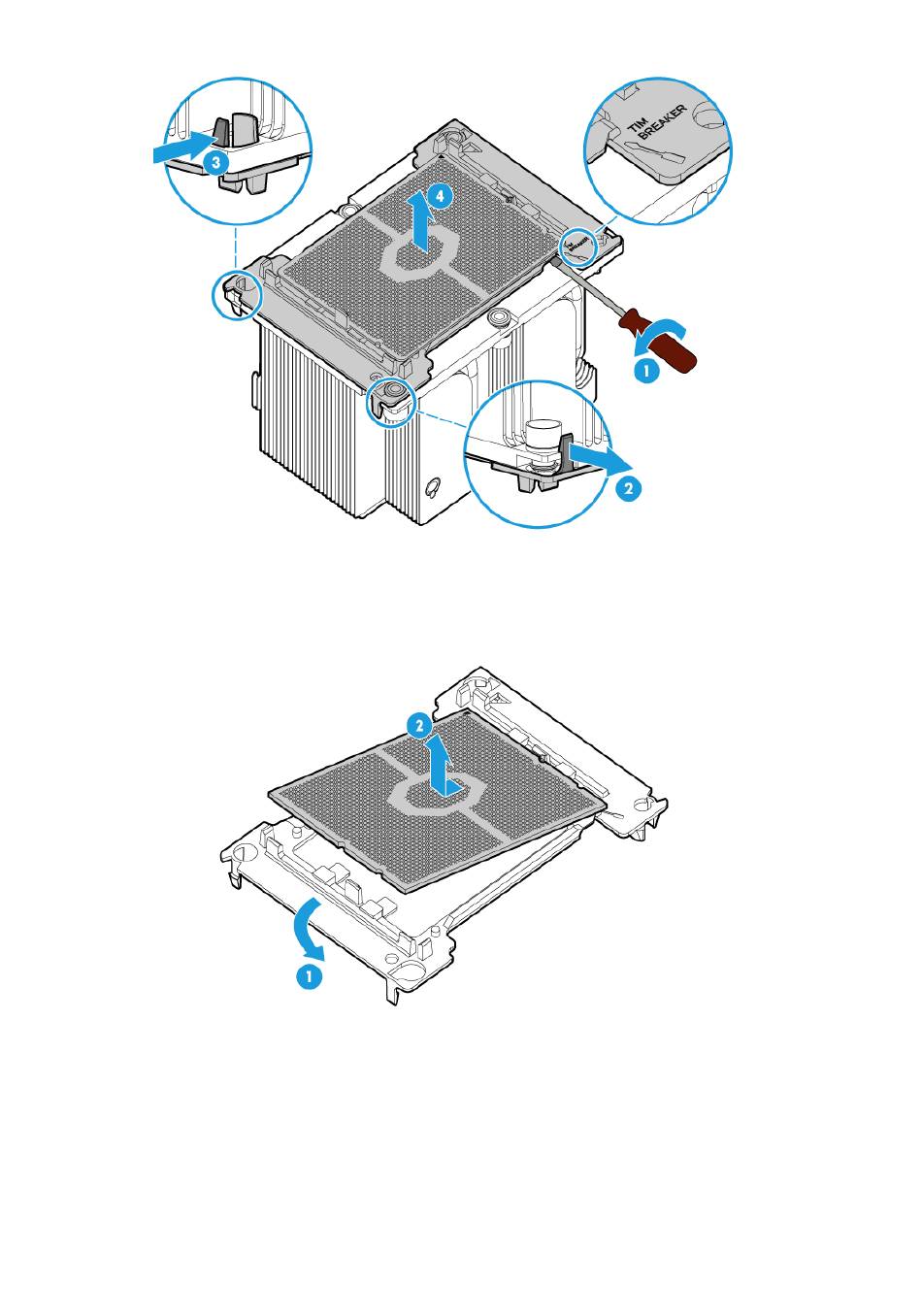

Figure 7-40 Removing the processor retaining bracket
Separate the processor from the retaining bracket with one hand pushing down and the other
9.
hand tilting the processor, as shown in
Figure 7-41 Separating the processor from the retaining bracket

Installing a processor

Install the processor onto the retaining bracket. For more information, see
1.
processors."
Smear thermal grease onto the processor:
2.
a. Clean the processor and heatsink with isopropanol wipes. Allow the isopropanol to
evaporate before continuing.
b. Use the thermal grease injector to inject 0.6 ml of thermal grease to the five dots on the
processor, 0.12 ml for each dot, as shown in
Figure 7-41.
Figure 7-42.
7-36
"Installing
