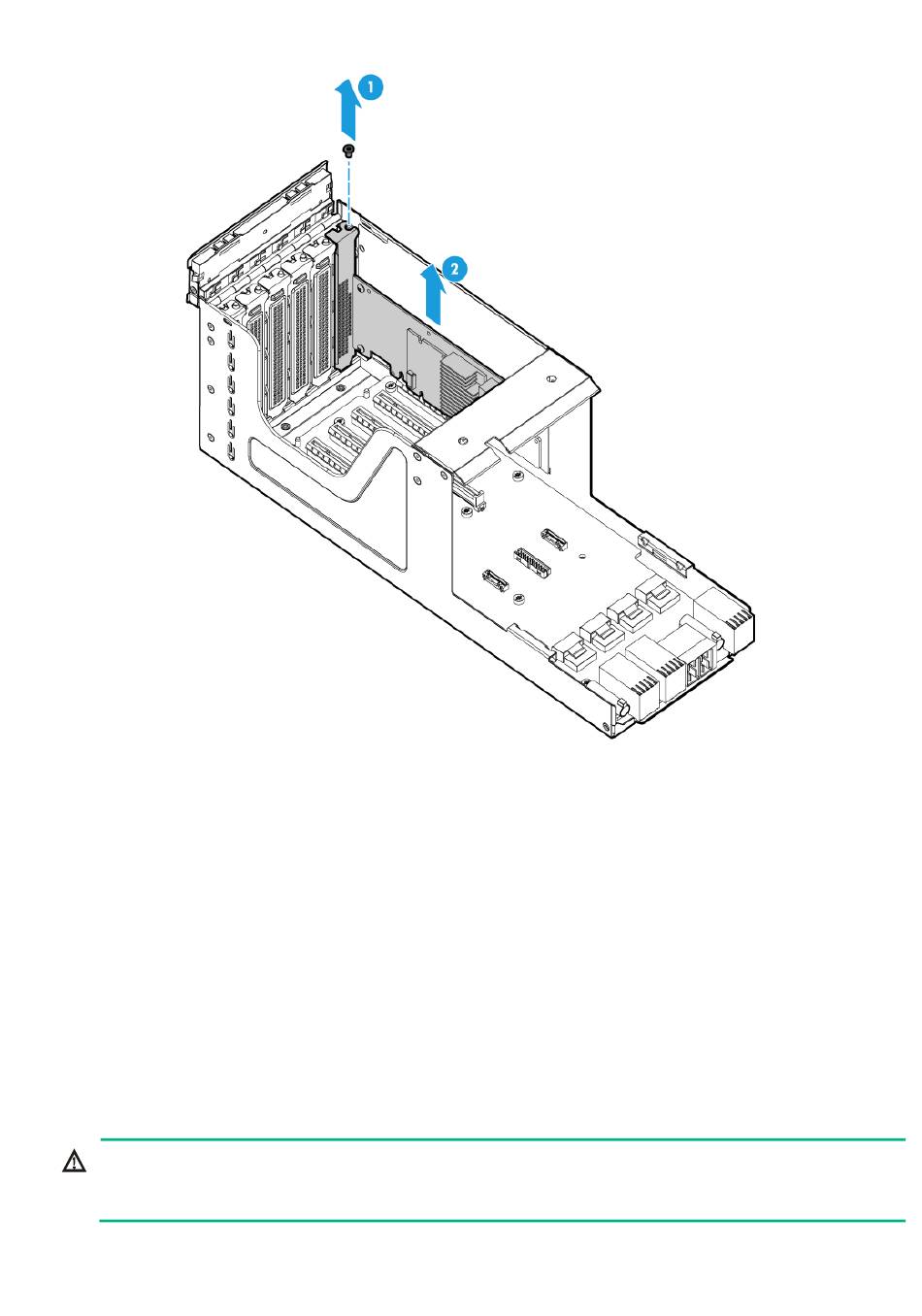

Figure 7-24 Removing a PCIe module in the riser card
Install a new PCIe module to the riser card. For more information, see
5.
PCIe modules at the server
Install the riser card. For more information, see
6.
server
(Optional.) Connect external cables to the riser card.
7.
Connect the power cord. For more information, see
8.
Power on the server. For more information, see
9.
Verifying the replacement
Log in to HDM to verify that the PCIe module in the riser card is operating correctly. For more
information, see HDM online help.

Replacing a storage controller

WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
rear."
rear."
"Installing riser cards and PCIe modules at the
"Connecting the power
"Powering on the
7-19
"Installing riser cards and
cord."
server."
