Item
Form factors of PCIe modules
Maximum power supplied per PCIe slot

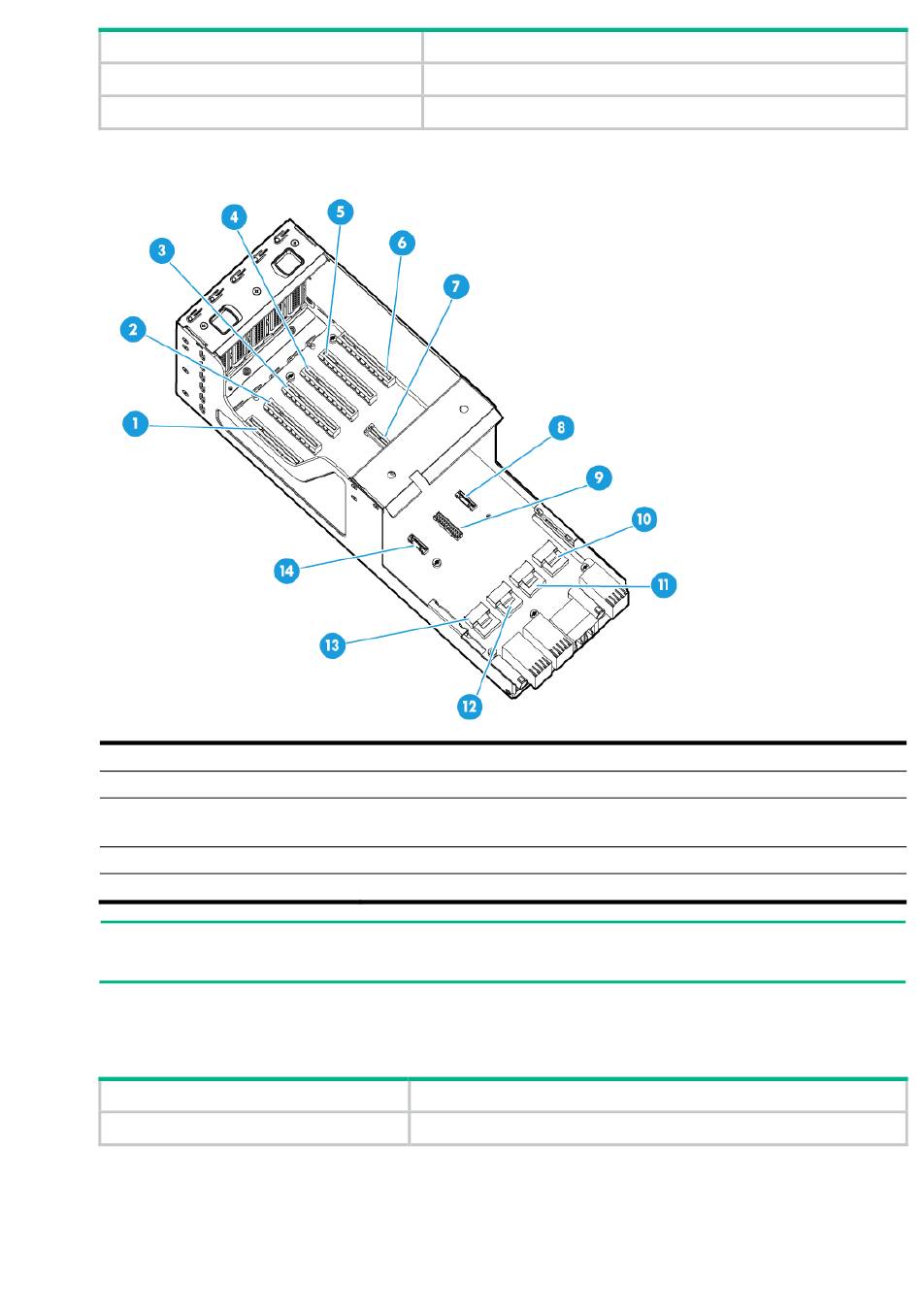

Figure 11-9 RS-6*FHHL-G3-1 riser card
(1) PCIe slot 1
(4) PCIe slot 4
(7) mLOM Ethernet adapter
connector
(10) SAS port B2 (×4 SAS ports)
(13) SAS port A1 (×4 SAS ports)
NOTE:
PCIe slot 4 is unavailable if an mLOM Ethernet adapter is installed.
RS-6*FHHL-G3-2
Item
PCIe riser bay
Specifications
FHHL
75 W
(2) PCIe slot 2
(5) PCIe slot 5
(8) Supercapacitor connector 2
(11) SAS port B1 (×4 SAS ports)
(14) Supercapacitor connector 1
Specifications
Bay 2 at the server rear
11-30
(3) PCIe slot 3
(6) PCIe slot 6
(9) NCSI connector
(12) SAS port A2 (×4 SAS ports)
