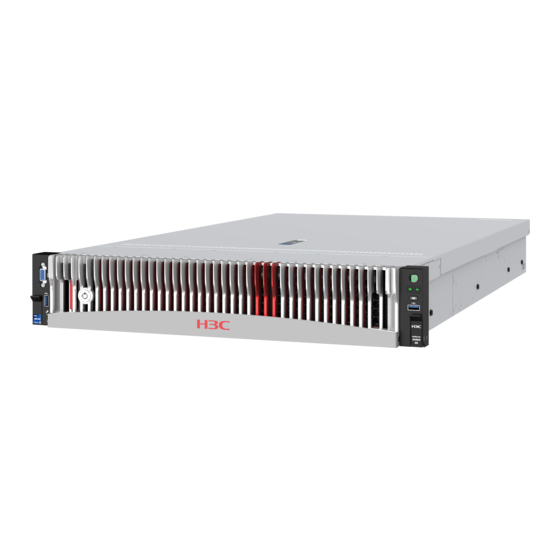

- Page 1 H3C UniServer R4900 G6 Server Processor Installation Quick Start New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W100-20231016...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Preface This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback. Audience This documentation is intended for: • Network planners. • Field technical support and servicing engineers. • Server administrators working with the Server. Conventions The following information describes the conventions used in the documentation.
- Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
- Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Content Overview ···························································································································································· 1 Processor kit ······················································································································································ 1 Preparing for installation ···································································································································· 1 Installing the processor ······································································································································ 3 Installing DIMMs··············································································································································· 10 Starting the server ············································································································································ 11... -
Page 7: Overview
The information in this document might differ from your product if it contains custom configuration options or features. The figures in this document are for illustration only. Processor kit The processor kit for an H3C UniServer R4900 G6 server includes the following components: • Processor •... - Page 8 Figure 1 Removing the access panel Remove the chassis air baffle. As shown in Figure 2, open the blue clips on the air baffle and lift the air baffle up to remove it from the chassis. Figure 2 Removing the chassis air baffle...
-
Page 9: Installing The Processor
Installing the processor CAUTION: • The server can use two or four processors. • To prevent damage to the pins on the processor socket, always install a cover over an empty processor socket. • Make sure all processors on a server are the same model. To install the processor: Remove the heatsink protective cover. - Page 10 For the processor to be installed correctly, make sure the ejector lever on the retaining bracket is closed as shown in Figure Figure 4 Installing the processor onto the heatsink Figure 5 Ejector lever status on the retaining bracket Install the processor onto the retaining bracket.
- Page 11 CAUTION: To avoid damage to a processor, always hold the processor by the edges. Never touch the gold contacts on the processor bottom. a. Tilt the processor, align the small triangle on the processor with the alignment triangle in the retaining bracket, and insert one edge of the processor into the retaining bracket. Place two thumbs against the heatsink, press the other end of the processor, and lower the processor.
- Page 12 Figure 7 Locking the processor Remove the processor socket cover. CAUTION: • Be careful not to touch the pins on the processor socket when you wear ESD gloves to remove the processor socket cover. • The pins on the processor socket are very fragile. Never touch the pins. Any damage to them might require system board replacement.
- Page 13 Figure 8 Removing the processor socket cover Install the heatsink onto the server. a. Align the alignment triangle on the retaining bracket with the cut-off corner of the processor socket and the pin holes in the heatsink with the guide pins on the processor socket. Lower down the heatsink on the processor socket.
- Page 14 Figure 9 Attaching the heatsink to the processor socket Figure 10 Gestures for holding the heatsink b. Press down the heatsink clips at the four corners to lock the heatsink in place.
- Page 15 Figure 11 Locking the heatsink c. Use a T30 Torx screwdriver to fasten the four captive screws on the heatsink. CAUTION: As a best practice, use a torque of 0.9 N·m (8 in-lbs) to avoid poor contact of the processor or damage to the pins on the processor socket.
-
Page 16: Installing Dimms
Installing DIMMs After you install a new processor, install DIMMs for it. For the DIMM installation guidelines, see the server user guide. To install a DIMM: Open the retaining clips of the DIMM slot. Figure 13 Opening the retaining clips of the DIMM slot Align the notch on the DIMM bottom edge with the key on the DIMM slot. -
Page 17: Starting The Server
Figure 14 Installing a DIMM Starting the server Install the chassis air baffle on the server. Align the pegs on both sides of the chassis with the notches in the air baffle, lower down the chassis air baffle, and place it into the chassis. Figure 15 Installing the chassis air baffle Install the access panel. - Page 18 b. Close the locking lever. The access panel will automatically slide toward the server front to secure itself into place. c. (Optional.) Lock the locking lever. Use a Phillips screwdriver to turn the screw on the lever 90 degree clockwise. Figure 16 Installing the access panel Install the server into the rack.
