Installing hardware options

If you are installing multiple hardware options, read their installation procedures and identify similar
steps to streamline the entire installation procedure.

Installing the security bezel

Press the right edge of the security bezel into the groove in the right chassis ear on the server,
1.
as shown by callout 1 in
Press the latch at the other end, close the security bezel, and then release the latch to secure
2.
the security bezel into place. See callouts 2 and 3 in
Insert the key provided with the bezel into the lock on the bezel and lock the security bezel, as
3.
shown by callout 4 in
CAUTION:
To avoid damage to the lock, hold down the key while you are turning the key.

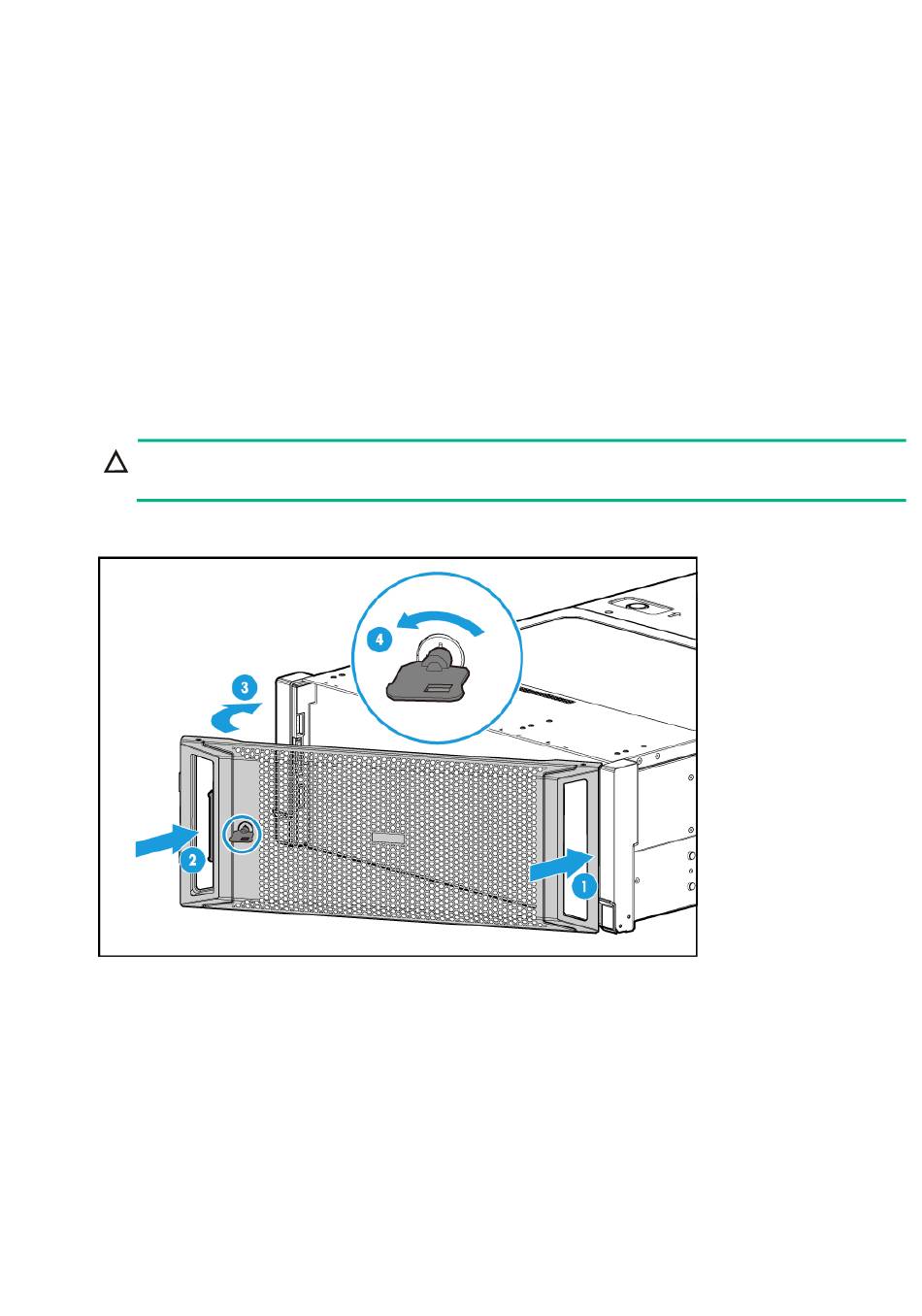

Figure 6-1 Installing the security bezel

Installing SAS/SATA drives

Guidelines
The drives are hot swappable.
If you are using the drives to create a RAID, follow these restrictions and guidelines:
•
To build a RAID (or logical drive) successfully, make sure all drives in the RAID are the same
type (HDDs or SSDs) and have the same connector type (SAS or SATA).
Figure 6-1.
Figure 6-1. Then, pull out the key and keep it safe.
6-1
Figure 6-1.
