H3C UniServer R6900 G3 User Manual page 54

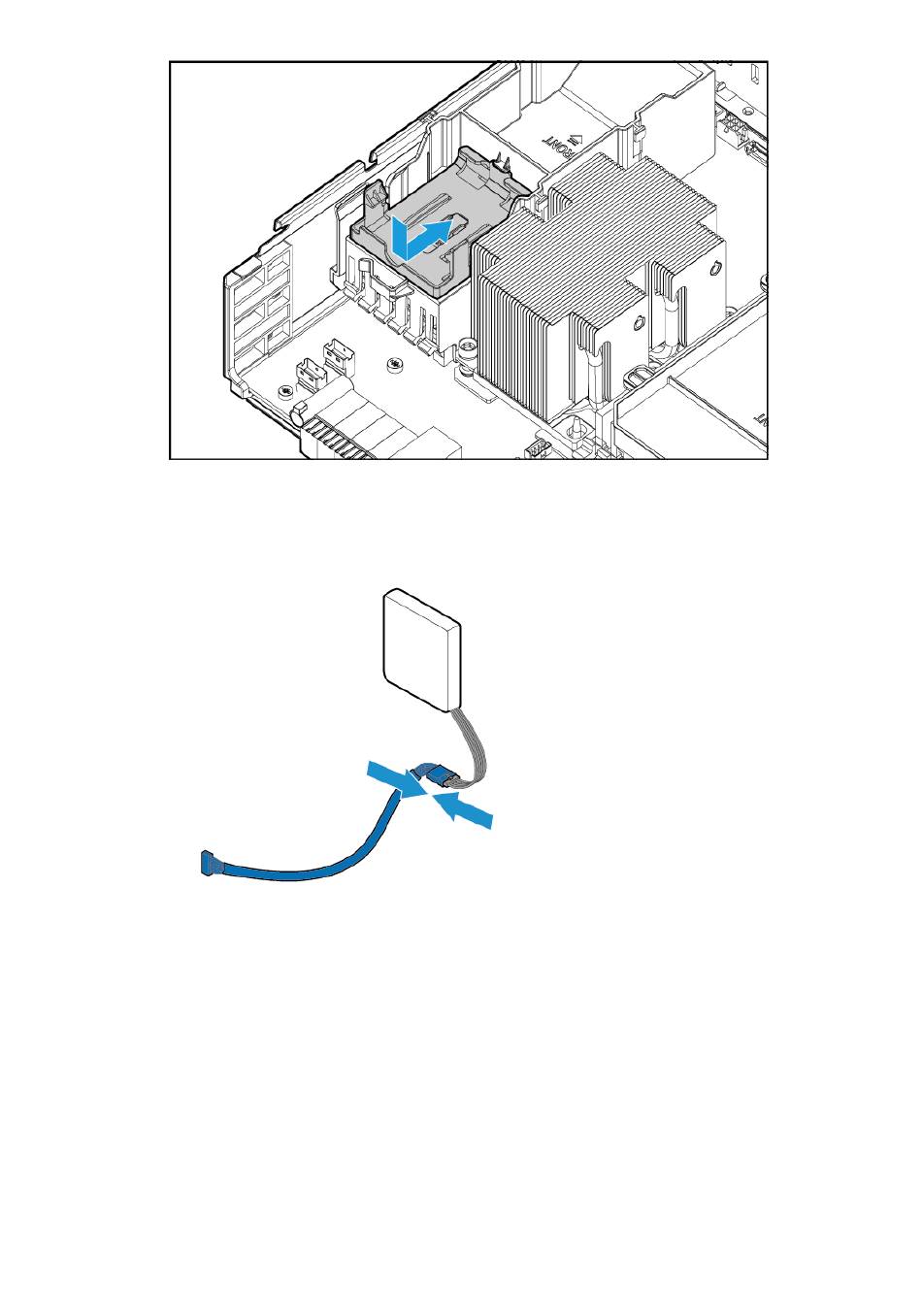

Figure 6-25 Installing the supercapacitor holder
e. Connect one end of the supercapacitor cable (P/N 0404A0VT) provided with the flash card
to the supercapacitor cable, as shown in
Figure 6-26 Connecting the supercapacitor cable
f. Insert the cableless end of the supercapacitor into the holder. Pull a clip on the holder, insert
the other end of the supercapacitor into the holder, and then release the clip, as shown in by
callouts 1, 2, and 3 in
g. Connect the other end of the supercapacitor cable to supercapacitor connector 1 on the
compute module main board, as shown by callout 4 in
Figure
Figure 6-27.
6-20
6-26.
Figure 6-27.
