10. Remove the supercapacitor, as shown in
a. Disconnect the cable between the main board and the supercapacitor, as shown by callout
1.
b. Pull the clip on the supercapacitor holder, take the supercapacitor out of the holder, and
then release the clip, as shown by callouts 2 and 3.

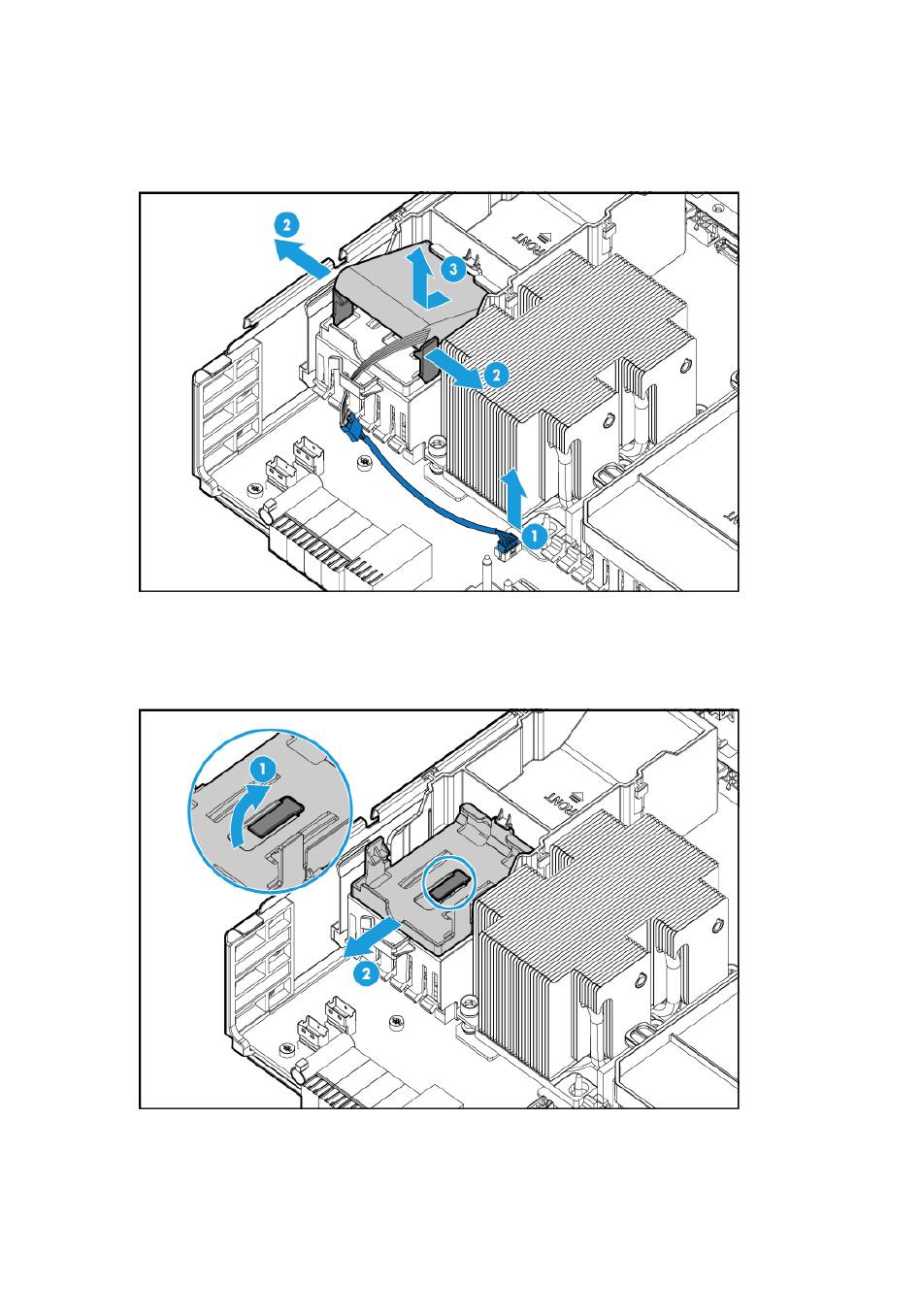

Figure 7-26 Removing the supercapacitor
11. Lift the retaining latch at the bottom of the supercapacitor holder, slide the holder to remove it,
and then release the retaining latch, as shown in
Figure 7-27 Removing the supercapacitor holder
12. Install a new power fail safeguard module. For more information, see
controllers and power fail safeguard
13. Connect the power cord. For more information, see
14. Power on the server. For more information, see
Figure 7-26.
Figure 7-27.
modules."
"Connecting the power
"Powering on the
7-22
"Installing storage
cord."
server."
