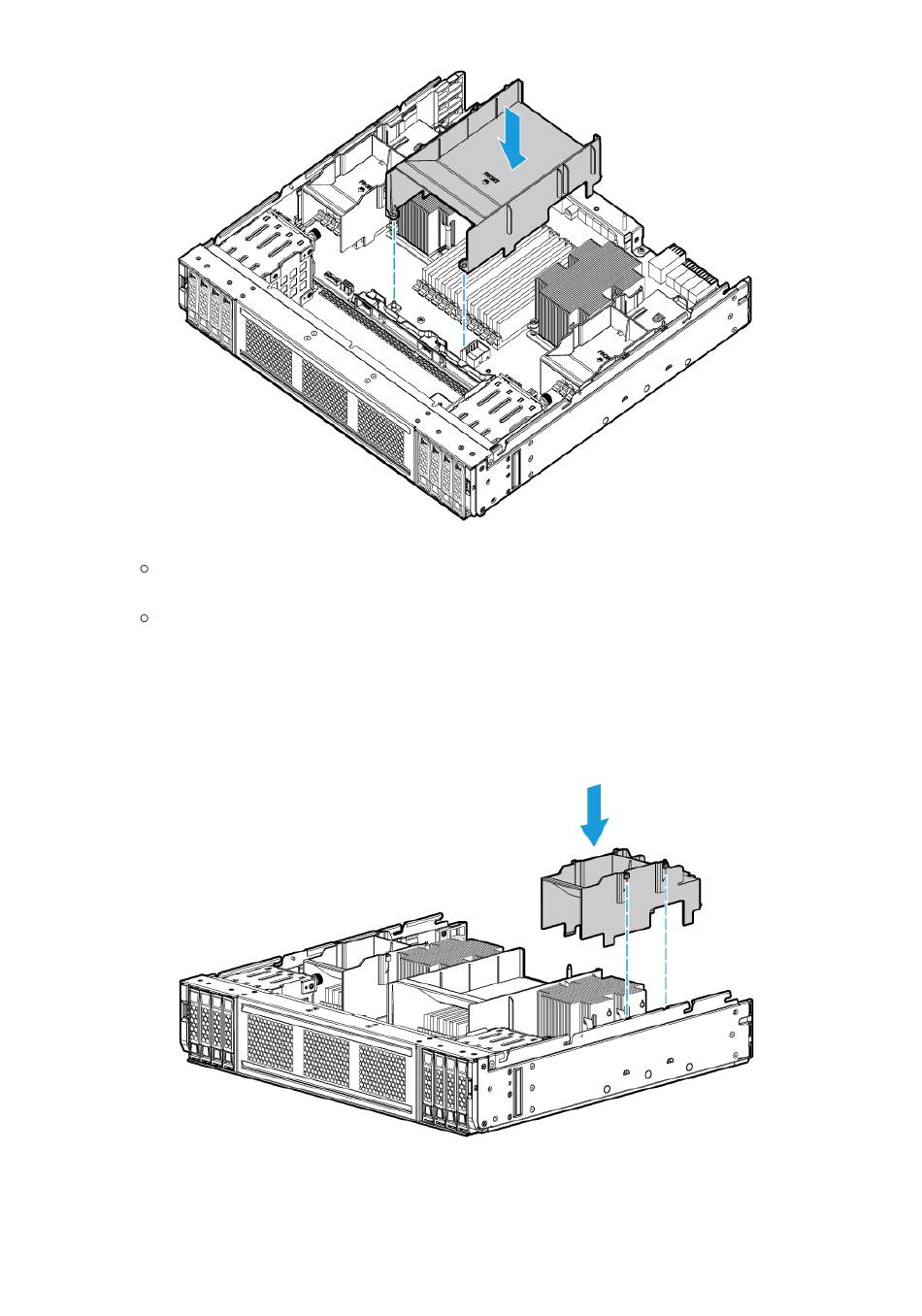

Figure 7-15 Installing the high mid air baffle
To install the low mid air baffle, see
to a compute
To install a left or right air baffle, place the air baffle in the compute module, as shown
in Figure 7-16, with the standouts on the air baffle aligned with the notches on the side of the
compute module.
The installation procedure is the same for the bilateral air baffles. The following figure uses
the right air baffle for illustration.
Figure 7-16 Installing the right air baffle
Install the removed riser cards, if any. For more information, see
8.
PCIe module."
Install the removed supercapacitor and supercapacitor holder. For more information, see
9.
"Installing storage controllers and power fail safeguard
"Installing the low mid air baffle or GPU module air baffle
module" for more information.
7-12
"Replacing a riser card and a
modules."
