Installing The Management Module; Replacing The Pdb - H3C UniServer R6900 G3 User Manual

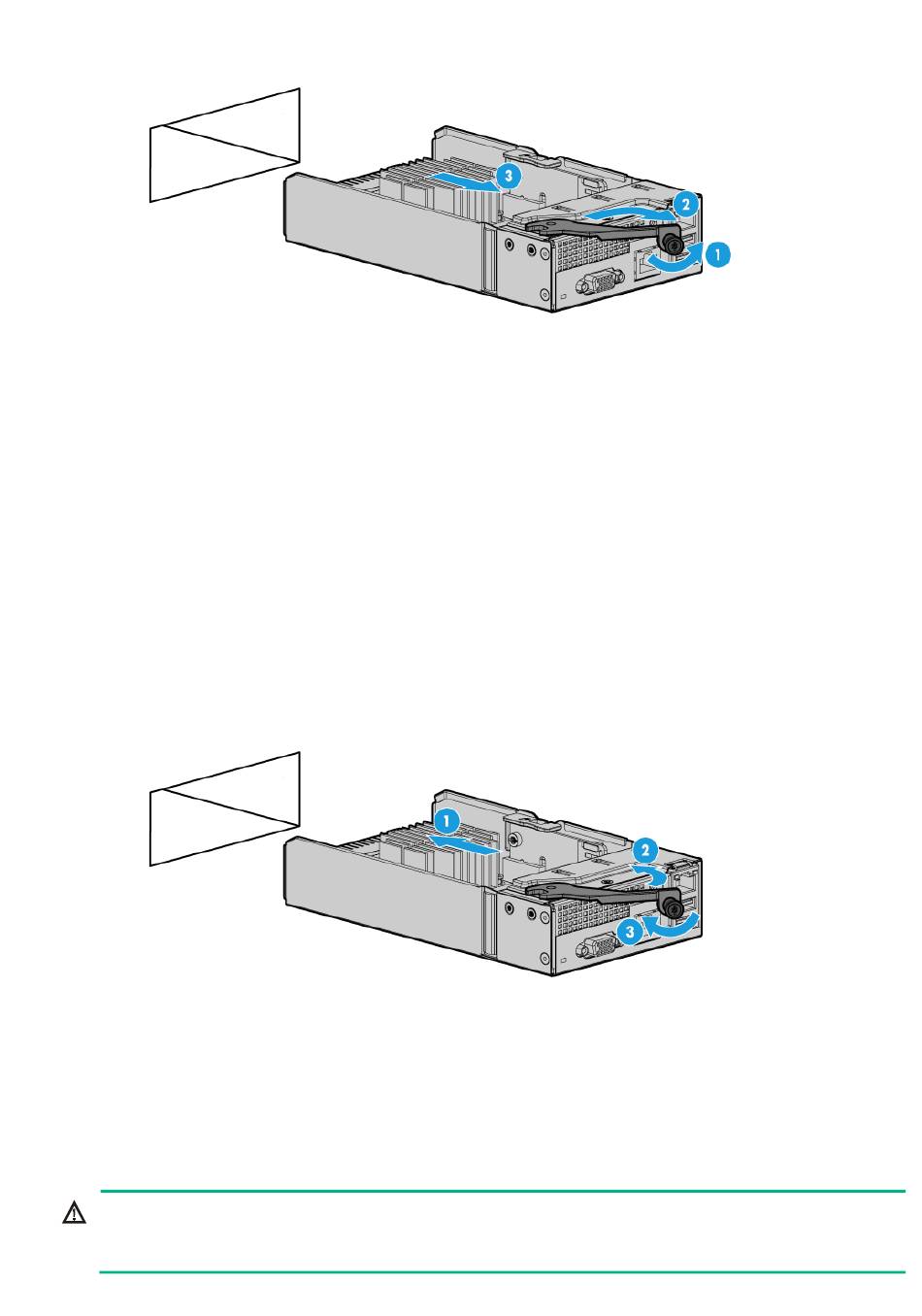

Figure 7-47 Removing the management module
Remove the dual SD card extended module. For more information, see
4.
SSD expander
Remove the NVMe VROC module. For more information, see
5.
module."

Installing the management module

Install the NVMe VROC module. For more information, see
1.
module."
Install the dual SD card extended module. For more information, see
2.
Install the TPM or TCM. For more information, see
3.
Push the management module into the slot, rotate the ejector lever inward, and then fasten the
4.
captive screw on the ejector lever to secure the module into place, as shown in
Figure 7-48 Installing the management module
Reconnect the cables to the management module.
5.
Connect the power cord. For more information, see
6.
Power on the server. For more information, see
7.

Replacing the PDB

WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
module."
"Installing and setting up a TCM or
"Connecting the power
"Powering on the
