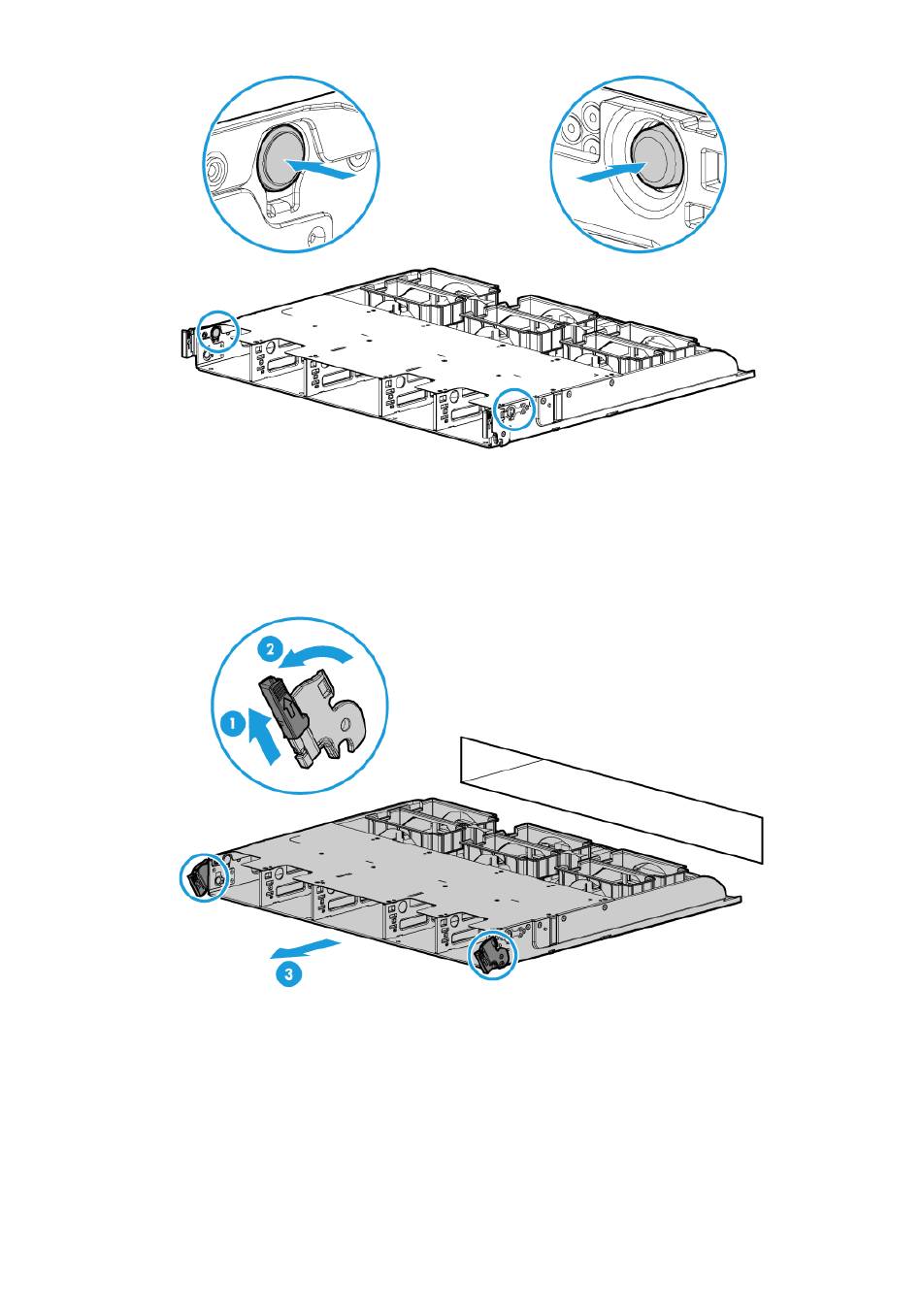

Figure 7-50 Unlocking the PDB
c. Pull up the extension handles on the ejector levers. Hold the handles and rotate the ejector
levers downward, as shown by callouts 1 and 2 in
d. Pull the PDB out of the slot, as shown by callout 3 in
Figure 7-51 Removing the PDB

Installing the PDB

Install a new PDB:
1.
a. Unlock the PDB. For more information, see
b. Push the PDB into the slot until you cannot push it further, as shown by callout 1 in
7-52.
c. Close the ejector levers, as shown by callout 2 in
Figure
Figure
"Removing the
Figure
7-44
7-51.
7-51.
PDB."
7-52.
Figure
