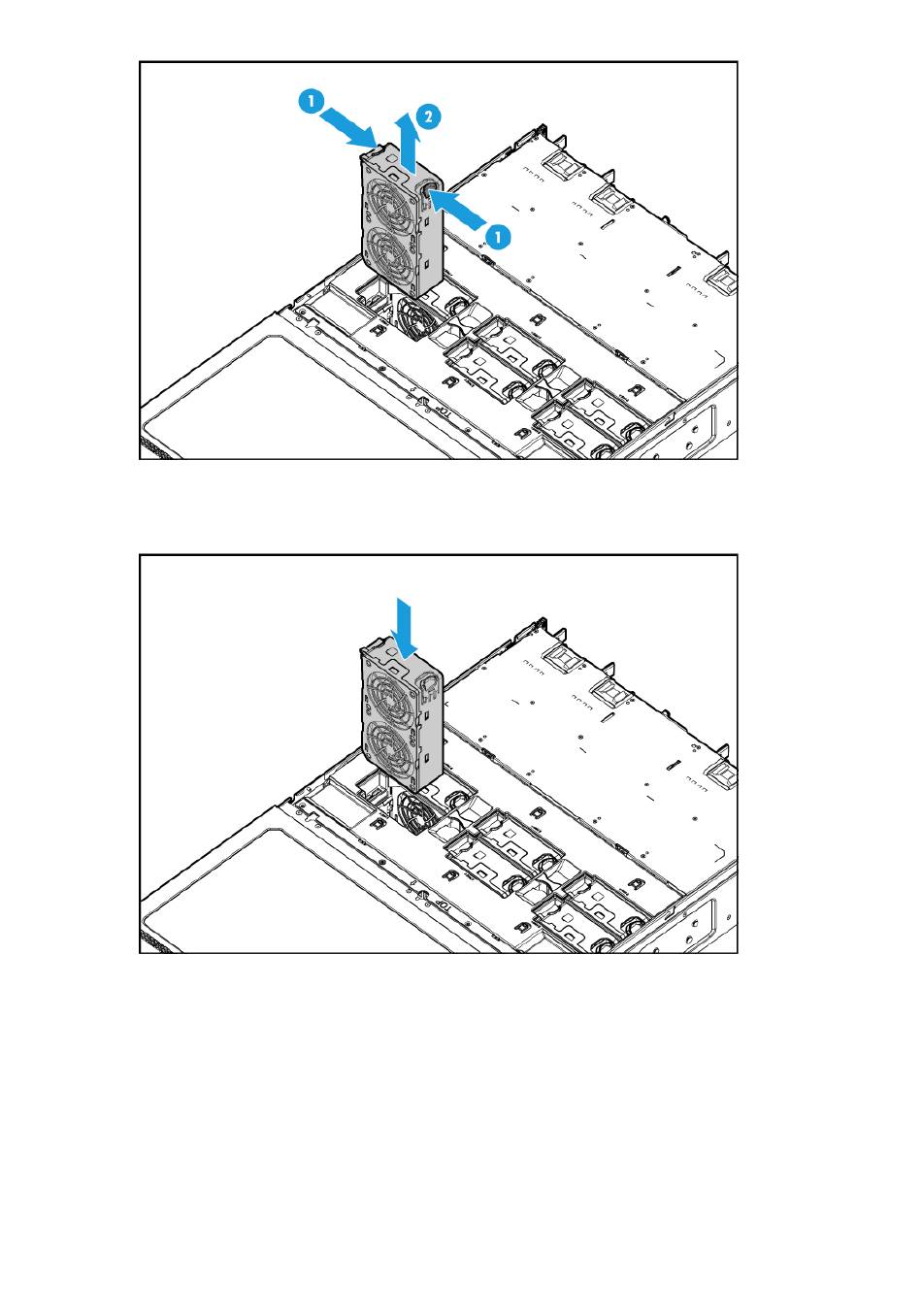

Figure 7-37 Removing a fan module
Install a new fan module. Insert the fan module into the slot, as shown in
5.
Figure 7-38 Installing a fan module
Install the chassis access panel. For more information, see
6.
panel."
Rack-mount the server. For more information, see
7.
Connect the power cord. For more information, see
8.
Power on the server. For more information, see
9.
Verifying the replacement
Log in to HDM to verify that the fan module is in a correct state. For more information, see HDM
online help.
"Installing the
"Connecting the power
"Powering on the
7-33
Figure
7-38.
"Replacing the chassis access
server."
cord."
server."
