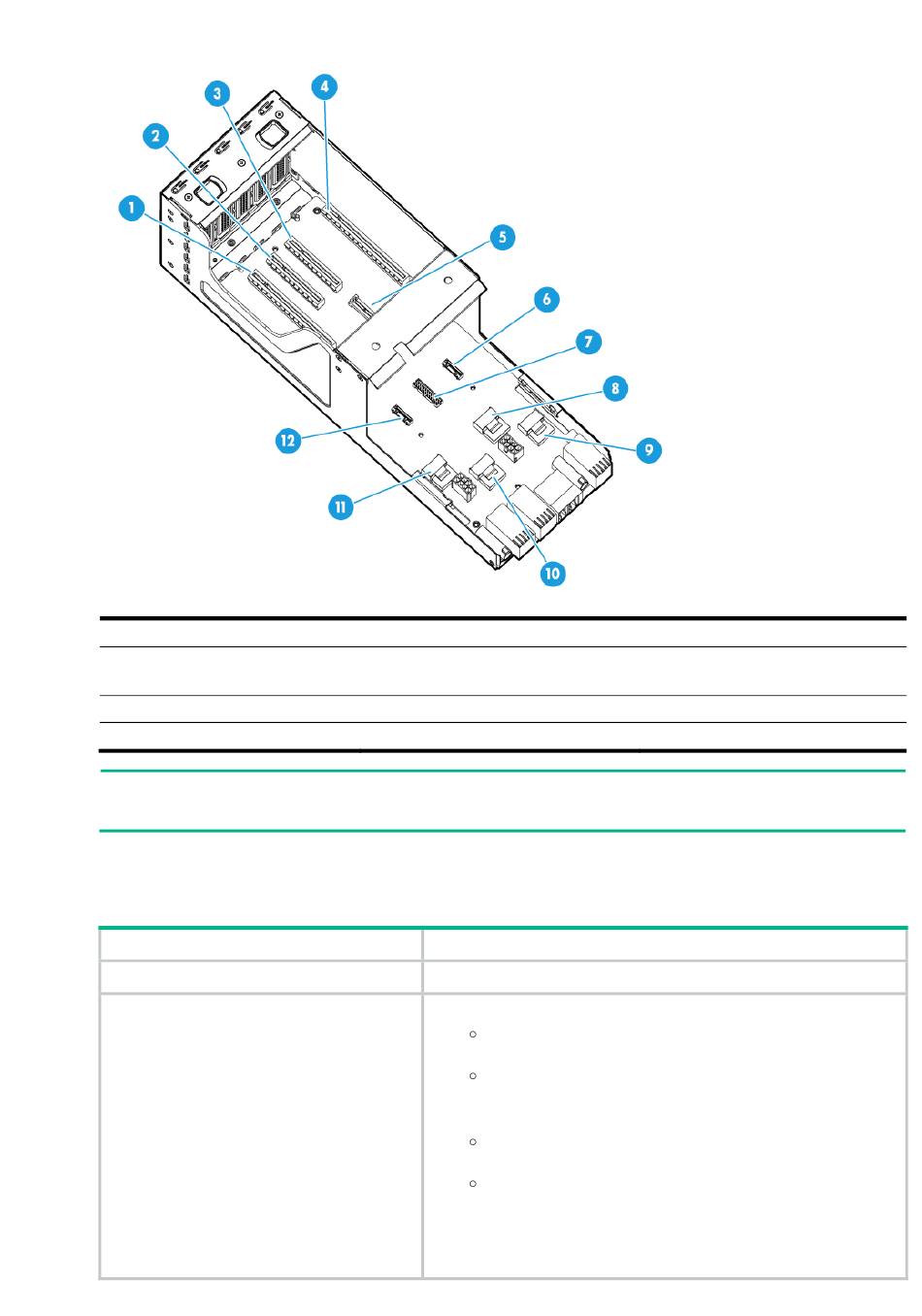

Figure 11-8 RS-4*FHHL-G3 riser card
(1) PCIe slot 2
(4) PCIe slot 6
(7) NCSI connector
(10) SAS port A2 (×4 SAS ports)
NOTE:
PCIe slot 4 is unavailable if an mLOM Ethernet adapter is installed.
RS-6*FHHL-G3-1
Item
PCIe riser bay
PCIe slots
(2) PCIe slot 3
(5) mLOM Ethernet adapter
connector
(8) SAS port B2 (×4 SAS ports)
(11) SAS port A1 (×4 SAS ports)
Specifications
Bay 1 or 3 at the server rear
•
PCIe riser bay 1:
Slots 1 through 3: PCIe3.0 ×8 (8, 4, 2, 1) for processor
1 in compute module 1
Slots 4 through 6: PCIe3.0 ×8 (8, 4, 2, 1) for processor
1 in compute module 2
•
PCIe riser bay 3:
Slots 1 through 3: PCIe3.0 ×8 (8, 4, 2, 1) for processor
2 in compute module 1
Slots 4 through 6: PCIe3.0 ×8 (8, 4, 2, 1) for processor
2 in compute module 2
NOTE:
The numbers in parentheses represent link widths.
11-29
(3) PCIe slot 4
(6) Supercapacitor connector 2
(9) SAS port B1 (×4 SAS ports)
(12) Supercapacitor connector 1
