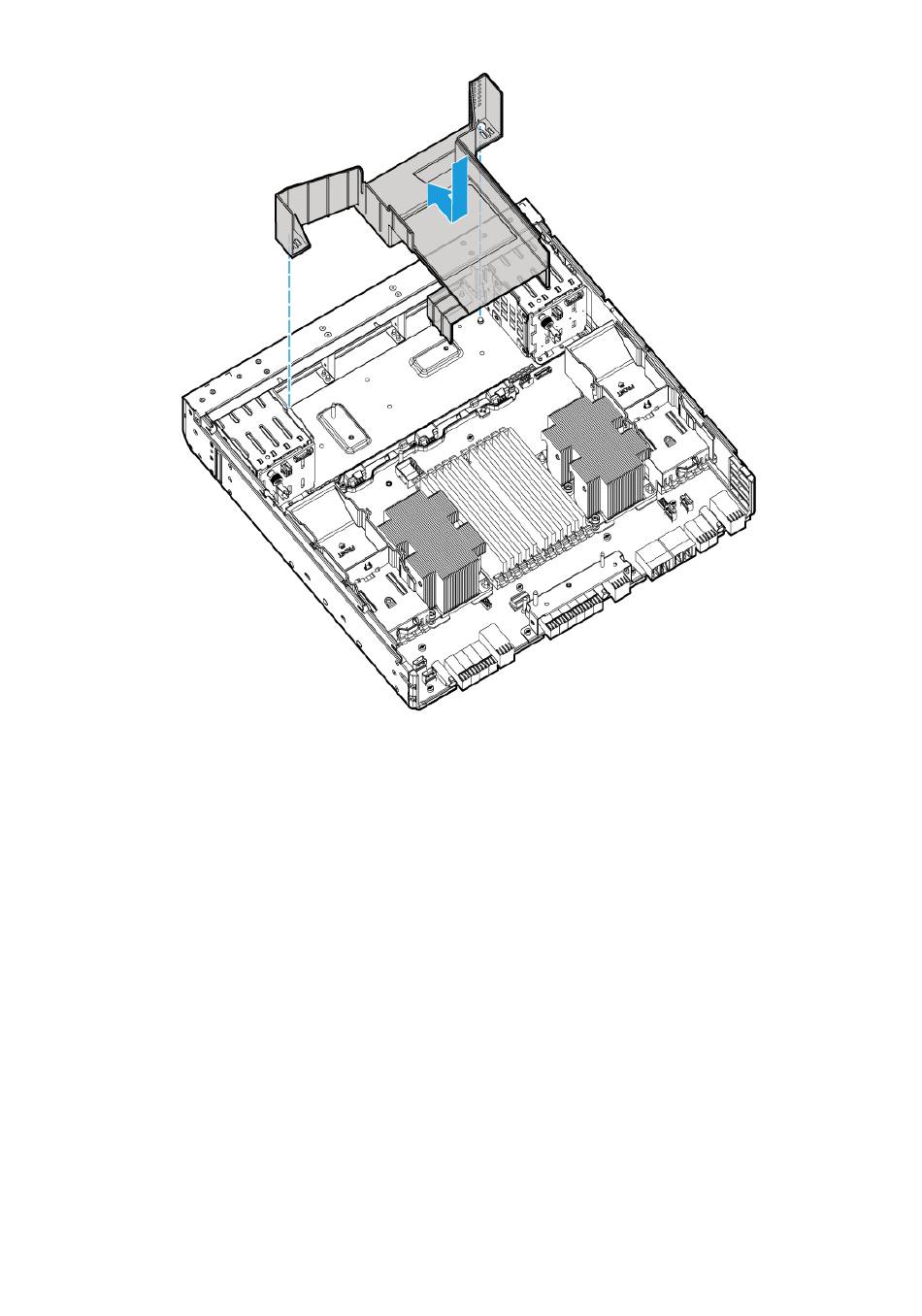

Figure 6-11 Installing the GPU module air baffle
Install a riser card and a PCIe module in the compute module. For more information, see
7.
"Installing a riser card and a PCIe module in a compute
Install the compute module access panel. For more information, see
8.
module access
Install the compute module. For more information, see
9.
10. Install the removed security bezel. For more information, see
11. Connect the power cord. For more information, see
12. Power on the server. For more information, see

Installing the GPU module air baffle to a rear riser card

The GPU module air baffle hinders GPU module installation. Make sure GPU modules have been
installed to the rear riser card before you install the GPU module air baffle.
To install the GPU module air baffle to a rear riser card:
Power off the server. For more information, see
1.
Disconnect external cables from the riser card, if the cables hinder air baffle installation.
2.
Remove the riser card. For more information, see
3.
the server
Remove the riser card air baffle.
4.
panel."
rear."
module."
"Installing a compute
"Connecting the power
"Powering on the
"Powering off the
"Replacing a riser card and PCIe module at
6-9
"Replacing a compute
module."
"Installing the security
cord."
server."
server."
bezel."
